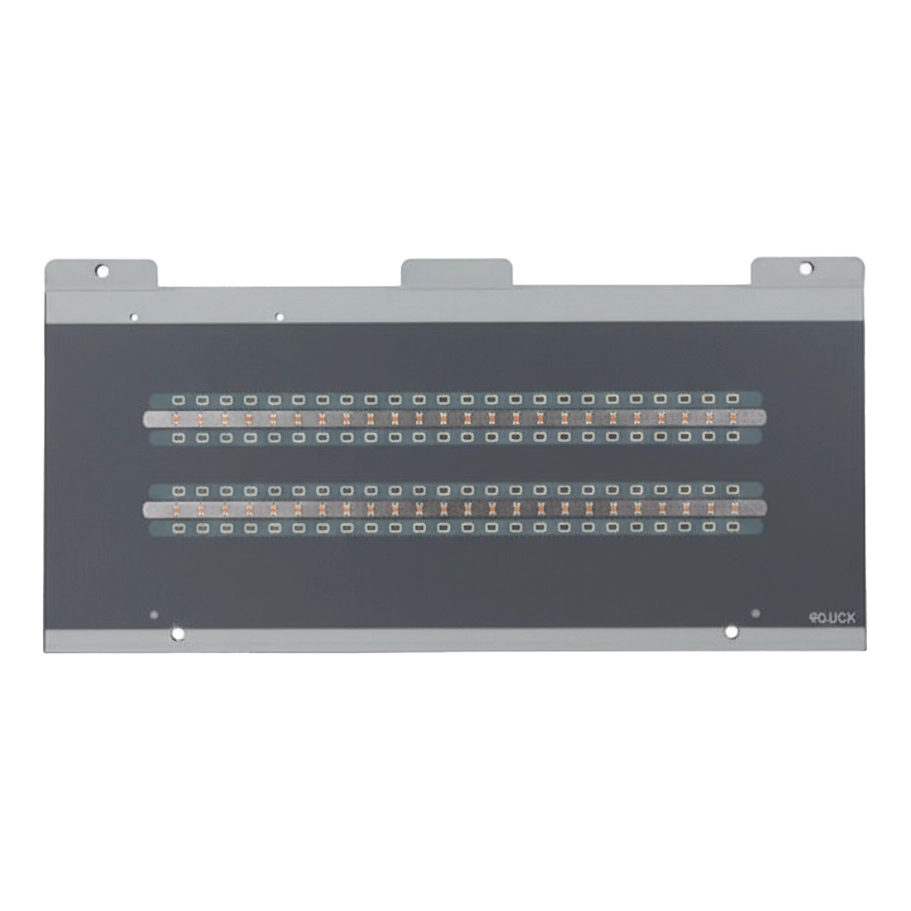

Advanced MxPro 5 | Zone LED Indicator Card | 50, 100 or 200 Zones
Summary
The Advanced 50, 100 and 200-Zone LED Cards are panel-mounted peripheral modules designed to enhance the MxPro 5 series control panels with comprehensive visual zone indication. These display cards provide individual LED indication for zones in fire condition by default, whilst offering full programmability to meet specific site requirements.
Representing the next generation in LED indication technology, these cards allow each LED to be fully programmed in accordance with cause-and-effect strategies. LEDs can be configured to illuminate upon fire, fault, isolation, output group activation and many other conditions, providing exceptional flexibility for system design. The cards fully support dynamic zoning on networked or larger stand-alone systems, enabling individual zonal LED indication at any location within the network.
Available in multiple configurations including red and yellow LED arrangements, or bi-colour LEDs with slide-in labels, these cards assist in quickly identifying the origin and nature of alarm conditions. The units can be factory fitted or retrofitted to existing installations, offering a cost-effective solution compared to ancillary hardware whilst maintaining full integration with MxPro 5 control panels.
Features
- Fully programmable LED indication for customised alarm display
- Available in 50, 100 and 200 zone configurations to suit installation size
- Compatible with full range of MxPro 5 control panels
- Supports dynamic zoning for networked and large stand-alone systems
- LEDs can indicate fire, fault, isolation, output group and other conditions
- Available with red and yellow LED arrangements or bi-colour LEDs
- Bi-colour LED versions include slide-in labels for easy identification
- Factory fitted or retrofit installation options
- 3-year warranty included as standard
- Cost effective alternative to ancillary hardware
- Supplied complete with door
- Available in medium, large and extended enclosure formats
- Column format options available for specific layout requirements
FAQ
Which MxPro 5 panels are compatible with the LED cards?
The LED cards are compatible with the complete MxPro 5 range including medium enclosures (MX-5101M, MX-5201, MX-5202), large enclosures (MX-5101L/D, MX-5201L/D, MX-5202L/D, MX-5401-5404 and D variants), and extended enclosures (MX-5401E-5404E, MX-5802-5808/FT models).
Can the LED cards be retrofitted to existing panels?
Yes, the LED cards can be either factory fitted during panel manufacture or retrofitted to existing MxPro 5 installations, providing flexibility for both new and upgrade projects.
What conditions can the LEDs be programmed to indicate?
The fully programmable LEDs can be configured to illuminate for fire conditions, faults, isolations, output group activations and many other system events according to your cause-and-effect programming strategy.
What LED colour options are available?
LED cards are available with all red LEDs for fire indication, all yellow LEDs for fault indication, mixed red and yellow configurations, or bi-colour LEDs with slide-in identification labels.
What is dynamic zoning and how does it work with these cards?
Dynamic zoning allows zones to be reassigned or grouped differently across networked systems. The LED cards fully support this functionality, enabling individual zonal LED indication at any location regardless of physical zone configuration.
Which enclosure size do I need for my installation?
Medium enclosures suit smaller 50-zone systems, large enclosures accommodate 50, 100 or 200 zones depending on the model, whilst extended enclosures are designed for larger networked installations with MX-5400E and MX-5800 series panels.
Specifications
- Product Range: MxPro 5 Zone LED Cards
- Zone Capacities Available: 50, 100 or 200 zones
- LED Colour Options: Red only, yellow only, red and yellow combination, or bi-colour
- Enclosure Types: Medium, large or extended
- Compatible Panel Series: MxPro 5
- Installation Method: Factory fitted or retrofit
- Dynamic Zoning Support: Yes
- LED Programming: Fully programmable via cause-and-effect
- Indication Types: Fire, fault, isolation, output group and custom conditions
- Warranty Period: 3 years as standard
- Supplied With: Door
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| Enclosure Size | Medium, Large, Extended |
| LEDs | 50xRed, 25xRed + 25xYellow, 50xYellow, 100xRed, 50xRed + 50xYellow, 100xYellow, 100xRed + 100xYellow |
