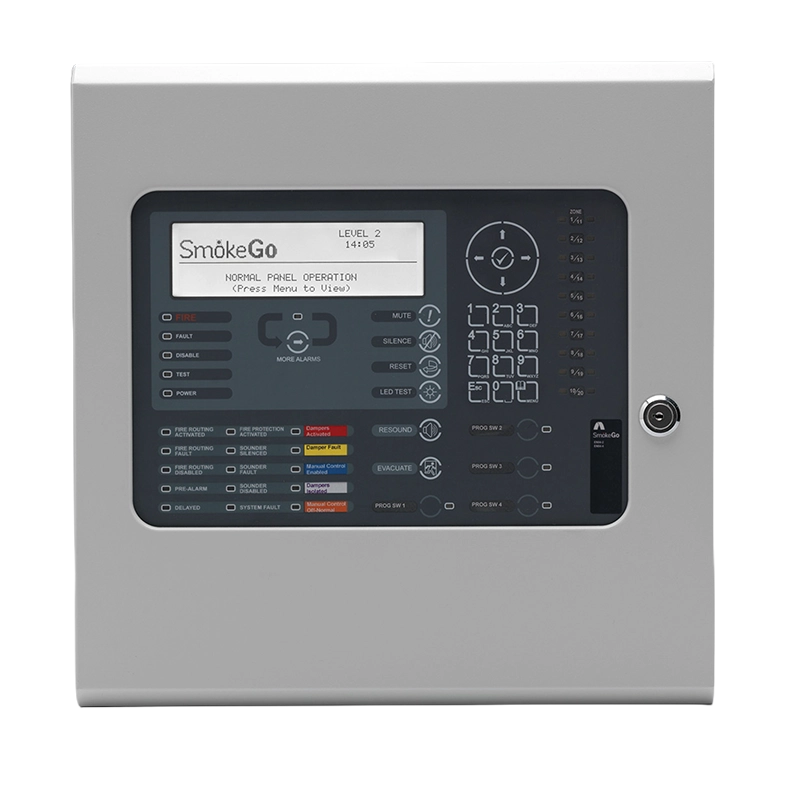

Advanced SmokeGo Control Panel | 1-Loop Smoke Control System | Apollo, Hochiki & AxisEn Protocol Options

FAQs

What is SmokeGo and how does it differ from traditional smoke control systems?

SmokeGo is Advanced’s dedicated smoke control system that provides complete automatic and manual control of smoke control fans and dampers directly from the fire alarm panel. Unlike traditional systems requiring complex data entry and specialised programming knowledge, SmokeGo uses an innovative 4-step configuration process with intuitive matrix programming. This approach replaces days of complex setup with a simple graphical interface featuring drop-down menus and keyboard shortcuts, reducing configuration time to minutes while maintaining full compliance with EN54 Parts 2 and 4, ISO 21927-9 and BS7346-8 standards.

How many smoke compartments and dampers can SmokeGo control?

Each SmokeGo system can control up to 500 smoke compartments and 2000 dampers. The system supports up to 200 fire zones per individual panel, expandable to 2000 zones across a networked system. With standard loop-powered I/O modules, SmokeGo eliminates the need for expensive specialist interface units while maintaining comprehensive control capabilities for even the largest installations.

What protocols does SmokeGo support?

SmokeGo supports three major fire detection protocols: Apollo (XP95 and Discovery), AxisEn and Hochiki ESP. Each protocol is available across the full range of SmokeGo panel configurations, ensuring compatibility with existing fire detection infrastructure while providing the flexibility to specify the most appropriate devices for your installation.

Can I control fans and dampers manually with SmokeGo?

Yes, SmokeGo offers comprehensive manual control options through integrated or standalone fan and damper switch cards. Each switch card can control up to six groups or individual fans and dampers, with up to 15 cards connectable per P-Bus. The system supports group manual controls for compartment-level override, independent purging panels for post-fire smoke clearance, and customizable graphic mimics using I/O 48 modules to provide firefighters with clear, intuitive manual control interfaces.

What is the 4-step configuration process?

SmokeGo’s market-leading 4-step configuration simplifies system setup: Step 1 involves defining smoke compartments and assigning fire detection zones with automatic detector-to-compartment mapping. Step 2 provides auto-configuration of fan and damper interfaces where the software automatically assigns special purposes and pre-configures inputs, outputs and feedback delays. Step 3 uses the unique matrix programming interface with graphical representations and keyboard shortcuts for rapid cause-and-effect setup. Step 4 offers flexible manual control configuration through integrated or standalone switch cards, eliminating traditional complex programming requirements.

Does SmokeGo support automatic testing of fans and dampers?

Yes, for dedicated smoke control systems where fans and dampers are rarely used, SmokeGo provides comprehensive automatic testing functionality. You can program tests to run weekly or monthly on specific days and times, with the system automatically staggering tests to ensure correct damper states before fan operation and prevent excessive current draw. Tests can be configured to run in groups to minimize building disturbance, and the system intelligently prevents testing during holidays or when the panel is not in normal automatic state, avoiding unnecessary engineer callout fees.

What is cascade operation and when would I use it?

Cascade operation allows SmokeGo to prioritise smoke containment or extraction in critical building areas during spreading fires. With cascade disabled (no cascade mode), the system only responds to the first smoke compartment in alarm, maintaining those fan and damper states regardless of subsequent alarms. With cascade enabled, the system can change fan and damper states according to pre-configured priorities as smoke spreads into different compartments, ensuring optimal smoke management throughout fire development while protecting the most critical areas first.

What are interlocks and why are they important?

Interlocks prevent fans from running until specified conditions are met, typically ensuring dampers are in correct positions before fan activation. This critical safety feature prevents over-pressurisation of ductwork that could cause system damage or failure. SmokeGo makes interlock configuration simple through its software interface, where you define which dampers must provide feedback confirmation before associated fans receive start commands, ensuring safe and effective smoke control system operation.

Is SmokeGo compatible with AdvancedLive?

Yes, SmokeGo panels are fully compatible with AdvancedLive, Advanced’s secure fire system management platform (available in UK and Ireland). AdvancedLive enables remote monitoring and control of SmokeGo systems from anywhere at any time, providing real-time notifications of events requiring attention and allowing essential fire system tasks to be carried out without site visits. For SmokeGo users specifically, AdvancedLive enables remote checking of fan and damper status, with additional smoke control functionality planned for future releases.

What enclosure sizes are available for SmokeGo panels?

SmokeGo is available in two enclosure sizes. The standard enclosure measures 345 x 345 x 85mm with 13 top and 8 rear cable entry knockouts, accommodating 24V batteries from 4Ah to 7Ah capacity. The large enclosure measures 475 x 450 x 120mm with 19 top and 11 rear knockouts, supporting 24V batteries from 4Ah to 18Ah for extended backup power requirements. Both enclosures are manufactured in steel with IP30 protection and RAL7035 finish.

Can SmokeGo be customized for specific project requirements?

Yes, Advanced’s AdSpecials team can design and manufacture fully customised SmokeGo panels, control interfaces and enclosures to meet unique project specifications. Customization ranges from simple color coordination to fully bespoke panel housings offering environmental protection and specialist control and indication. Custom graphic smoke control mimics can also be created using I/O 48 modules, providing firefighters with site-specific manual control interfaces tailored to building layouts and operational requirements.

What training and support is available for SmokeGo?

Advanced provides comprehensive training for all SmokeGo customers, available either in person at their Newcastle upon Tyne headquarters or online via Zoom, lasting approximately half a day. Training covers smoke control fundamentals, system types, the Advanced approach, device installation, the 4-step configuration process, programming scenarios, customisation options and AdvancedLive integration. Technical support is available free of charge to all direct customers via telephone and online support tickets, consistently rated as excellent. The company also provides extensive online resources including how-to videos, datasheets and detailed product manuals.
