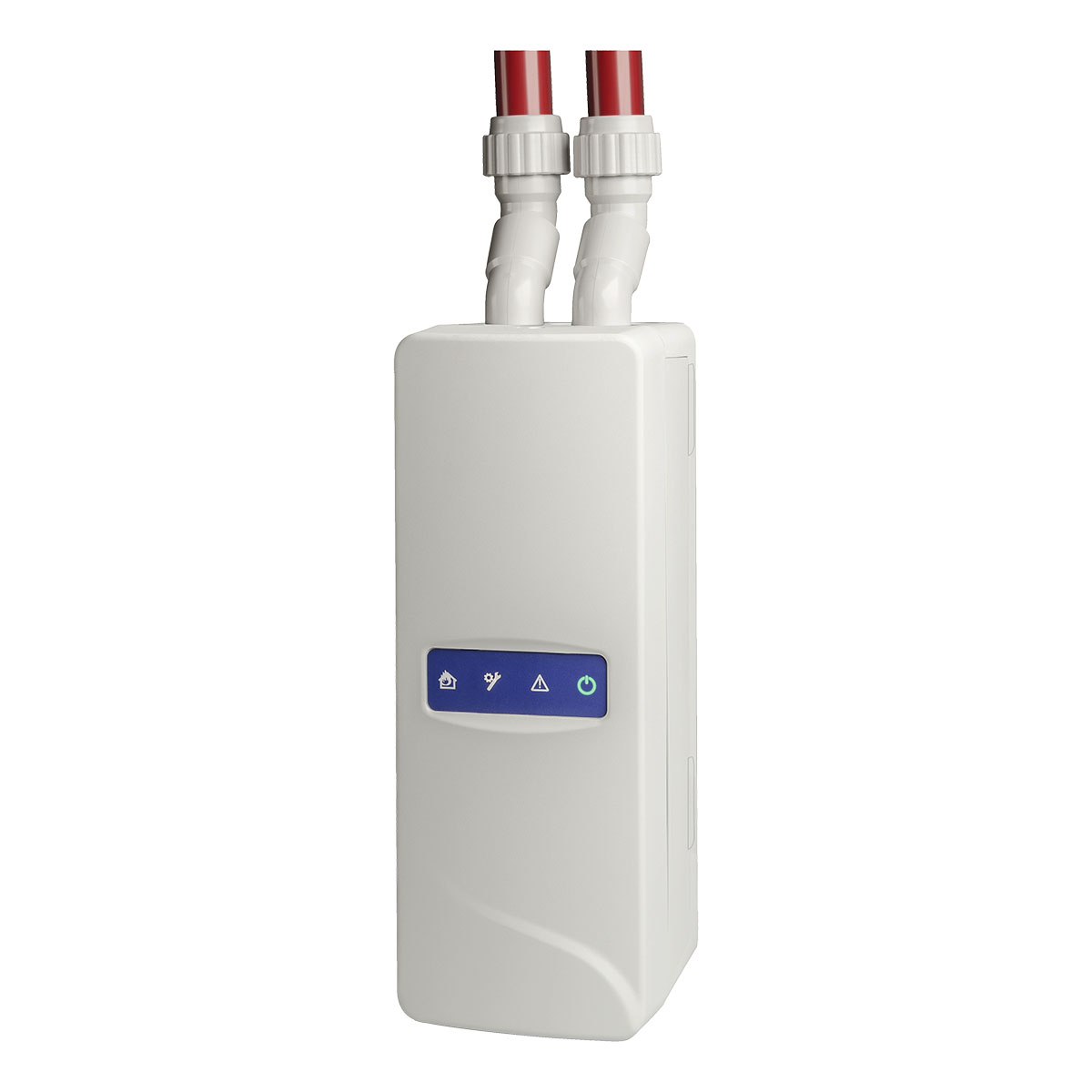

AirSense ModuLaser Detector Module
£682.45 (inc VAT: £818.94)
Summary
The AirSense ModuLaser Detector Module is a scalable aspirating smoke detection solution designed to simplify installation and maintenance while extending the capabilities of traditional air sampling detectors. The system consists of display and detector modules, which communicate via RS-485 interconnections. Each detector module is a fully self-contained unit that aspirates sampled air from the protected area, analyzes it, and determines if a pre-alarm or alarm should be raised based on the presence of smoke particles.
The modular nature of ModuLaser allows for maintenance on a module-by-module basis, reducing the risk of unprotected areas during maintenance. This makes ModuLaser ideal for hostile environments due to its advanced features that resist dust and dirt, providing early warning capabilities without nuisance alarms.
Features
- Modular design for efficient zoning
- Zoned aspirating smoke detection
- Simplified installation with docking station
- Quick fit pipe adaptor system
- Universal status LEDs
Specifications
- Physical Dimensions : 110.5 x 133.5 x 300 mm (4.35 x 5.25 x 11.8 in)
- Status Indication : LED’s
- Alarm Levels : 4 (Aux, Pre-alarm, Alarm and Alarm 2)
- Event Log : 20,000 events per module
- RS485 Support : Yes (SenseNET and SenseNET+)
- Net Weight : Display Module: 1.18 Kg (2.6 lb.), Detector Module: 1.57 Kg (3.46 lb.)
- Connectivity : USB (x2), IP and APIC on Display Module
- Colour : Cream
- Mounting Type : Surface mount
- Cable Entries : 2 at the bottom, 2 at the rear, 2 at the top on Detector Module, and 3 at the top on the Display Module
- Operating Voltage : 18 to 30 VDC
- Current Consumption : Display Module (at 24 VDC): 204 mA – Minimum Display Module, 232 mA – Standard Display Module, 232 mA – Command Display Module; Detector Module (at 24 VDC): 260 mA – fan speed 1, 380 mA – fan speed 6 (default speed), 940 mA – fan speed 16
- Cable Entry Size : 20 mm (0.5 in) – top and bottom
- Detector Module Orientation : Vertical (0 deg or 180 deg)
- Operating Temperature : Equipment: -20 to +60 °C (-4 to +140 °F), Sampled air: -20 to +60 °C (-4 to +140 °F)
- Detection Principle : Laser light scattering mass detection and particle evaluation
- Relative Humidity : 0 to 95% noncondensing
- Sensitivity : 0.002 %obs/m to 25 %obs/m (0.0006 %obs/ft to 7.62 %obs/ft)
- Environment : Indoor
- IP Rating : IP40
- Particle Sensitivity Range : 0.003 to 10 microns
- Sampling Pipe Length : Up to 250 m (820 ft.) combined per detector module
- Regulatory Compliance : REACH, RoHS
- Certification : BOSEC, CPR, CSIRO, EN54-20, LPCB, VdS
- Quantity Sampling Holes : Up to 20 – Class A per detector module, Up to 40 – Class B per detector module, Up to 50 – Class C per detector module
- Chart Recorder Sampling Period : Adjustable between 1s and 60 s
- Capacity : 1 month @ 1s / Up to 5 years @ 60 s
- Inlet Size : 27 or 25 mm (1.06 or 0.98 in) outer diameter
- Inlet Location : Top or bottom
- Exhaust Size : 27 or 25 mm (1.06 or 0.98 in) outer diameter
- Exhaust Location : Top or bottom
- Inlet Quantity : 1 per detector module
- Input Quantity : 2 per module
- Input Type and Rating : Supervised
- Termination : 15 KΩ 5% 1/4 W
- Programmable : Yes
- Output Quantity : 3 per module
- Output Type and Rating : Voltage free (contact rating 2 A at 30 VDC / NO/NC/C)
- Programmable : Yes
Downloads
- Datasheet (Adobe PDF)
