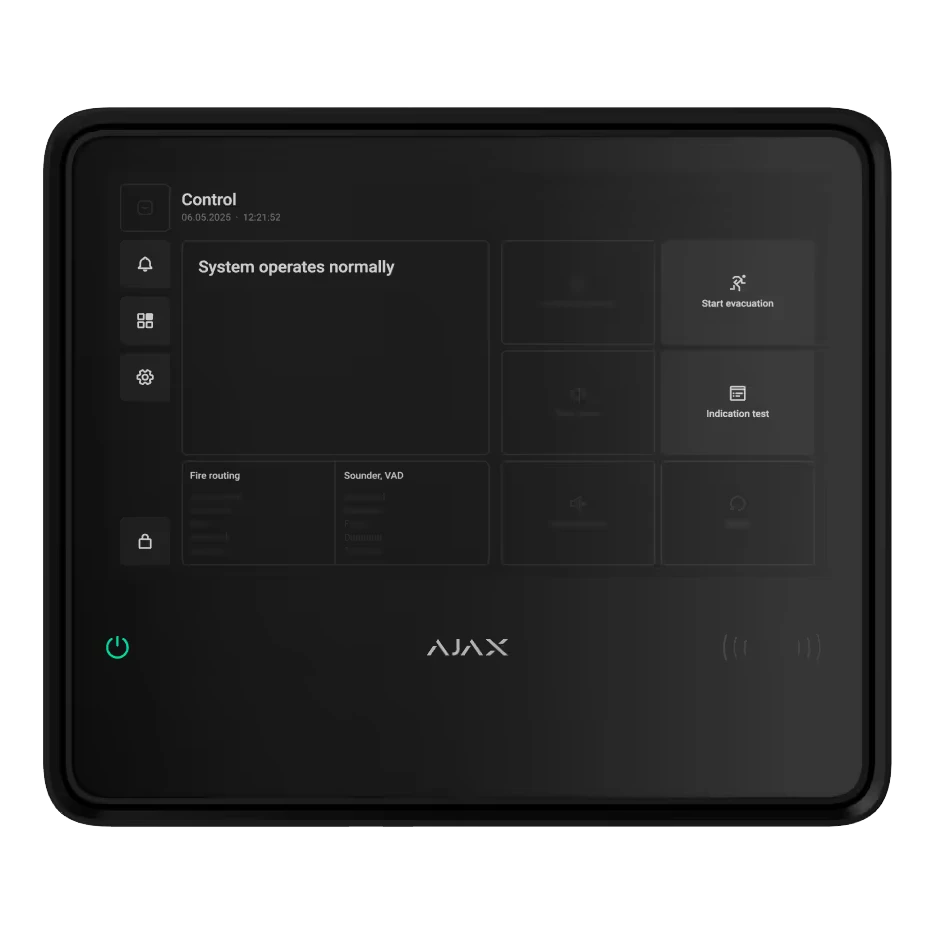

Ajax EN54 Fire Hub Jeweller
Summary
The Ajax EN54 Fire Hub Jeweller represents a new generation of fire alarm control and indicating equipment, designed to simplify fire safety system management without compromising on compliance or functionality. This wireless CIE combines the reliability of EN54-certified fire alarm capabilities with Ajax’s innovative wireless technology, creating an all-in-one solution for comprehensive building security.
Built around an intuitive large touchscreen interface, the Fire Hub Jeweller eliminates the complexity typically associated with fire alarm system management. The device comes with all necessary EN54-25 certified communicators built-in, enabling quick deployment without the need for additional hardware or complicated programming. Its wireless architecture supports up to 200 Ajax devices across multiple zones, making it suitable for both commercial and municipal installations.
What sets this system apart is its unique visual verification capability through integration with Ajax MotionCam detectors and security cameras. This powerful feature allows facility staff to quickly assess alarm situations, reducing false alarms and enabling faster, more informed emergency response decisions.
Features
- EN54-2, EN54-4, EN54-13, EN54-21, EN54-25 and EN50131 Grade 2 compliance
- Large capacitive touchscreen with intuitive interface
- Supports up to 200 Ajax wireless devices across 40 fire zones
- Built-in multiple communication channels: Ethernet, Wi-Fi, and dual 2G/4G cellular
- Visual alarm verification through Ajax MotionCam detectors and security cameras
- 40 LED indicators for fire zones plus 6 system status indicators
- Built-in 60 dB buzzer with sound notifications
- Event log storing up to 5,000 chronological entries
- Remote system management via Ajax mobile and desktop apps
- Automatic communication channel switching for enhanced reliability
- QR code scanning for quick device installation
- Hot-swappable internal battery without system shutdown
- Tamper protection and sabotage detection
- Up to 200 personal access codes with three user levels
- Contactless access via Pass cards and Tag key fobs
- Communication range up to 1,800m in open space
- IP20 protection rating with operating temperature range -10°C to +40°C
FAQs
What fire safety standards does the EN54 Fire Hub Jeweller comply with?
The device is fully compliant with EN54-2, EN54-4, EN54-13, EN54-21, and EN54-25 standards, as well as EN50131 Grade 2 for intrusion protection. It includes all necessary certified communicators built-in.
How many devices can the system support?
The Fire Hub Jeweller can support up to 200 Ajax devices across a maximum of 40 fire zones, with additional capacity for 80 rooms, 25 security groups, and 64 automation scenarios.
What communication options are available?
The system includes multiple built-in communication channels: Ethernet (8P8C socket up to 100 Mbps), Wi-Fi 802.11 b/g/n, and dual 2G/4G cellular connectivity with automatic switching between channels for maximum reliability.
Can I verify alarms visually before responding?
Yes, the system supports visual verification of alarms through integration with Ajax MotionCam detectors and security cameras. This helps quickly assess situations and reduces unnecessary emergency dispatches.
Is the system difficult to install and maintain?
No, the system is designed for hassle-free installation with no enclosure disassembly required. Devices can be added via QR code scanning, and maintenance can be performed through Ajax apps with automatic synchronisation to a CMS.
What happens if the main power supply fails?
The system includes backup power supply options with Li-Ion 2 V battery capacity or EN54 Internal Battery options. The internal battery can be hot-swapped without shutting down the CIE.
Can the system be managed remotely?
Yes, authorised users can control and manage the system remotely via Ajax mobile and desktop apps, or directly through the CIE’s touchscreen interface on-site.
Specifications
- Standards Compliance: EN54-2, EN54-4, EN54-13, EN54-21, EN54-25, EN50131 (Grade 2)
- Display Type: IPS capacitive touchscreen
- Display Diagonal: 10.1″
- Display Resolution: 1024 × 600 px
- Backlight Lifetime: 50,000 hours
- Interface Language: English (configurable via CIE settings or Ajax apps)
- Communication Range: Up to 1,800m in open space
- Frequency Bands: 866.0-866.5 MHz, 868.7-869.2 MHz, 905.0-926.5 MHz, 915.85-926.5 MHz, 921.0-922.0 MHz
- Radio Signal Modulation: GFSK
- Maximum Radiated Power: ≤ 25 mW
- Polling Interval: 12-300 seconds (adjustable)
- Ethernet Connection: 8P8C socket, up to 100 Mbps
- Wi-Fi: 802.11 b/g/n module, up to 72 Mbps
- Cellular Networks: 2G, 4G (LTE), automatic switching capability
- Ajax Device Capacity: Up to 200 devices
- Fire Zones: Up to 40
- Users: Up to 200
- Security Groups: Up to 25
- Rooms: Up to 80
- Automation Scenarios: Up to 64
- Cameras/DVRs: Up to 36 Ajax NVRs, up to 224 Ajax cameras via NVRs, up to 492 standalone cameras
- Event Log Capacity: Up to 5,000 events
- Power Supply: 110-240 V~, 50/60 Hz
- Energy Consumption: Up to 60 W (standby mode)
- External Power Supply: 10-30 V (relay does not supply connected devices)
- Maximum Resistive Load: Up to 2 A at 30 V
- Access Codes: Up to 200 personal codes for registered users, up to 200 codes for unregistered users
- Duress Codes: Up to 200 personal duress codes
- Contactless Access: Pass cards and Tag key fobs (up to 200 devices)

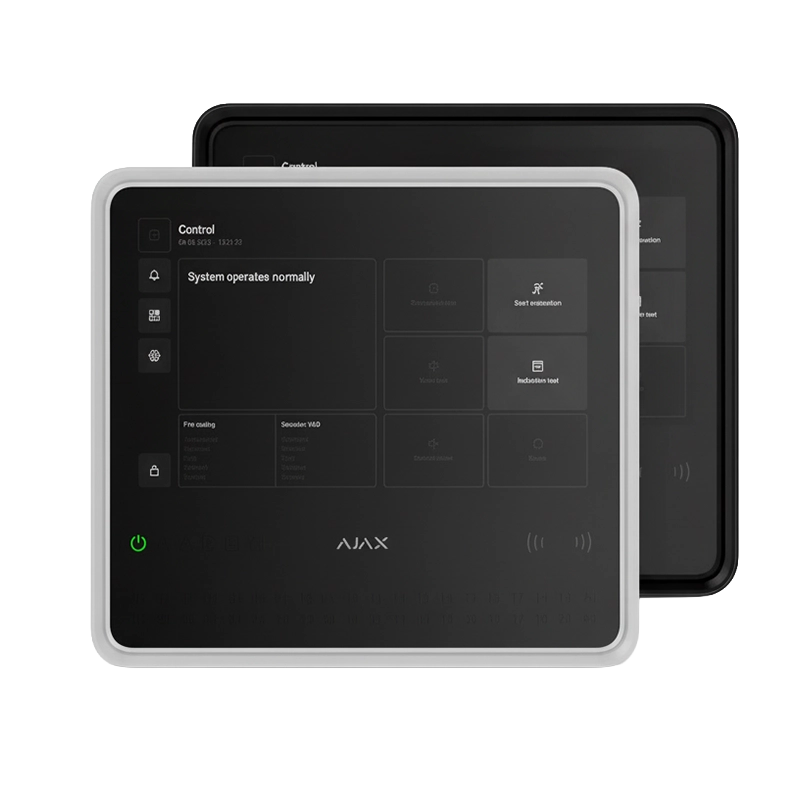

- Enclosure Colour: White, black
- Dimensions: 263 × 223 × 54 mm (10.35″ × 8.78″ × 2.11″)
- Weight: 1,526 g (3.36 lbs)
- Flammability Rating: UL 94 V-0
- Operating Temperature Range: -10°C to +40°C (14°F to 104°F)
- Operating Humidity: Up to 75%
- Protection Class: IP20
- Tamper Alarm: Yes
