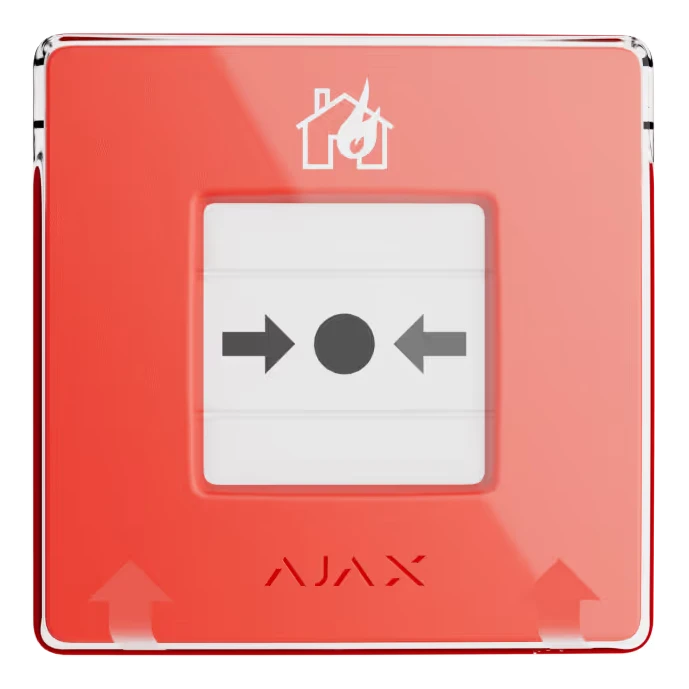

Ajax EN54 ManualCallPoint Jeweller
Summary
The Ajax ManualCallPoint (Red) Jeweller is a wireless addressable resettable manual call point designed to provide reliable fire alarm activation when every second counts. This innovative device combines traditional fire safety functionality with modern wireless technology, offering up to 7 years of battery life and exceptional communication range.
Engineered for life-threatening situations, the ManualCallPoint Jeweller instantly triggers fire alarms and automation scenarios with a single button press. The system immediately activates intrusion sirens, VADs, and sounders throughout the facility, whilst automation scenarios can de-energise equipment, unlock exits, and activate ventilation or emergency lighting to assist evacuation.
All alarm data is instantly available in Ajax apps and monitoring software, providing precise information about which button was pressed, when, and where it occurred. The device is fully compliant with EN 54-11 and EN 54-25 standards, ensuring reliable performance in critical fire safety applications.
Features
- Wireless addressable operation with Jeweller communication technology
- Up to 7 years of battery life from pre-installed CR123A batteries
- Communication range up to 1,700m in open space
- Alarm transmission to control panel within 3 seconds
- Simplified button mechanism to reduce risk of failure
- Transparent front lid prevents accidental alarm activation
- LED indication of alarm state
- Tamper protection with tamper alarm
- Automatic power adjustment for energy efficiency
- Frequency hopping prevents interference and signal interception
- Connection loss detection within 36 seconds
- Programmable automation scenarios activation
- Visual verification compatibility with MotionCam detectors and Ajax cameras
- Indoor/outdoor intrusion sirens activation
- SmartBracket mounting panel for easy installation
- QR code device addition without tools or programming
- Configuration and testing via free Ajax apps
- Precise location specification for emergency navigation
- Resettable using included special key tool
- EN 54-11 and EN 54-25 compliant
FAQ
How long does the battery last?
The ManualCallPoint Jeweller provides up to 7 years of battery life using the pre-installed 2 × CR123A batteries, depending on usage conditions.
What is the communication range?
The device offers up to 1,700 metres (5,500 feet) of communication range in open space between the device and the control panel or range extender.
How quickly does the alarm transmit?
When activated, the alarm is transmitted to the control panel within 3 seconds, ensuring rapid emergency response.
Can the device be reset after activation?
Yes, the ManualCallPoint Jeweller is resettable using the special key tool included in the complete set, allowing it to be restored to normal operation after the emergency has passed.
What automation scenarios can be triggered?
The device can trigger various automation scenarios including de-energising facilities, unlocking exits, activating ventilation systems, emergency lighting, intrusion sirens, VADs, and sounders.
Is the device weatherproof for outdoor use?
The device is suitable for both indoor and outdoor use within the specified operating temperature range of 0°C to +50°C and humidity up to 80%.
What standards does the device comply with?
The ManualCallPoint Jeweller is fully compliant with EN 54-11 and EN 54-25 fire safety standards.
Specifications
- Communication Technology: Jeweller wireless communication
- Compliance Standards: EN 54-11, EN 54-25
- Frequency Bands: 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz (depends on sales region)
- Communication Range: Up to 1,700m (5,500ft) in open space
- Alarm Transmission Time: Within 3 seconds
- Connection Loss Detection: 36 seconds
- Power Supply: 2 × CR123A batteries (pre-installed)
- Battery Life: Up to 7 years
- Operating Temperature Range: 0°C to +50°C (32°F to 122°F)
- Operating Humidity: Up to 80%
- Enclosure Colour: Red
- Dimensions: 102 × 104 × 39mm (4.02 × 4.09 × 1.53″)
- Weight: 214g (7.55oz)
- Complete Set Includes: ManualCallPoint (Red) Jeweller, SmartBracket mounting panel, 2 × CR123A battery (pre-installed), plastic key, transparent front lid, installation kit, quick start guide
