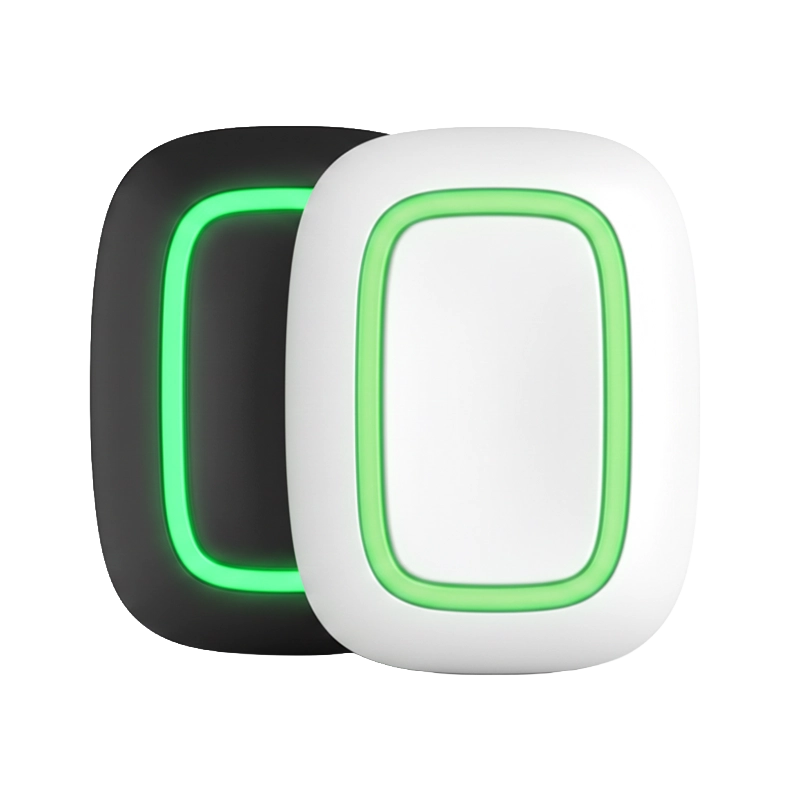

Ajax Superior Button Jeweller | Wireless Panic & Control Button | PD 6662 Compliant

FAQs

What operating modes does Superior Button Jeweller support?

Superior Button Jeweller supports three operating modes: Panic mode for emergency alerts with eight customizable alarm types, Control mode for managing Ajax automation devices through short or long presses, and Mute Fire Alarm mode for silencing interconnected fire detector alarms. The operating mode is configured through the Ajax PRO app.

How long does the battery last?

The pre-installed CR2032 battery provides up to 5 years of operation under normal use (one press per day). More frequent use may reduce battery life. The battery level can be monitored through the Ajax app, and when the battery charge auto-check option is enabled, the system checks the battery status once daily.

What is the communication range of Superior Button Jeweller?

Superior Button Jeweller communicates with the hub via the Jeweller protocol at distances up to 1,300 meters (4,250 feet) in open space. The actual range may vary depending on environmental factors and obstacles. The device can also operate through ReX or ReX 2 radio signal range extenders to extend coverage.

Can Superior Button Jeweller be used to control automation devices?

Yes, when set to Control mode, Superior Button Jeweller can control Ajax automation devices including Relay, WallSwitch, WaterStop, LightSwitch, and Socket. The button supports both short presses and long presses (over 3 seconds), allowing you to bind different actions to each press type through automation scenarios.

How does accidental press protection work?

Superior Button Jeweller offers two types of accidental press protection in Panic and Mute Fire Alarm modes: Long press protection requires holding the button for more than 1.5 seconds to send an alarm, while Double press protection requires pressing the button twice with a pause of no more than 0.5 seconds between presses. Protection can also be disabled if preferred.

What alarm types are available in Panic mode?

In Panic mode, Superior Button Jeweller supports eight alarm types: Intrusion, Fire, Auxiliary alarm, Panic button, Gas alarm, Malfunction, Leakage, and Custom. The selected alarm type determines the event code sent to the monitoring station and the notification text received by users, ensuring an appropriate response to each threat type.

Is Superior Button Jeweller waterproof?

Superior Button Jeweller has an IP55 protection rating, meaning the device enclosure is protected from dust and water splashes. While it can withstand splashes, it is not designed for full submersion in water.

How do I install Superior Button Jeweller?

Installation is simple through QR code pairing in the Ajax PRO app. The device can be mounted on flat surfaces using the optional Holder bracket with screws or double-sided adhesive tape, or it can be carried using the mounting hole in the enclosure with a wrist strap, neck lanyard, or key ring attachment.

Who can install and configure Superior Button Jeweller?

Superior Button Jeweller is part of the Superior product line, developed exclusively for professional projects. Only accredited Ajax Systems partners can sell, install, and administer Superior products. End users cannot purchase or configure these devices independently.

What hub firmware is required for Superior Button Jeweller?

Superior Button Jeweller requires a compatible Ajax hub with firmware OS Malevich 2.16 or higher. The Battery charge auto-check feature requires OS Malevich 2.17 or higher. The device must be added to a virtual space using Ajax Security System 3.0 or Ajax PRO: Tool for Engineers 2.0 or later.
