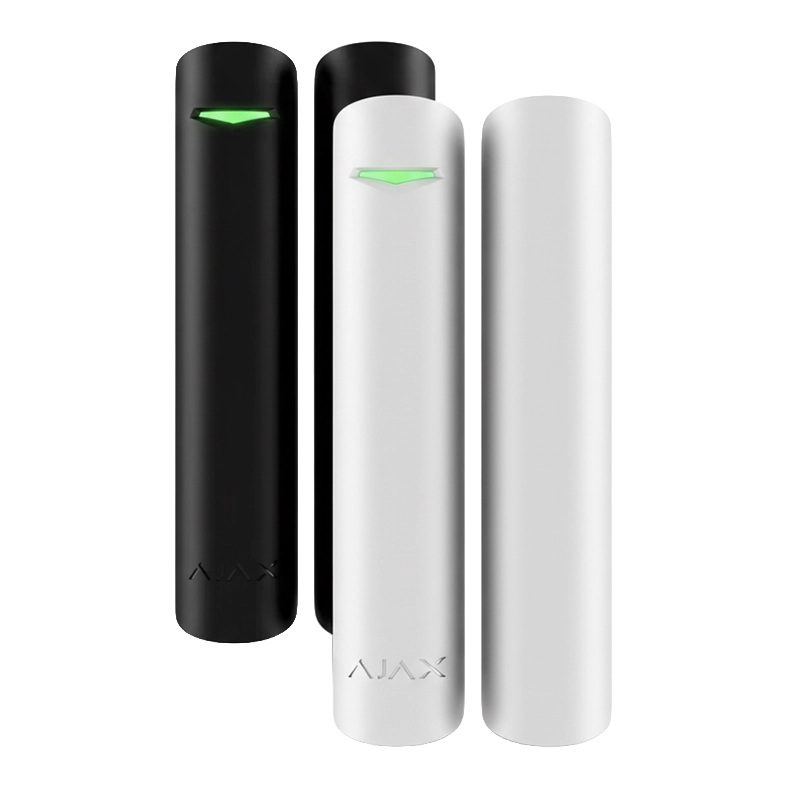

Ajax Superior DoorProtect Plus Jeweller | Wireless Opening, Shock & Tilt Detector | PD 6662 Compliant
Summary
The Ajax Superior DoorProtect Plus Jeweller is a professional-grade wireless opening detector that combines multiple detection methods for comprehensive door and window security. Designed exclusively for accredited Ajax Systems partners, this Superior product line device delivers enhanced protection through dual reed switches, shock detection, and tilt sensing capabilities.
Featuring a matte black enclosure with enhanced battery performance, the detector communicates via the secure Jeweller protocol with a communication range of up to 1,200 meters in open space. The device supports connection of third-party wired detectors with NC (normally closed) contacts, offering flexible integration options for professional security installations.
With up to 5 years of battery life and SmartBracket mounting with holding screw for sabotage resistance, Superior DoorProtect Plus Jeweller provides reliable indoor protection with tamper detection, device authentication, and low battery notifications. The detector operates across multiple security modes and supports entry/exit delays for convenient system arming.
Features
- Two reed switches detect doors or windows opening at distances up to 2cm (big magnet) or 1cm (small magnet)
- Accelerometer detects impacts, vibrations and changes in tilt angle for comprehensive threat detection
- Shock sensor with three adjustable sensitivity levels (Low, Normal, High)
- Tilt sensor detects vertical axis deviation of more than 5° with configurable thresholds from 5° to 25°
- Connector for third-party wired detector with normally closed (NC) contact type
- Jeweller wireless protocol with 868.0-868.6 MHz frequency band and up to 1,200m range
- Data encryption throughout transmission process
- Enhanced pre-installed Panasonic CR123A battery providing up to 5 years operation
- SmartBracket mounting panel with holding screw for tamper protection
- Tamper button triggers on attempts to detach detector from surface
- Device authentication to prevent spoofing
- Operating temperature range from -10°C to +40°C
- IP50 protection class for indoor use
- Chime feature for entry notifications when system is disarmed
- Always Active mode for constant monitoring regardless of arming status
- Configurable entry/exit delays and Night Mode operation
- Compatible with Ajax hubs running OS Malevich 2.16 or higher
- Works with ReX and ReX 2 radio signal range extenders
- LED indicator for alarm and status notifications (can be disabled)
- Quick installation via QR code pairing
- Remote configuration through Ajax PRO app
- Supports scenarios and automation based on temperature changes
- Roller shutter motion detector support with configurable impulse counting
- EN 50131 Grade 2 compliance
- Compact dimensions: 103 × 22 × 21 mm
- Lightweight at 37g
FAQs
What is the difference between Superior DoorProtect Plus Jeweller and the Baseline version?
The Superior version features two reed switches instead of one, includes a SmartBracket mounting panel with holding screw for enhanced security, has an enhanced battery for longer life, and comes with a matte enclosure. It is exclusively available to accredited Ajax Systems partners and designed for professional installations.
How far can the magnets be placed from the detector?
The small magnet works at distances up to 1cm from the detector, while the big magnet operates at distances up to 2cm. The exact working distance may vary depending on whether the surface is ferromagnetic (metal) or non-ferromagnetic (wood).
Can I use Superior DoorProtect Plus Jeweller without a magnet?
Yes, if you only need shock and tilt detection, you can install the detector without a magnet. Simply disable the opening sensor in the detector settings within the Ajax app.
What type of third-party detectors can be connected?
You can connect any third-party wired detector with a normally closed (NC) contact type, including motion detectors, opening detectors, vibration detectors, or roller shutter motion detectors. The detector should be installed within 1 meter of Superior DoorProtect Plus Jeweller.
Does Superior DoorProtect Plus Jeweller provide power to connected third-party detectors?
No, Superior DoorProtect Plus Jeweller does not power third-party detectors. External detectors must be powered separately according to their specifications.
How long does the battery last?
The pre-installed Panasonic CR123A battery provides up to 5 years of operation with 10 openings/closings per day using standard Jeweller settings. Battery life may vary based on usage patterns and environmental conditions.
Can the detector be installed horizontally?
Yes, the detector can be positioned horizontally if necessary. However, do not install it with the LED indicator facing down, as this may cause it to fall and fail due to damage.
What is the recommended signal strength?
The recommended Jeweller signal strength is 2-3 bars. If signal strength is low (one bar or less), consider relocating the device or using a ReX or ReX 2 radio signal range extender.
Is Superior DoorProtect Plus Jeweller suitable for outdoor use?
No, the detector is designed for indoor use only. Using it outdoors can lead to false alarms and device failure.
How do I test if the detector is working correctly?
Use the Detection Zone Test in the Ajax app to verify operation. For the opening sensor, open and close the door/window several times. For shock and tilt sensors, enable them in settings and simulate the appropriate conditions. The LED should flash with each detection.
Can Superior DoorProtect Plus Jeweller work with different Ajax product lines?
Yes, Superior, Fibra, and Baseline product lines are mutually compatible, allowing for flexible system configurations.
What happens during a power outage?
Superior DoorProtect Plus Jeweller is battery-powered and continues operating during power outages. It communicates with the hub, which typically has backup power capabilities to maintain system operation.
Specifications
- Detection Methods: Two reed switches (opening), accelerometer (shock), tilt sensor
- Reed Switch Range: Up to 1cm (small magnet), up to 2cm (big magnet)
- Shock Sensor Sensitivity: 3 levels (Low, Normal, High)
- Tilt Detection Threshold: 5° to 25° (adjustable)
- External Contact Type: NC (normally closed)
- Wireless Protocol: Jeweller
- Frequency Band: 868.0-868.6 MHz
- Maximum Radio Range: Up to 1,200m (in open space)
- Power Supply: 1 × CR123A battery (pre-installed)
- Battery Life: Up to 5 years
- Operating Temperature: -10°C to +40°C (14°F to 104°F)
- Operating Humidity: Up to 75%
- Protection Class: IP50
- Dimensions: 103 × 22 × 21 mm (4.06″ × 0.87″ × 0.83″)
- Weight: 37g (1.31 oz)
- Enclosure Colour: White, black (matte finish)
- Compliance Standards: EN 50131 (Grade 2), PD 6662:2017, INCERT, SSF, NFA2P
- Compatible Hubs: Ajax hubs with OS Malevich 2.16 or higher
- Range Extender Support: ReX, ReX 2
- Installation Type: Indoor only
- Mounting: SmartBracket with holding screw
- Complete Set Includes: Detector, 2 magnets (small and big), 1 × CR123A battery, SmartBracket with holding screw, installation kit, outside-mounted terminal clamp, quick start guide
Downloads
- Datasheet (Adobe PDF)
- User Manual (Adobe PDF)
