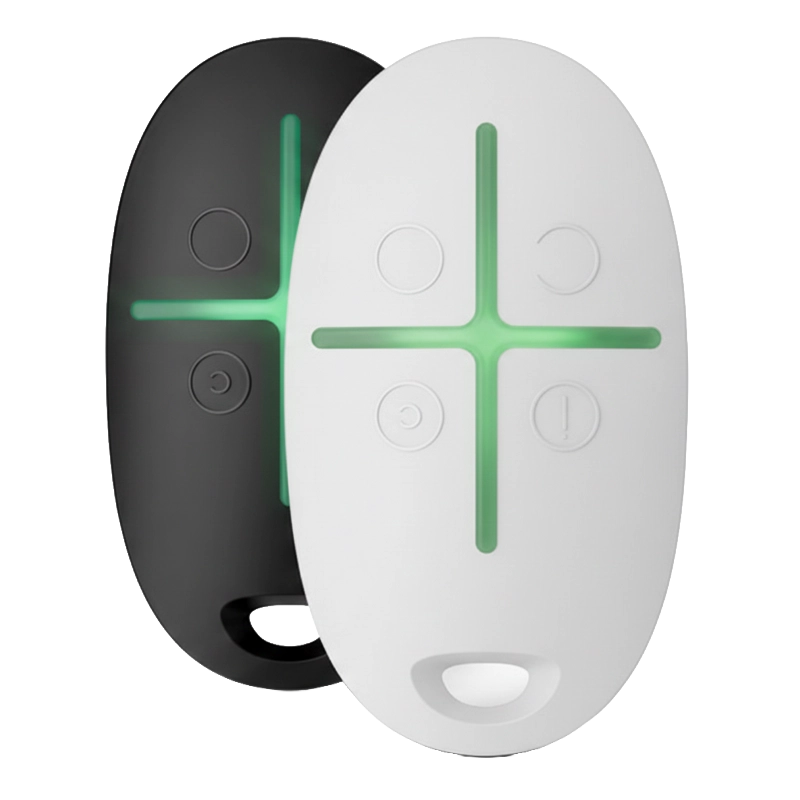

Ajax Superior SpaceControl Jeweller | Wireless Key Fob with Panic Button | PD 6662 Compliant
Summary
The Ajax Superior SpaceControl Jeweller is a professional-grade wireless key fob designed for seamless security mode management. Part of the Superior product line, this device is exclusively available through accredited Ajax Systems partners for professional installation projects.
Featuring a compact, ergonomic design with four intuitive buttons, the SpaceControl Jeweller allows users to arm and disarm their facility, activate night mode for perimeter security, or trigger emergency panic alerts. The device includes advanced protection against accidental activation through configurable long press or double press requirements, ensuring reliable operation without false alarms.
Communicating via the secure Jeweller protocol, the key fob maintains reliable two-way communication with Ajax hubs at distances up to 1,300 meters in open space. LED indicators provide instant visual confirmation when commands are successfully received and executed by the system. The device features a silicon overlay for improved protection against humidity, making it suitable for everyday carry in pockets or on key rings.
With encryption and authentication protocols preventing spoofing, the SpaceControl Jeweller can be assigned to individual users, allowing personalized access rights and group management capabilities. The pre-installed CR2032 battery provides up to 5 years of autonomous operation, with low battery notifications ensuring timely replacement. Configuration and monitoring is accomplished through Ajax apps for iOS, Android, macOS, and Windows.
Features
- Four-button control for arm, disarm, night mode, and panic functions
- Secure Jeweller radio protocol with encryption and authentication
- Two-way communication confirms command execution
- Up to 1,300m wireless range in open space (4,250 ft)
- LED indicators provide visual feedback for all button presses
- Configurable accidental press protection (long press or double press)
- User assignment for personalized access rights and event logging
- Group mode support for managing specific security zones
- Silicon overlay provides improved humidity protection (IP32)
- Up to 5 years battery life on pre-installed CR2032
- Low battery notifications via Ajax apps
- Compact design (65 × 37 × 10 mm, 13g) for pocket or keyring carry
- Compatible with all Ajax hubs running OS Malevich 2.25 or later
- Integration with third-party panels via uartBridge or ocBridge Plus
- Available in black or white
- Quick pairing via QR code scanning
- Remote configuration through Ajax apps
- Optional siren activation when panic button pressed
- Permanent or one-time deactivation options
- EN 50131 Grade 2, PD 6662:2017 compliant
FAQs
What is the Superior product line?
The Superior product line is developed specifically for professional installation projects. Only accredited Ajax Systems partners can sell, install, and administer Superior products. Superior, Fibra, and Baseline product lines are mutually compatible, offering flexibility for building systems of any configuration.
What is the communication range of the SpaceControl Jeweller?
The SpaceControl Jeweller communicates up to 1,300 meters (4,250 feet) in open space. Actual range may be reduced by walls, floors, and other obstacles that interfere with radio signal transmission.
How long does the battery last?
With normal use (approximately one arming and disarming per day), the pre-installed CR2032 battery provides up to 5 years of autonomous operation. More frequent use will reduce battery life. The system provides low battery notifications through the Ajax apps.
Can I assign the key fob to a specific user?
Yes, you can assign the key fob to individual users. When assigned, events are logged under the user’s name rather than the device name, and the key fob inherits the same security mode management rights as the assigned user.
What is accidental press protection?
Accidental press protection prevents false alarms from unintended button activation. You can configure the panic button to require either a long press (holding for more than 1.5 seconds) or a double press (two presses within 0.5 seconds) before sending an alarm.
How do I know if my command was received?
The SpaceControl Jeweller uses two-way communication with visual LED feedback. When you press a button, the LEDs next to it light up green once to confirm transmission. The central LED then lights up green for about half a second when the system successfully executes your command, or red if the command cannot be executed.
Can I use the SpaceControl with third-party security systems?
Yes, the SpaceControl Jeweller can be used with third-party security control panels through Ajax’s uartBridge or ocBridge Plus integration modules. When using these modules, you can customize the functions assigned to each button.
What is Night Mode?
Night Mode is a partial arming state that typically arms perimeter security devices (such as door and window sensors) while leaving interior motion detectors disarmed. This allows you to move freely inside your home while maintaining protection at entry points.
How many key fobs can I add to my system?
The number of devices you can add depends on your specific Ajax hub model. Check your hub’s specifications for the maximum number of supported devices.
What happens if the key fob gets wet?
The SpaceControl Jeweller has an IP32 protection rating and features a silicon overlay for improved humidity protection. While it can withstand normal environmental humidity and brief exposure to moisture, it should not be submerged in water or exposed to prolonged wet conditions.
Specifications
- Communication Protocol: Jeweller (secure two-way wireless)
- Frequency Bands: 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz (depends on region)
- Communication Range: Up to 1,300 m (4,250 ft) in open space
- Required Hub Firmware: OS Malevich 2.25 or later
- Number of Buttons: 4 (Arm, Disarm, Night Mode, Panic)
- LED Indicators: 5 LEDs (2 per button, 1 central)
- Power Supply: 1 × CR2032 battery (pre-installed)
- Battery Life: Up to 5 years
- Operating Temperature Range: -10°C to +40°C (14°F to 104°F)
- Operating Humidity: Up to 95% (non-condensing)
- Protection Class: IP32
- Dimensions: 65 × 37 × 10 mm (2.56″ × 1.46″ × 0.39″)
- Weight: 13 g (0.46 oz)
- Color Options: Black, White
- Compliance: EN 50131 Grade 2, PD 6662:2017, NFA2P, SIA CP-01
- Warranty: 2 years
