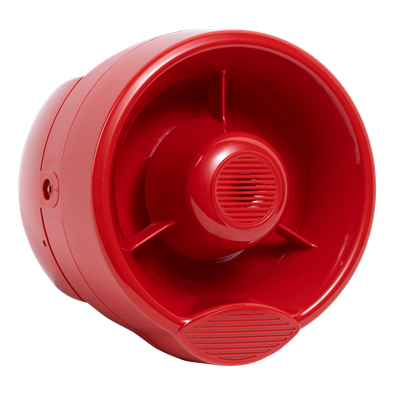

Apollo REACH Open Area Wall Sounder
£170.07
Summary
The REACH Wireless Open-Area Wall Sounder is a versatile notification device designed for effective sound signaling in various environments. With its wireless capabilities and multiple tone settings, it provides reliable alerts for both evacuation and general notifications. This sounder is easy to install and can be configured to meet specific requirements, ensuring optimal performance in emergency situations.
Features
- Sound output range of 88 – 91 dBA (tone dependent)
- Communication range of 100 m in open space
- 22 pairs of field device radio frequency channels
- Radiated power of 14 dBm (25 mW)
- Operating temperature range of -10°C to +55°C
- Maximum relative humidity of 95% (non-condensing)
- IP rating of IP 35 for indoor use
- Dimensions of 126 mm diameter x 132 mm height x 125 mm depth
- Weight of 350 g including base and batteries
- Bi-directional wireless communication with dual channel redundancy
Specifications
- Product Name: REACH Wireless Open-Area Wall Sounder
- Part Number: RW1500-110APO (White Body) / RW1500-120APO (Red Body)
- Battery Type : 2x VARTA CR123A Lithium 3 V, 1250mAh
- Battery Lifespan : 5 Years
- Operating Temperature : -10°C To +55°C
- Maximum Relative Humidity : 95%
- IP Rating : IP 35
- Dimensions : 126 Mm Diameter X 132 Mm Height X 125 Mm Depth
- Weight : 350 G
- Sound Output : 88 – 91 dBA
Downloads
- Datasheet (Adobe PDF)
