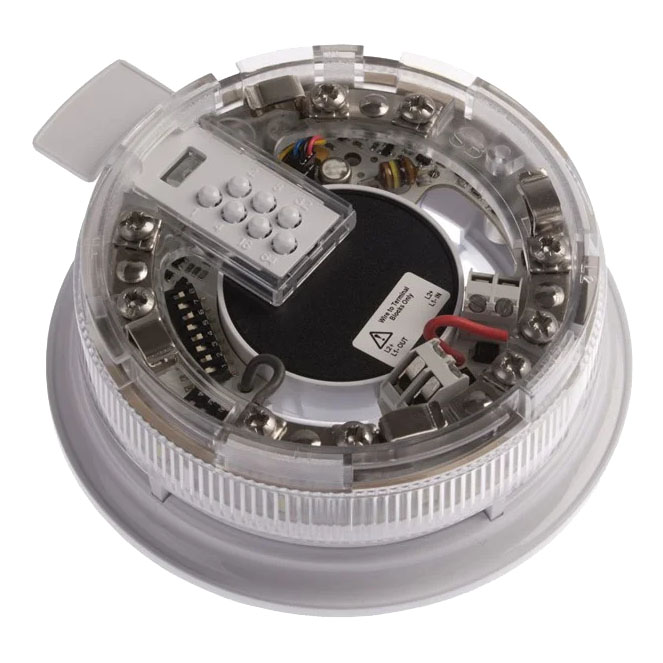

Apollo XP95 Addressable VAD Sounder Base
£57.90 (inc VAT: £69.48)
Summary
The XP95® Sounder Visual Alarm Device (VAD) Base is designed to signal a fire alarm in enclosed areas. It integrates a standard mounting base with a loop-powered sounder VAD, which can be used with a detector or as a stand-alone alarm device. The device is equipped with a built-in isolator, ensuring efficient and reliable operation. This product is particularly useful in environments where different volume ranges are required, such as hospitals, and offers synchronisation of alert and evacuate tones to maintain signal integrity.
Features
- Two volume ranges 55–75dB(A) and 75–91dB(A)
- EN54-23 compliant category O VAD
- EN54-3 compliant sounder
- VAD flash rate of 0.5Hz
- Unique acoustic self-test
- Unique VAD self-test
- Synchronisation of ‘alert’ and ‘evacuate’ tones
- Complies with NEN2575, DIN0833, and DIN33404
- Individual and group addressing
Specifications
- Operating Voltage: 17–28V DC
- Protocol Pulses: 5-9V
- Current Consumption at 24VDC: Quiescent 350µA, Switch-on surge 1.2mA for 1 sec, Activated 14mA
- VAD Frequency: 0.5Hz
- IP Rating: IP21C
- Sounder Output (45681-705/706): High tone setting volume – nominally 75dB(A) to 91dB(A) (Complies with EN54-3), Low tone setting volume – nominally 55dB(A) to 75dB(A)
- Sounder Output (45681-707): High tone setting volume – nominally 65 to 85dB(A) (Complies with EN54-3), Low tone setting volume – nominally 50 to 65dB(A)
- Dimensions and Weight: 115 x 38mm, 168g
Downloads
- Datasheet (Adobe PDF)
