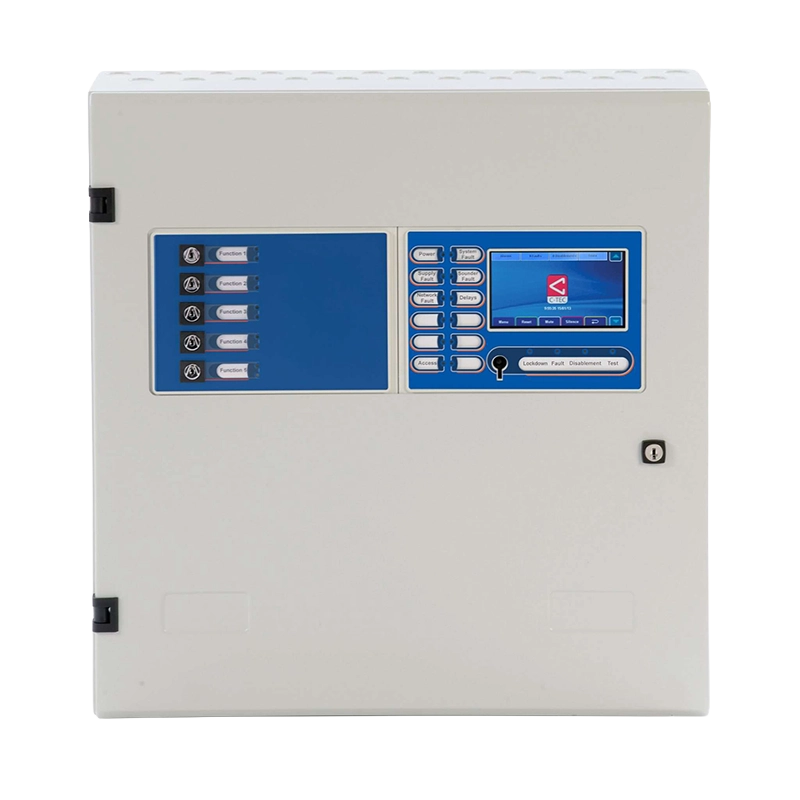

C-TEC LAP-2 | Multi-Message Lockdown & Invacuation Panel | 2-Loop, CAST Protocol
£1,257.37 (inc VAT: £1,508.84)
Summary
The C-TEC LAP2/CA Addressable Multi-Message Lockdown Alert Panel is a dedicated feature-rich control panel specifically designed to help venues meet the requirements of The Terrorism (Protection of Premises) Act 2025, also known as ‘Martyn’s Law’. This comprehensive legislation requires premises with a capacity of 200 or more to have public protection measures in place, including lockdown plans, by April 2027.
Designed to improve protective security and organisational preparedness across the UK, Martyn’s Law means that those responsible for certain premises and events need to be better prepared and protected, ready to respond in the event of a terrorist attack or security incident. Standard tier venues (with capacities for 200-799 people) need public protection procedures, including lockdown, communication, and evacuation/invacuation plans, while enhanced tier venues (with 800+ capacities) are additionally required to implement specific measures such as monitoring the premises’ immediate vicinity.
This fully monitored and battery-backed control panel features secure keyswitches that allow authorised users to select voice messages appropriate to various situations, including internal or external threats requiring partial lockdown, threats requiring full lockdown, or events requiring full building evacuation. The panel includes 2 CAST protocol loop drivers capable of powering multiple CAST multi-message lockdown voice sounders, making it an ideal solution for schools, theatres, shopping centres, and other commercial and public venues.
The LAP2/CA is ENVISION enabled, offering full compatibility with C-TEC’s cloud-based data management software, allowing incidents to be monitored both on-site and remotely. Designed for use in conjunction with C-TEC’s CAST lockdown alert voice sounders, lockdown alert voice sounder VADs, and lockdown alert call points, this panel provides a comprehensive and tailorable solution to meet each venue’s specific security requirements.
Features
- Designed specifically to help venues comply with Martyn’s Law (Terrorism Protection of Premises Act 2025)
- Fully monitored and battery-backed for reliable operation
- Secure keyswitches for authorised selection of appropriate voice messages
- Five pre-recorded voice messages including full lockdown, partial lockdown, evacuation, and all clear
- Custom or coded voice messages available by special order
- Two CAST protocol loop drivers capable of powering multiple lockdown voice sounders
- Up to 255 addressable devices per loop with maximum 1km loop length
- ENVISION enabled for cloud-based incident monitoring on or off site
- Compatible with C-TEC’s CAST lockdown alert voice sounders and sounder VADs
- Compatible with C-TEC’s lockdown alert call points for manual activation
- Full-colour 480 x 272 pixel interactive touchscreen display
- Manual activation via secure keyswitches or call points
- Two conventional sounder circuits with maximum 500m length per circuit
- Battery charge capacity from 7Ah minimum to 18Ah maximum
- RS485 graphics interface with Drax compatibility
- Network connection capability via optional ZHN network card
- Two programmable relays and one fault relay
- Two programmable auxiliary inputs
- USB connection for PC interface via galvanically isolated socket
- RS232 pager/DECT connection for additional alerting
- Expansion bus allows connection of up to 15 ‘A-Bus’ PCBs
- IP30 rated light grey textured mild steel construction
FAQs
What is Martyn’s Law and how does this panel help with compliance?
Martyn’s Law, officially The Terrorism (Protection of Premises) Act 2025, requires premises with a capacity of 200 or more to have public protection measures in place by April 2027. The LAP2/CA panel is specifically designed to help venues comply with this legislation by providing a comprehensive lockdown alert system with multiple voice messages for different threat scenarios, secure activation controls, and full monitoring capabilities.
What voice messages are available with the LAP2/CA panel?
The panel supports five pre-recorded voice messages: Message 1 for internal threats requiring full lockdown, Message 2 for internal threats requiring partial lockdown, Message 3 for external threats requiring partial lockdown, Message 4 for full building evacuation, and Message 5 for all clear when the emergency is resolved. Custom or coded voice messages can also be arranged by special order.
How are lockdown alerts triggered?
Lockdown alerts can be triggered in two ways: manually via a set of secure keyswitches on the panel that allow authorised personnel to select the appropriate message for the situation, or by activating one or more dedicated lockdown call points installed throughout the building.
Can the panel be monitored remotely?
Yes, the LAP2/CA is ENVISION enabled, meaning it’s fully compatible with C-TEC’s cloud-based data management software. This allows incidents to be monitored both on-site and remotely, providing flexibility for security personnel and management to respond to situations regardless of their location.
What devices can be connected to the LAP2/CA panel?
The panel includes 2 CAST protocol loop drivers and can connect to C-TEC’s CAST lockdown alert voice sounders, lockdown alert voice sounder VADs (Visual Alarm Devices), and lockdown alert call points. Each loop can support up to 255 addressable devices with a maximum loop length of 1km.
Is the panel suitable for integration with existing fire alarm systems?
Yes, the panel uses C-TEC’s CAST protocol and can be easily integrated with any ZFP CAST-protocol addressable fire system. It also features conventional sounder circuits and various relay outputs for integration with other building management systems.
When will the LAP2/CA panel be available?
The panel is scheduled for release in Q4 2025. For specific availability dates and to place pre-orders, contact C-TEC’s sales desk directly.
Specifications
- Product Code: LAP2/CA
- Protocol Compatibility: C-TEC CAST
- Mains Supply: 230V 50/60Hz
- Mains Rated Current: 1.3A maximum
- Internal Power Supply: 27Vdc nominal
- Total Output Current: Limited to 5A @ 230Vac
- Battery Charge Capacity: 7Ah minimum to 18Ah maximum
- Max Battery Size And Type: 2 x 12V 18Ah VRLA connected in series
- Number Of Loop Drivers: 1, 2 or 4 (dependent on model)
- Max Loop Output Current: 450mA
- Max Loop Length: 1km
- Max Addressable Devices Per Loop: 255
- Number Of Conventional Sounder Circuits: 2 (max length per circuit 500m)
- EOL Resistor Value: 6800Ω 5% tolerance 0.25W (blue, grey, red, gold)
- Max Sounder Output Current: 2 x 1A
- Auxiliary Relays: 2 x programmable relays, 1 x fault relay (volt free single pole changeover, max switch current 1A, max switch voltage 30Vdc)
- Other Outputs: 24V auxiliary power (19.5V min, 28V max), protected by resettable fuse, max current 100mA
- Auxiliary Inputs: 2 x programmable inputs (connect to 0V to trigger, max input voltage 27V non-latching)
- PC Connection: Via galvanically isolated USB socket on Z41 control module
- Pager/DECT Connection: RS232 (requires minimum BF874QAQ transmitter and BF877QAQ display pager)
- Graphics Interface/Diagnostics Connection: RS485, Drax compatible, C-TEC ENVISION cloud enabled
- Network Connection: RS485 hi-integrity multi-path fault tolerant via optional ZHN network card (max 128 network nodes)
- Indicators: Full-colour 480 x 272 pixel touchscreen, all relevant EN54 indicators plus 5 programmable indicators
- Controls: Interactive touchscreen with menu sensitive buttons, 1 x keyswitch for Access Level 2
- Connections: Fixed, largest acceptable conductor size 1mm²
- Expansion Connections: RS485 peripheral bus connection (up to 15 ‘A-Bus’ PCBs)
- Product Dimensions: 450W x 462H x 127D mm (semi-flush hole: 456W x 468H x 122D mm, requires ZBEZS bezel)
- Construction And Finish: Light grey textured mild steel, 1.2mm Zintec, RAL7035 epoxy paint
- IP Rating: IP30
- Operating Temperature: -5°C to +40°C
- Max Relative Humidity: 95%
- Release Date: Q4 2025 (contact sales for availability)
