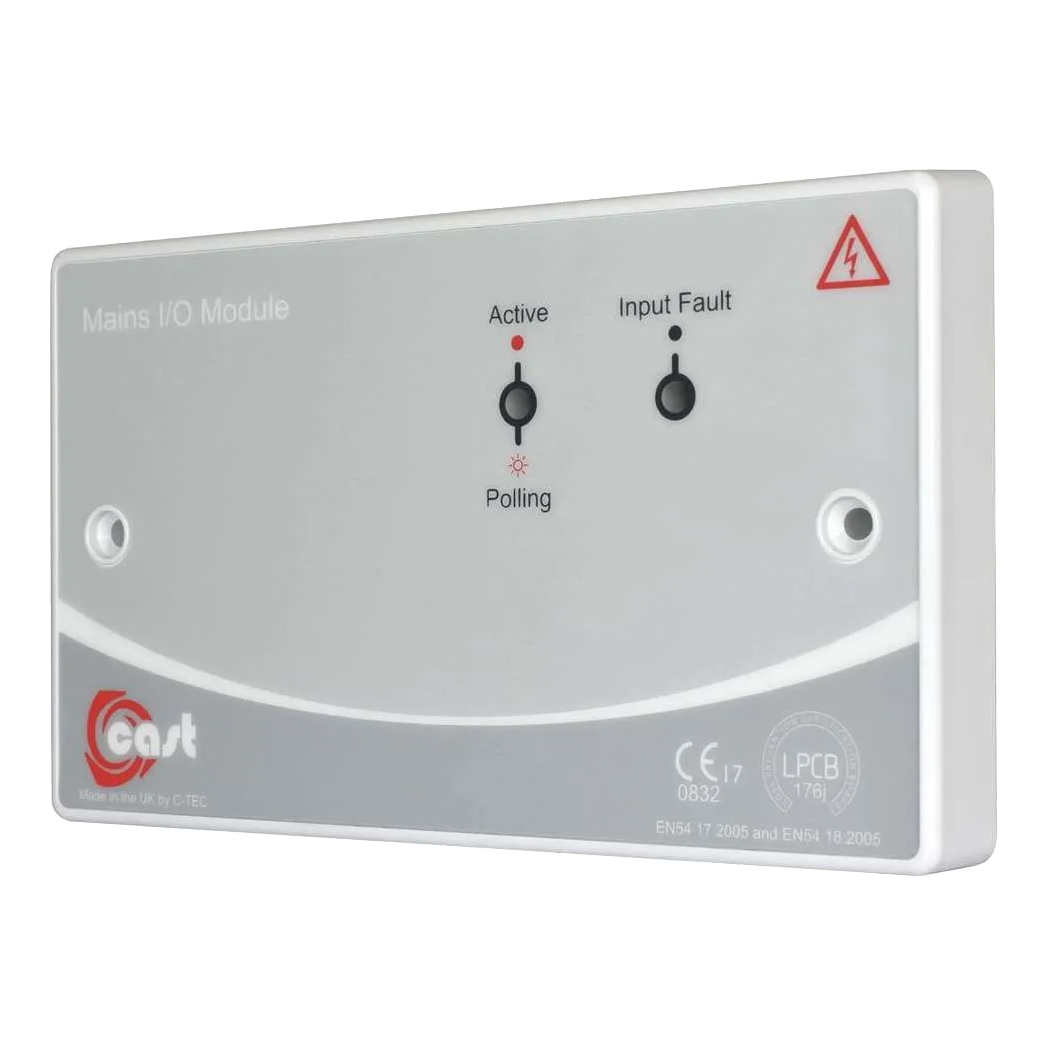

CAST Mains Switching Input Output Module
£47.88 (inc VAT: £57.46)
Summary
The C-TEC CA731 is a versatile Mains Switching Input Output Module designed for use with C-TEC’s XFP and ZFP ‘CAST’ protocol Addressable Fire Panels. This module is LPCB certified to EN54-17 & 18 and Kiwa Telefication certified to EN54-13, ensuring compliance with stringent safety standards. It combines the functions of a switch monitor, zone monitor, and mains-switching output unit, making it an essential component for effective fire alarm systems.
Features
- 6mA typical alarm current
- 1.7mA typical quiescent current
- Indicators for loop polling, input faults, and relay status
- Includes volt-free changeover contacts for triggering external devices
- Mountable on a C-TEC NCP-26 surface box or standard UK 25mm double gang back box
- Product dimensions: 147 W x 87 H x 22 D mm
- IP40 rated when correctly installed
Specifications
- Approvals/Certifications : LPCB Certified To EN54-17 & 18, Kiwa Telefication Certified To EN54-13
- Compatibility : Compatible With C-TEC’s XFP/ZFP CAST Addressable Fire Panels
- Application/Operation : Incorporates Functions Of A Switch Monitor, Zone Monitor, And Mains-Switching Output Unit
- Supply/Operating Voltage : 22 To 40V DC
- Quiescent Current : 1.7mA Typical
- Activation Current : 6mA @ 22 To 40V DC
- Auxiliary Relays : One Volt-Free Single Pole Changeover Relay Rated At 5A @ 230V AC Or 5A @ 30V DC
- Auxiliary Inputs : One Monitored Input For Up To 20 ActiV Detectors And 10 MCPs
- Indicators : Active (Lit Red), Polling (Flashing Red), Input Fault (Lit Yellow)
- Connections : Six 45º Screw-Type Connectors For Loop In/Out And Zone Connections
- Product Dimensions (mm) : 147 W x 87 H x 22 D
- Construction & Finish : ABS Polycarbonate With A Two-Tone Grey Velvet Polyester Label
- IP Rating : IP40 When Correctly Installed
- Weight : 122g
- Operating Conditions/Temperature : -10ºC To +55ºC
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| Device Type | |
| Environment | |
| Protocol | |
| System Type |
