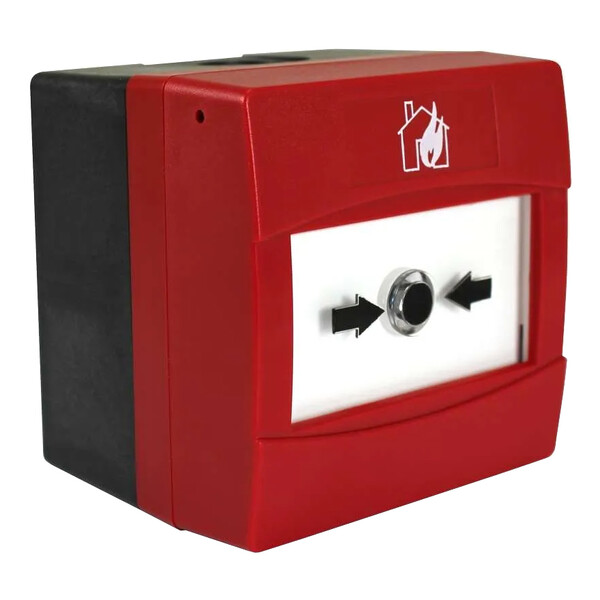

CAST Weatherproof Manual Call Point
£74.41 (inc VAT: £89.29)
Summary
The C-TEC CA47067 is a high-quality IP67 rated red manual call point designed for use with C-TEC’s XFP and ZFP ‘CAST’ protocol Addressable Fire Panels. This surface-mounting device features a smooth-action resettable element that mimics the feel of breaking glass, ensuring reliable operation in emergency situations. With its robust construction and advanced features, this call point is ideal for environments requiring enhanced protection against dust and water ingress.
Features
- Surface mounting only
- Photoluminescent operating window visible for up to 5 minutes
- 5mA typical alarm current
- 370µA typical quiescent current
- Supplied with reset/back box removal key and ‘Not in Use’ label
- Connections for Loop IN and Loop OUT (x2)
- Product dimensions: 87 W x 88 H x 72 D (includes back box)
- Construction: Red ABS polycarbonate with glass fibre window
Specifications
- Compatibility : Compatible With C-TEC’s XFP/ZFP CAST Protocol Addressable Fire Panels
- Application/Operation : Surface Mounting Only
- Supply/Operating Voltage : 22 To 40V DC
- Quiescent Current : 370µA Typical @ 22 To 40V DC
- Alarm Current : 5mA Typical @ 22 To 40V DC
- Indicators : Red ‘Alarm Ring’ (Lit Steady Red When Activated, Flashing Red When Polling)
- Connections : Loop IN, Loop OUT (x2)
- Product Dimensions (mm): 87 W x 88 H x 72 D (Includes Back Box)
- Construction & Finish : Red ABS Polycarbonate; Glass Fibre Window
- IP Rating : IP67
- Weight : 228g
- Operating Conditions/Temperature : -10ºC To +55ºC
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 2.1 kg |
|---|---|
| Device Type | |
| Colour | |
| Environment | |
| Hazardous Applications | |
| Marine Applications | |
| Protocol | |
| Short Circuit Isolator | |
| System Type |
