Channel E/PIC/RZ/PACK | Razor Full Legend Set
£8.22 (inc VAT: £9.86)
Summary
The Channel Safety Systems E/PIC/RZ/PACK is a full legend set designed for use with the Razor range of LED emergency exit signs. Razor exit signs are supplied as standard with an arrow up pictogram, and this accessory pack provides the additional directional legends required to configure the sign for any escape route orientation.

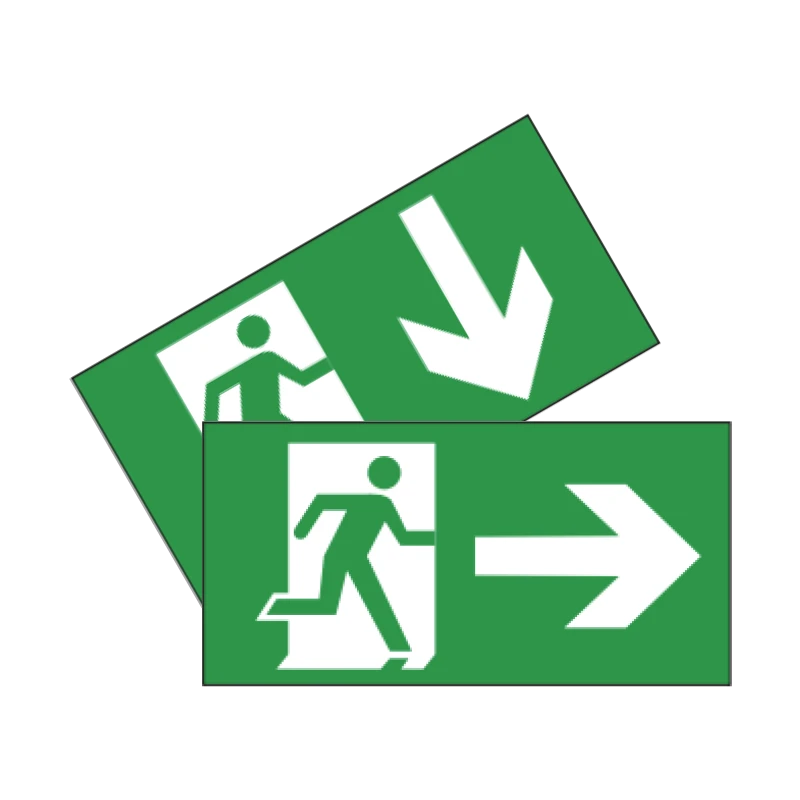

The pack contains double-sided pictograms for arrow down and arrow left/right, enabling installers and facilities managers to tailor a single Razor fitting to suit the specific escape route direction, whether routing occupants down stairways, along corridors, or through alternate exits. This flexibility avoids the need to hold multiple variants of the parent luminaire in stock.
The Health and Safety (Safety Signs and Signals) Regulations 1996 require that all text-only fire exit signs should have been replaced by 24th December 1998 with pictogram-format ‘running man’ signs. When refreshing or updating older installations, replacing legend panels or diffusers presents a suitable opportunity to test the fitting and, where required, change the internal battery. Note that this pack is intended for the standard Razor blade size and is not suitable for the 100mm Razor Blade or flush recessed variants, which use the E/PIC/RZ/F/ALR, E/PIC/RZ/F/D and E/PIC/RZ/F/U legends.
Features
- Full legend set for the Channel Safety Razor range of LED emergency exit signs
- Contains arrow down and arrow left/right pictograms
- Double-sided pictograms suitable for hanging applications
- Allows a single Razor luminaire to be adapted to any escape route direction
- Complements the standard arrow up pictogram supplied with Razor fittings
- Compliant with the ‘running man’ pictogram format required under the Health and Safety (Safety Signs and Signals) Regulations 1996
- Ideal for sign refurbishment and legend panel updates
- Supplied as a replacement and expansion accessory for existing Razor installations
- 3-year manufacturer guarantee
FAQ
Which exit signs is the E/PIC/RZ/PACK compatible with?
The pack is designed for use with the Channel Safety Razor range of LED emergency exit signs, including the hanging (E/RZ/M3/LED/H), recessed (E/RZ/M3/LED/R), flush (E/RZ/M3/LED/F) and wall/ceiling (E/RZ/M3/LED/W) variants that use the standard 300mm blade size.
What pictograms are included in the pack?
The pack includes double-sided legend panels for arrow down and arrow left/right. The parent Razor luminaires are supplied as standard with an arrow up pictogram, so this pack provides the remaining directional options required to cover all escape route orientations.
Is this pack suitable for the 100mm Razor Blade or flush fitting?
No. Fittings with different blade sizes, including the 100mm Razor Blade and certain flush recessed variants, require the alternative legends E/PIC/RZ/F/ALR (arrow left/right), E/PIC/RZ/F/D (arrow down) and E/PIC/RZ/F/U (arrow up). Please verify the blade size of your Razor sign before ordering.
Do these pictograms comply with current UK signage legislation?
Yes. The pictograms are supplied in the ‘running man’ format required under the Health and Safety (Safety Signs and Signals) Regulations 1996 (SI 341), which enacted the EU Signs Directive and required the replacement of text-only BS 2560 exit signs by 24th December 1998.
Can I upgrade older text-only exit signs by fitting these pictograms?
The pack is specifically designed for Channel Razor luminaires, not for retrofit onto older third-party signs. When updating legacy signage, it is advisable to test the existing fitting, as battery replacement is often required alongside legend updates. In many cases replacing the entire luminaire proves more cost-effective than retrofitting legends and batteries to obsolete signs.
Is a guarantee included with the legend set?
Yes. The Razor Full Legend Set is supplied with a 3-year manufacturer’s guarantee from Channel Safety Systems (part of Deta Electrical Company Ltd).
Specifications
- Product Code: E/PIC/RZ/PACK
- Product Type: Full legend set / pictogram pack
- Compatible Range: Channel Safety Razor LED emergency exit signs
- Compatible Blade Size: 300mm (L) x 170mm (H) x 9mm (D)
- Pictograms Included: Arrow down, arrow left/right (double-sided)
- Format: ‘Running man’ pictogram to current UK legislation
- Standards Compliance: Health and Safety (Safety Signs and Signals) Regulations 1996 (SI 341), EU Signs Directive
- Pictogram Supplied With Parent Luminaire: Arrow up (additional legends provided by this pack)
- Brand: Channel Safety Systems
- Manufacturer: Deta Electrical Company Ltd
- Guarantee: 3 years
