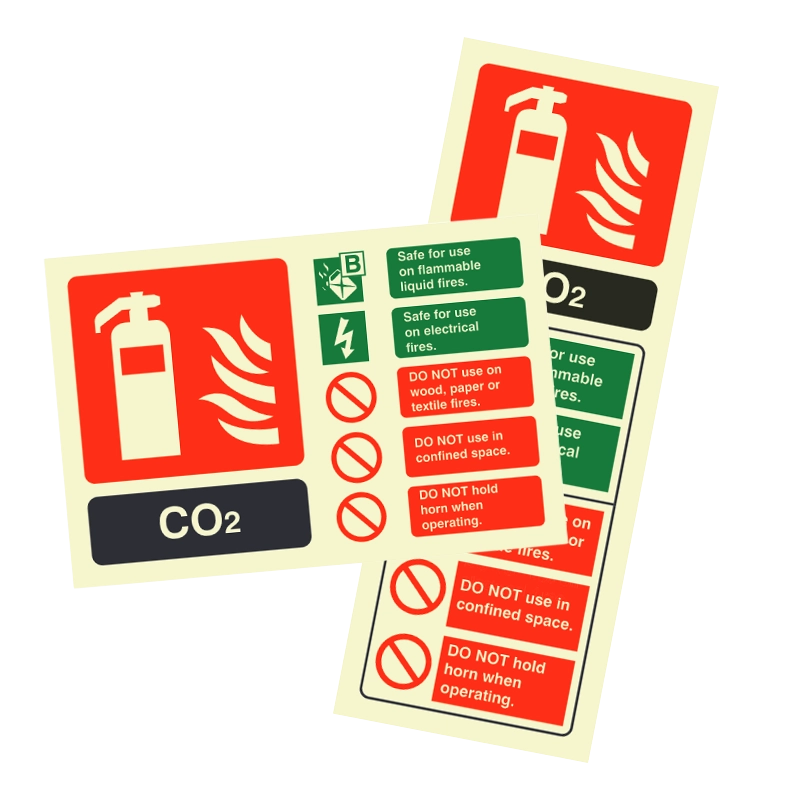

CO2 Extinguisher ID Sign | Photoluminescent
Summary
CO2 fire extinguisher ID signs are an essential element of any compliant fire safety installation. Positioned directly above a CO2 extinguisher, they immediately communicate to all building occupants which type of appliance is present, which classes of fire it is rated for, and which situations it must not be used in. This is particularly important for CO2 extinguishers, which are suited to electrical fires and flammable liquid fires but are not appropriate for use on Class A fires involving solid materials such as wood or paper.
These photoluminescent signs absorb ambient light during normal conditions and re-emit it when lighting levels fall, maintaining legibility in darkness or smoke-filled environments when clear signage is most critical. The range is available in two sizes — 75mm x 200mm portrait and 150mm x 100mm landscape — and in both rigid and self-adhesive formats, providing a suitable option for any installation scenario.
Fire extinguisher ID signs support compliance with the Regulatory Reform (Fire Safety) Order 2005, which requires that fire-fighting equipment is clearly identified and that building occupants are able to determine the correct appliance to use for different classes of fire.
Features
- Photoluminescent construction — absorbs ambient light and re-emits it in low-light or dark conditions for improved emergency visibility
- Available in rigid (standard) and self-adhesive formats to suit different installation requirements
- Portrait format: 75mm x 200mm — typically installed directly above a CO2 extinguisher bracket or stand
- Landscape format: 150mm x 100mm — suited to wall-mounted positions or locations where vertical space is restricted
- Clearly identifies the CO2 extinguisher type and displays appropriate and prohibited fire classes
- Self-adhesive variants allow quick, tool-free installation directly onto walls or flat surfaces
- Supports compliance with the Regulatory Reform (Fire Safety) Order 2005
FAQs
What is a CO2 fire extinguisher ID sign used for?
It is positioned above a CO2 fire extinguisher to identify the extinguisher type and inform building occupants which classes of fire it is suitable for, and which it must not be used on. This helps ensure the correct appliance is selected quickly in an emergency and reduces the risk of dangerous misuse.
What fires can CO2 extinguishers be used on?
CO2 extinguishers are primarily suited to Class B fires involving flammable liquids and are safe to use on live electrical equipment, making them a common choice in offices, server rooms, and environments with electrical hazards. They are not suitable for Class A fires involving solid combustibles such as wood, paper, or textiles.
What is the difference between the rigid and self-adhesive versions?
The rigid photoluminescent signs (103P / 113P) are conventional signs designed for use with a standard sign holder or bracket. The self-adhesive versions (103SAPL / 113SAPL) feature an adhesive backing that allows direct fixing to a wall or flat surface without a separate holder, making installation faster and simpler.
Which size should I choose — 75mm x 200mm or 150mm x 100mm?
The 75mm x 200mm portrait format is the most widely used and is typically mounted in a vertical orientation directly above the extinguisher. The 150mm x 100mm landscape format is better suited to locations where vertical space is limited, or where a lower-profile, wider sign is more appropriate for the installation.
Do these signs glow in the dark?
Yes. These signs are photoluminescent, meaning they charge from surrounding ambient light and re-emit it when lighting levels drop. This keeps them visible in darkness or smoke-affected conditions — particularly important during power failures or emergency evacuations.
Do these signs meet UK fire safety legislation?
Yes. Fire extinguisher ID signs support compliance with the Regulatory Reform (Fire Safety) Order 2005, which requires that fire-fighting equipment is clearly identified and that building occupants can determine the correct extinguisher to use for different fire classes.
Specifications
- Product Code (Portrait Rigid): 103P
- Product Code (Portrait Self-Adhesive): 103SAPL
- Product Code (Landscape Rigid): 113P
- Product Code (Landscape Self-Adhesive): 113SAPL
- Portrait Size: 75mm x 200mm
- Landscape Size: 150mm x 100mm
- Material: Photoluminescent
- Fixing Options: Rigid (standard) and self-adhesive
- Orientation: Portrait (75mm x 200mm) and landscape (150mm x 100mm)
- Application: CO2 fire extinguisher identification
- Legislation: Supports compliance with the Regulatory Reform (Fire Safety) Order 2005
Additional information
| Weight | 1 kg |
|---|---|
| Size | |
| Photoluminescent | |
| Extinguisher Type | |
| Material |
