Cygnus SmartNet-Pro 64 Zone CIE Panel
Summary

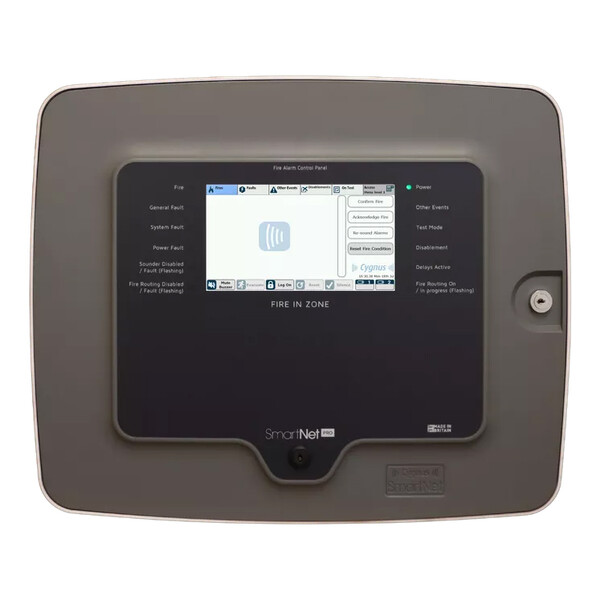

The SN.CIE20.A SmartNet Pro Fire Control Panel represents Cygnus Group’s advanced 64-zone wireless fire detection and alarm solution, designed specifically for small to medium-sized commercial premises, permanent installations, and Houses in Multiple Occupation (HMOs). This sophisticated control panel combines cutting-edge wireless mesh radio technology with an intuitive colour touchscreen interface to deliver reliable fire safety management without the complexity of traditional wired systems.
At the heart of the SN.CIE20.A is a 7″ full-colour resistive touchscreen display that provides clear, immediate access to all system functions whilst remaining operable even when wearing protective gloves. The panel’s 64-zone capacity, combined with integrated Zone LEDs for BS5839 compliance, makes it an ideal solution for buildings requiring comprehensive fire detection coverage with clear visual zone identification.
The wireless architecture eliminates the need for extensive cabling whilst maintaining the reliability expected from professional fire safety systems. The panel can manage up to 511 SiteNet devices across its wireless mesh network, with radio communication extending up to 700 metres, ensuring comprehensive coverage even in large or complex building layouts.
Engineered to EN 54 standards and certified by Intertek, the SN.CIE20.A provides peace of mind through robust construction, three-day backup battery capability, and advanced features including cause and effect programming, silent test mode, and easy configuration via the Windows-based Cygnus ConfigGUI application. The panel’s dual mounting options (surface or recessed) and key-lockable enclosure ensure professional installation and secure operation in any environment.
Features
- 64-zone fire detection and alarm management capability
- Zone LEDs included for BS5839 compliance requirements
- 7″ full-colour touchscreen display for clear system status
- Resistive touchscreen technology for use with protective gloves
- Wireless mesh radio technology for reliable communication
- Up to 700m radio range for extensive coverage
- Support for up to 511 SiteNet wireless devices
- 868MHz radio frequency operation (915MHz also available)
- Self-forming and self-healing wireless network algorithms
- TDES encryption for secure communications
- Completely wireless communication eliminating cabling requirements
- Single mains power connection requirement
- Cause and effect programming engine
- Three to four-day backup battery life capability
- Surface mounted or recessed installation options
- Key-lockable door for security
- Level 2 key access control
- Removeable internal parts for installation ease
- Removeable door for maintenance access
- Silent test mode for system testing
- Two digital inputs with fault monitoring
- Two digital outputs with relay contacts
- Wired terminal connections for inputs, outputs and expansion
- Easy configuration via Windows-based Cygnus ConfigGUI application
- EN 54 compliant design
- Intertek certification
- Lid tamper switch for security monitoring
- Radio messaging to and from other devices
- Professional fire safety system integration
- Suitable for commercial premises and HMOs
FAQ
How many fire detection devices can the SN.CIE20.A support?
The SN.CIE20.A can manage up to 511 SiteNet wireless devices across its 64-zone configuration. This includes smoke detectors, heat detectors, manual call points, first aid alarms, and alarm interface units within the SmartNet system range.
What is the difference between the SN.CIE20.A and other SmartNet Pro models?
The SN.CIE20.A is a 64-zone model that includes Zone LEDs for BS5839 compliance. Other models include the SN.CIE30.A (96 zones with LEDs), SN.CIE70.A (64 zones without LEDs), and SN.CIE80.A (96 zones without LEDs).
How far can the wireless devices be placed from the control panel?
The SN.CIE20.A provides wireless communication up to 700 metres range using 868MHz radio frequency. The self-forming mesh network allows devices to communicate through other devices, extending the effective range throughout large buildings.
What happens if mains power fails?
The panel includes 2x NP7-12FR 12V SLA 7Ah fire-rated backup batteries that provide three to four days of operation during mains power failure, ensuring continuous fire safety protection.
Can the touchscreen be operated whilst wearing gloves?
Yes, the SN.CIE20.A features a resistive touchscreen specifically designed for operation whilst wearing protective gloves, making it suitable for use by emergency responders and maintenance personnel.
How is the system configured and programmed?
Configuration is performed using the Windows-based Cygnus ConfigGUI application, which provides easy setup of zones, cause and effect programming, device assignments, and system parameters.
Is the system compliant with fire safety standards?
Yes, the SN.CIE20.A is designed to be EN 54 compliant and certified by Intertek. The Zone LEDs specifically provide BS5839 compliance for visual zone indication requirements.
Can the panel be installed in different ways?
The SN.CIE20.A offers flexible installation with both surface-mounted and recessed mounting options. Surface mounting dimensions are 460w x 385h x 105d mm, whilst recessed mounting is 460w x 385h x 50d mm (excluding keys).
Specifications
- Part Number : SN.CIE20.A
- Zone Capacity : 64 zones
- Zone LEDs : Yes (BS5839 compliance)
- Device Capacity : Up to 511 SiteNet devices
- Display Type : 7″ full-colour touchscreen
- Touchscreen Technology : Resistive (glove compatible)
- Dimensions Surface Mounted : 460w x 385h x 105d mm (excluding keys)
- Dimensions Recessed : 460w x 385h x 50d mm (excluding keys)
- Weight : 7.8kg with batteries (3.4kg without)
- Operating Temperature : -5°C to +40°C
- IP Rating : IP30
- Relative Humidity : 95% @ 40°C
- Operating Voltage : 230V AC ±10%, 50/60 Hz
- Rated Current : 0.4A rms
- Backup Batteries : 2x NP7-12FR 12V SLA, 7Ah (Fire Rated)
- Backup Battery Voltage : 24V (2x 12V batteries in series)
- Battery Life : 3-4 days
- Mains Fuse : T1A H250V, 1A (slow blow) 5 x 20mm
- Battery Fuse : 3A Mini-Automotive Blade Fuse
- Radio Frequency : 865 to 868 MHz
- Radio Category : Category 1
- Radio Channels : 10 (with channel hopping algorithm)
- Radio Range : Up to 700m
- Bandwidth : 250kHz
- Channel Spacing : 300kHz
- Transmit Power : 10mW (maximum)
- Duty Cycle : <0.1%
- Protocol : Cygnus mesh protocol
- Encryption : TDES (64-bit payload, 192-bit encryption key)
- Network Features : Self-forming and self-healing algorithms
- Digital Inputs : 2 (fault monitored with termination resistors)
- Digital Outputs : 2 (NO, COM, NC dry contacts)
- Contact Rating : 2A @ 30V DC max, 60W max
- Enclosure Options : Surface mount or recessed
- Door Security : Key-lockable with Level 2 access
- Configuration Software : Windows-based Cygnus ConfigGUI
- Compliance : EN 54 compliant, Intertek certified
- Standards : EN 54-2:1997+A1-2006, EN54-4:1997+A1:2002+A2:2006, EN 54-25:2008
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 2.1 kg |
|---|---|
| Device Type |
