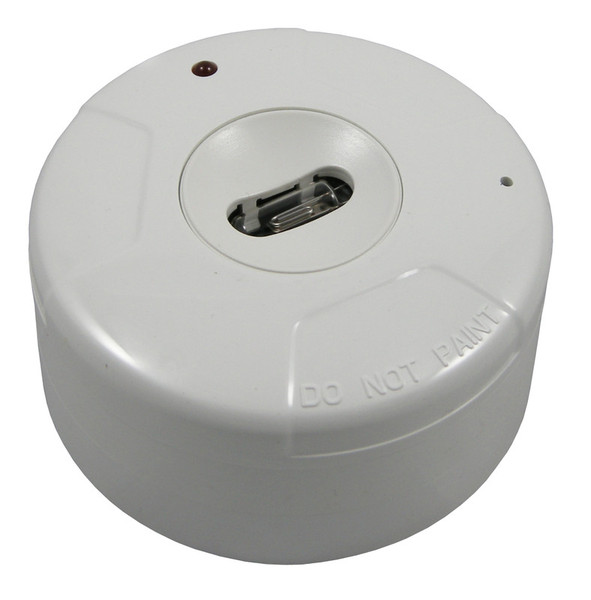

Fyreye Ultra-Violet Flame Detector
£135.00 (inc VAT: £162.00)
Summary
The Fyreye Conventional Ultra-Violet Flame Detector (FEUV2000) is designed for environments where flames are expected to develop before smoke, such as in areas with camera film, computer, audio, and video tapes or disks. This detector is intended for indoor use only and should be protected from spurious UV sources like sparks, uncovered halogen lights, and lightning to prevent false alarms. Due to the operational characteristics of flame detectors, it is generally advisable to install only one detector per zone in conventional fire alarm systems.
Features
- Low profile shape
- Solar blind with electronic filter to eliminate unwanted alarms from naturally occurring phenomena
- Fast response time
- High immunity to electrical noise and RF interference
Specifications
- Model : FEUV2000
- Part No. : 80-045
- Detector Class : Ultra Violet Flame Detector
- Operating Voltage : 12-28V DC
- Quiescent Current : 320μA
- Alarm Current @ 24V DC : 45-50mA
- Operating Temperature : 0°C to 45°C
- Minimum Continuous Temperature : 0°C
- Maximum Humidity : 95% RH non-condensing
- Alarm Condition : 10 seconds for 30mm flame @ 4 metres
- Detection Angle : 120°
- UV Sensitivity : 185-260nm
- Size (with Base) : 98 x 36mm (98 x 52mm)
- Weight (with Base) : 85g (143g)
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 0.85 kg |
|---|---|
| Device Type | |
| Wavelength | UV |
| Hazardous Applications | |
| Detection Type | |
| System Type |
