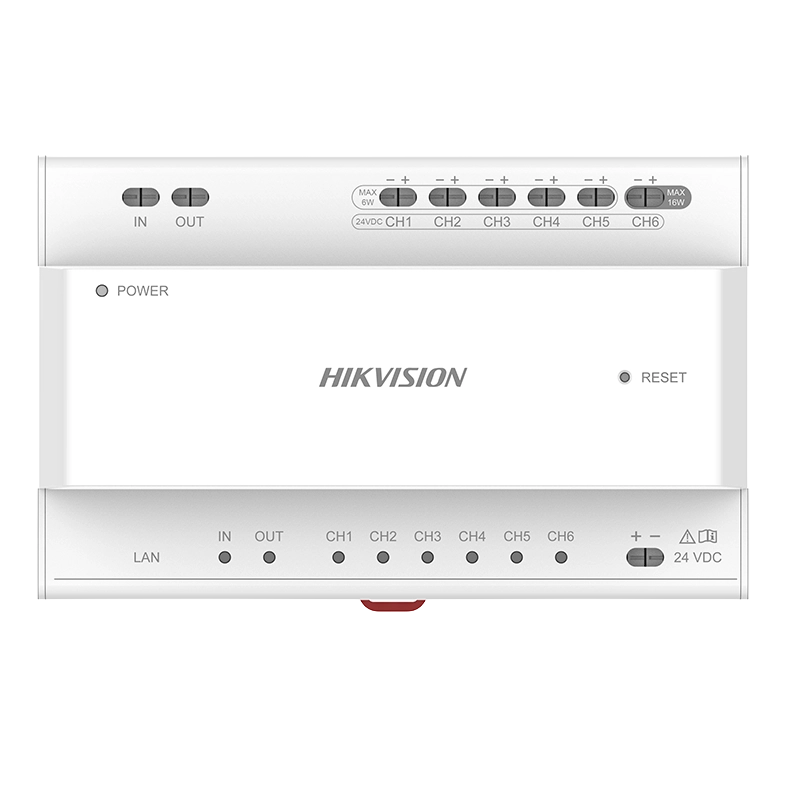

Hikvision DS-KAD706Y | 2-Wire IP Intercom Distributor | 6-Port Cascade Interface | Din Rail Mount

FAQs

What is the purpose of the DS-KAD706Y distributor?

The DS-KAD706Y serves as the central power and data distribution hub for Hikvision two-wire video intercom systems. It provides power to connected door stations and indoor monitors whilst facilitating video, audio, and data communication between devices over a simplified two-wire infrastructure. This eliminates the need for separate power supplies at each device location and reduces the complexity of cabling throughout the building.

How many devices can be connected to a single DS-KAD706Y distributor?

The DS-KAD706Y features six two-wire cascade interfaces for connecting door stations, indoor monitors, and other two-wire devices. The exact number of devices that can be connected depends on the power requirements of each device and the specific configuration. Channels 1-5 each support devices consuming less than 6W, whilst channel 6 can support devices consuming up to 16W, allowing for higher-power equipment such as main door stations with cameras.

Can I expand the system beyond six ports?

Yes, the DS-KAD706Y includes two dedicated cascade interfaces specifically designed for connecting additional DS-KAD704Y, DS-KAD706Y, or DS-KAD706Y-S series distributors. This cascading capability allows you to significantly expand system capacity for large buildings, apartment complexes, or multi-building installations. Multiple distributors can be daisy-chained together to serve dozens or even hundreds of connected devices depending on system design requirements.

What power supply does the DS-KAD706Y require?

The DS-KAD706Y operates on 24 VDC input power. Hikvision offers compatible power supply units such as the DS-KAW60-2N specifically designed for powering two-wire intercom distributors. The 24 VDC power supply should be sized appropriately based on the total number of connected devices and their power consumption requirements across all connected distributors in the system.

What do the eight LED indicators show?

The eight LED indicators on the front panel provide real-time visual status monitoring for the distributor’s interfaces and operational state. These indicators typically show power status, network connectivity, and activity on each of the connected ports, allowing installers and maintenance technicians to quickly diagnose system status and identify potential connection issues without requiring diagnostic equipment or software interfaces.

Where should the DS-KAD706Y be installed?

The DS-KAD706Y is designed for installation in controlled indoor environments such as equipment rooms, electrical closets, server rooms, or building technical spaces where temperature remains between -10°C and 55°C. The unit features DIN rail mounting, making it suitable for installation in standard electrical enclosures alongside other building automation and security equipment. It should be located centrally to minimize cable runs to connected devices.

What is the difference between channels 1-5 and channel 6?

Channels 1-5 are designed for standard two-wire devices with power consumption less than 6W each, suitable for most indoor stations and secondary door stations. Channel 6 provides higher power output (up to 16W), making it suitable for main door stations that incorporate cameras, displays, card readers, or other power-intensive components. This differentiation allows optimal power allocation across the system.

What is the RJ-45 interface used for?

The RJ-45 Ethernet interface connects the DS-KAD706Y distributor to the building’s IP network infrastructure. This connection enables the two-wire intercom system to communicate with network-based components such as management software, mobile apps, and integration with other security systems. The network connection also facilitates remote configuration, monitoring, and firmware updates for the distributor and connected devices.

Can the DS-KAD706Y be used outdoors?

No, the DS-KAD706Y is designed for indoor installation in controlled environments with temperatures between -10°C and 55°C. The unit is not weatherproof and should be installed in electrical enclosures or equipment rooms that protect it from moisture, dust, and extreme temperatures. Outdoor door stations and other exposed devices can be connected to the distributor, but the distributor itself must remain in a protected indoor location.

What is the purpose of the reset button?

The reset button provides a physical method for restarting the distributor or restoring it to default settings during troubleshooting or maintenance procedures. This can be useful for resolving communication issues, recovering from configuration errors, or preparing the unit for redeployment. The specific reset functionality (soft reset vs. factory reset) typically depends on how long the button is pressed, as detailed in the user manual.

What are the dimensions of the DS-KAD706Y?

The DS-KAD706Y measures approximately 143.69mm wide × 90mm high × 66.96mm deep (5.66″ × 3.54″ × 2.64″). These compact dimensions allow the unit to fit in standard DIN rail electrical enclosures alongside other system components. When planning installation, ensure adequate space around the unit for cable management and ventilation, particularly when multiple distributors are installed in the same enclosure.

Is the DS-KAD706Y compatible with older Hikvision intercom systems?

The DS-KAD706Y is specifically designed for Hikvision’s two-wire video intercom systems and is compatible with two-wire door stations and indoor monitors from the appropriate product families. It may not be compatible with older analog intercom systems or different architectural generations of Hikvision intercom products. Always verify compatibility with your specific door stations and indoor monitors before ordering, and consult with a Hikvision authorized dealer for system design assistance.

How does the cascading function work with multiple distributors?

The two dedicated cascade interfaces on the DS-KAD706Y allow you to connect it to other DS-KAD704Y, DS-KAD706Y, or DS-KAD706Y-S distributors in a daisy-chain configuration. Each distributor in the cascade adds additional ports for connecting devices, whilst the network connection and power distribution are coordinated across the entire cascade. This enables scalable system growth without requiring major infrastructure changes as building requirements expand.

What maintenance does the DS-KAD706Y require?

The DS-KAD706Y is designed for low-maintenance operation. Regular maintenance should include visual inspection of LED indicators to verify normal operation, checking cable connections for security, ensuring adequate ventilation around the unit, and keeping the installation environment within specified temperature ranges. Firmware updates may be released periodically by Hikvision to add features or address issues, which can typically be applied remotely through the network connection.

Can I mix different distributor models in a cascaded system?

Yes, the DS-KAD706Y supports cascading with DS-KAD704Y, DS-KAD706Y, and DS-KAD706Y-S series distributors. This flexibility allows you to design systems using different distributor models based on specific requirements for each floor or section of a building. However, proper system design should ensure that total power consumption and device counts remain within the capabilities of the combined distributors and power supply infrastructure.
