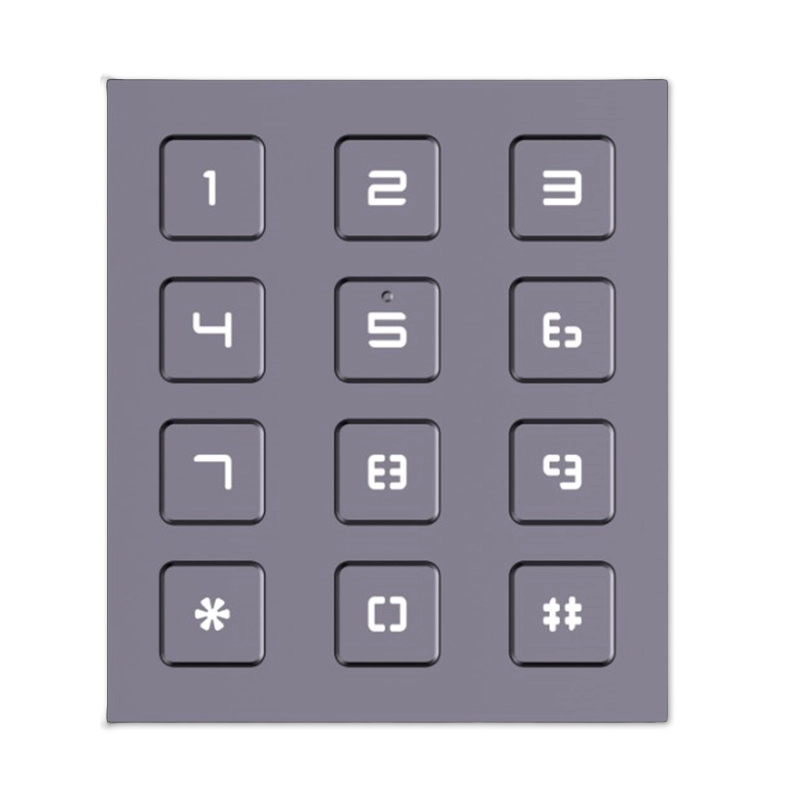

Hikvision DS-KD-KP | Modular Pin Code Keypad Module | IP65, IK07 Vandal Resistant

FAQs

What is the DS-KD-KP keypad module used for?

The DS-KD-KP keypad module serves two primary functions: it allows authorized users to unlock doors by entering PIN codes, and it enables visitors to call indoor stations by entering room numbers on the keypad. This dual functionality makes it ideal for buildings where both access control and visitor communication are required, such as apartment complexes, office buildings, and gated communities.

Which door stations is the DS-KD-KP compatible with?

The DS-KD-KP is compatible with Hikvision’s KD8 Series Pro modular door station systems, including the DS-KD8003-IME series modular door stations, DS-KD8003Y-IME2 two-wire main units, and DS-KD7003EY-IME2 two-wire door stations. The module connects via RS-485 interface, making it part of the flexible and expandable KD series ecosystem that allows you to customize your entry system with various functional modules.

Is the keypad suitable for outdoor installation?

Yes, the DS-KD-KP is specifically engineered for outdoor deployment. It features both IP65 weatherproof protection (safeguarding against dust and water jets) and IK07 vandal-resistant rating (protecting against physical impact). The module operates reliably in extreme temperatures ranging from -40°C to 55°C and humidity levels from 10% to 95%, making it suitable for installation in diverse climatic conditions and unsupervised public locations.

How is the keypad backlit for nighttime use?

The DS-KD-KP features backlight compensation behind the keypad buttons, ensuring excellent visibility in all lighting conditions including complete darkness. This backlighting automatically illuminates the buttons, allowing users to clearly see the numbers and symbols for PIN entry or room number calling regardless of ambient lighting conditions, from bright sunlight to nighttime use.

What installation methods are supported?

The DS-KD-KP supports both flush mounting and surface mounting installation methods. For flush mounting, you create an installation cavity in the wall and mount the module within a mounting box. For surface mounting, the module attaches to a mounting frame fixed to the wall surface. Both methods are designed for modular configurations, allowing the keypad to be installed alongside other modules such as cameras, card readers, or nametag modules as part of a comprehensive entry system.

How much power does the keypad module consume?

The DS-KD-KP has extremely low power consumption at just 1W, making it one of the most energy-efficient modules in the system. Power is supplied through the RS-485 module-connecting interface from the main door station unit or distributor, eliminating the need for separate power supplies and simplifying installation.

Can I use the keypad module independently without a main door station?

No, the DS-KD-KP is a sub-module that must be connected to a compatible Hikvision main door station unit via RS-485 interface. The main unit provides power, processing, and network connectivity for the entire system, whilst the keypad module extends functionality by adding PIN code access and calling capabilities. Configuration of the keypad is performed through the web interface of the connected main door station.

How do I configure PIN codes for door access?

PIN codes are configured through the web interface of the connected main door station unit. After logging into the door station’s web client, administrators can create user accounts, assign PIN codes, set access permissions, and configure door unlock parameters. The specific configuration steps will vary depending on the model of the main door station, so refer to the main unit’s user manual for detailed instructions.

What is the IK07 vandal-resistant rating?

The IK07 rating indicates the keypad’s resistance to mechanical impact. According to the IK code standard (IEC 62262), IK07 means the device can withstand an impact energy of 2 joules, equivalent to a 0.5kg mass dropped from 400mm height. This level of protection ensures the keypad can resist deliberate vandalism attempts, accidental impacts, and rough handling in public access areas, making it suitable for unsupervised outdoor installations.

Can multiple people use the same PIN code?

This depends on how the system is configured through the main door station’s web interface. The access control functionality is managed by the main unit, which determines whether PIN codes must be unique or can be shared. For security purposes, most installations assign unique PIN codes to individual users to maintain accountability and allow for selective code deactivation. Consult your system administrator or the main door station’s user manual for specific configuration options.

How do visitors call an indoor station using the keypad?

Visitors can call an indoor station by entering the room number or apartment number using the numeric keypad and then pressing a designated button (typically * or #, as configured in the system settings). The main door station processes this input and initiates a call to the corresponding indoor station. The exact calling procedure may vary based on system configuration, and clear instructions should be posted near the entrance for visitor convenience.

What are the physical dimensions of the keypad module?

The DS-KD-KP measures 98.5mm (W) × 100mm (H) × 34.2mm (D), or approximately 3.87″ × 3.95″ × 1.33″. This compact size matches the dimensions of other modules in the KD8 series, allowing for seamless integration in modular configurations. The module weighs just 265g (net weight), making it lightweight yet robust enough for outdoor installation.

Does the keypad provide tactile or audio feedback when buttons are pressed?

While the technical specifications don’t explicitly detail tactile or audio feedback features, most professional access control keypads provide some form of feedback to confirm button presses. This typically includes audible beeps and/or visual indicators (such as LED flashing) to acknowledge input. The specific feedback mechanisms should be confirmed with your Hikvision dealer or by consulting the detailed user manual for the complete system.

Can the keypad be used in combination with card readers?

Yes, the modular architecture of the KD8 series allows you to combine the DS-KD-KP keypad module with other modules including card reader modules (such as the DS-KD-M). This provides multiple authentication methods in a single installation, allowing users to choose between PIN code entry, card presentation, or both (for two-factor authentication). The modules connect to the same main door station unit via RS-485 interfaces.

What happens if someone enters an incorrect PIN code?

The main door station manages authentication and security policies, including handling incorrect PIN entries. Typical systems implement lockout mechanisms after a certain number of failed attempts to prevent brute-force attacks. The specific behavior (number of allowed attempts, lockout duration, administrator notifications) depends on the configuration of the main door station. These security parameters should be configured according to your facility’s security requirements.
