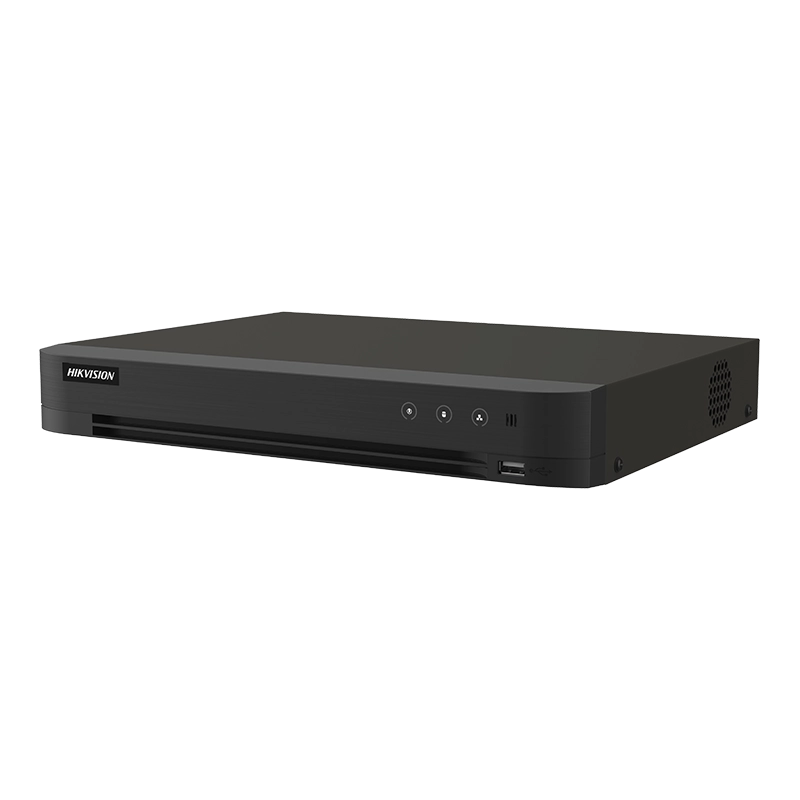

Hikvision iDS-7204HTHI-M1/XT | 4-Channel 8MP AcuSense DVR | Face Recognition & Deep Learning

FAQs

What is AcuSense technology and how does it benefit my system?

AcuSense is Hikvision’s deep learning technology built into this DVR that adds intelligent human and vehicle detection to cameras connected to it, even if those cameras don’t have native AI capabilities. When you connect standard analogue cameras (HDTVI, AHD, CVI) to this DVR, the recorder’s processor analyzes the video and accurately distinguishes between humans, vehicles, and other moving objects like animals or swaying trees. This dramatically reduces false alarms – instead of alerting you every time a cat walks past or wind moves vegetation, the system only triggers on genuine security events involving people or vehicles. This makes your security system far more practical and reduces alert fatigue.

Can I use this DVR with my existing analogue cameras?

Yes, absolutely. This DVR is specifically designed for hybrid installations and accepts multiple analogue formats including HDTVI, AHD, CVI and traditional CVBS cameras. You can connect up to 4 analogue cameras via BNC connectors, recording at resolutions up to 8MP depending on camera capability and format. The beauty of this recorder is that it adds AcuSense AI functionality to all your existing analogue cameras without needing to replace them. If you later want to add IP cameras, you can incorporate up to 8 IP channels (4 standard plus 4 in enhanced mode) running alongside your analogue cameras, providing a flexible migration path as your system grows.

What’s the difference between facial recognition and perimeter protection modes?

The DVR offers two distinct AI operation modes that cannot run simultaneously – you must choose based on your primary security need. Facial recognition mode supports 2 channels and enables the DVR to detect faces, compare them against up to 16 stored face libraries, and trigger alerts when matches occur. This is ideal for access monitoring, VIP recognition, or person-of-interest tracking. Perimeter protection mode supports 4 channels and provides line crossing detection, intrusion detection, region entrance, and region exit analytics with human and vehicle classification. This is better suited for property boundary protection, securing restricted areas, or monitoring vehicle access. Choose facial recognition for identity verification applications or perimeter protection for area security.

How many cameras can I actually connect to this 4-channel DVR?

Despite being called a 4-channel DVR, this unit can actually handle up to 8 total camera channels through its hybrid capability. You get 4 dedicated analogue BNC inputs for HDTVI/AHD/CVI/CVBS cameras, plus 4 standard IP camera channels over the network. Additionally, the DVR supports an “enhanced IP mode” that allows a further 4 IP cameras to be added, reaching a maximum of 12 channels total (4 analogue + 8 IP). However, AI features like AcuSense operate on specific channel limits: human/vehicle detection on up to 4 channels, facial recognition on 2 channels, or perimeter protection on 4 channels. Each IP channel supports up to 8MP resolution, making this recorder suitable for small to medium installations requiring format flexibility.

What is coaxitron and why is it useful?

Coaxitron is Hikvision’s technology that allows audio signals to be transmitted over the same coaxial cable as video, eliminating the need for separate audio cabling. This DVR supports 4 audio input channels via coaxial cable in addition to its standard RCA audio input. For installations with existing coaxial cabling infrastructure, this means you can add audio monitoring to cameras without running new cables – the audio simply travels alongside the video on the existing coax. This is particularly valuable in retrofit projects or when audio is needed at locations where running additional cables would be difficult or expensive. The DVR also supports HDTVI two-way audio, enabling communication through compatible cameras.

How does H.265 Pro+ compression benefit storage and bandwidth?

H.265 Pro+ is Hikvision’s enhanced compression technology that can reduce file sizes by up to 50% compared to standard H.265 and up to 75% compared to H.264, whilst maintaining the same image quality. This means you can record for approximately twice as long on the same hard drive capacity, or alternatively use a smaller capacity drive to achieve your retention requirements. For example, if H.264 required a 4TB drive for 30 days retention, H.265 Pro+ might achieve the same with a 2TB drive. The bandwidth savings are equally significant – remote viewing and network camera streams consume less network capacity, reducing the load on internet connections and switches. This is particularly beneficial in bandwidth-constrained installations or when accessing cameras remotely over limited internet connections.

What hard drive capacity should I install?

The DVR supports a single SATA interface with up to 12TB capacity per drive. Your required capacity depends on several factors: number of cameras, resolution, frame rate, compression format, recording schedule, and desired retention period. As a rough guide with H.265 Pro+ compression, recording 4 cameras at 8MP/15fps continuously might require approximately 2-3TB per month. For typical installations recording on motion only (which might represent 30% activity), this could extend to 6-9TB monthly capacity. Hikvision provides storage calculator tools for precise requirements. For cost-effectiveness, many installers start with 2-4TB drives for standard applications, reserving the 12TB maximum for installations requiring extended retention or continuous recording at high resolutions.

Can this DVR work with my existing network video management system?

Yes, the DVR supports ONVIF protocol for integration with third-party video management systems (VMS). It can function as an ONVIF device, allowing compatible VMS platforms to discover it, connect to camera streams, and control recording functions. However, some advanced features like AcuSense analytics and facial recognition may require Hikvision’s native software (iVMS-4200, Hik-Connect, or Hik-Central) to access full functionality. The DVR also supports standard protocols like TCP/IP, RTSP and provides both HDMI/VGA local output and network streaming, giving flexibility in how you monitor and manage the system. For remote access, Hik-Connect provides easy cloud-based connectivity without complex network configuration.

Does the DVR come with a hard drive included?

No, the iDS-7204HTHI-M1/XT is supplied without a hard drive – you must purchase and install one separately. This allows you to choose the appropriate capacity for your specific retention requirements and budget. The DVR accepts any standard 3.5″ SATA hard drive up to 12TB capacity, though surveillance-grade drives (like Western Digital Purple or Seagate SkyHawk) are strongly recommended over desktop drives. Surveillance drives are engineered for 24/7 operation, optimized for continuous write operations, and typically include enhanced error correction. Using desktop drives may result in premature failure or recording issues. The ≤15W power consumption specification is without HDD; add approximately 5-8W for a typical surveillance drive’s power consumption.
