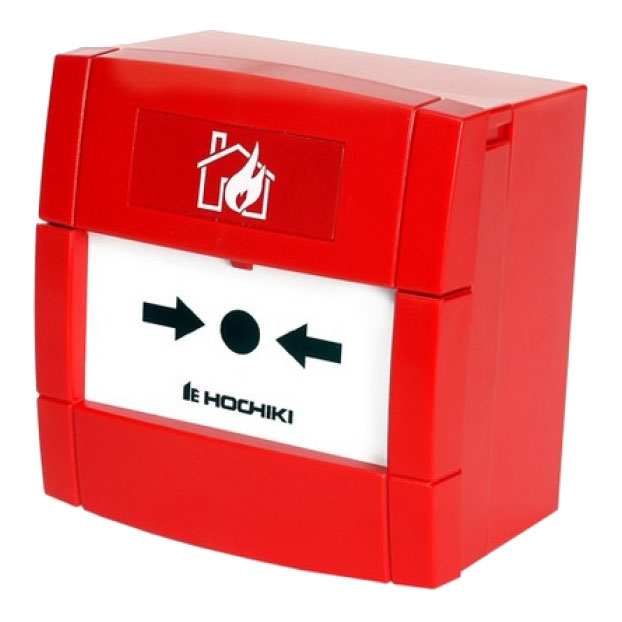

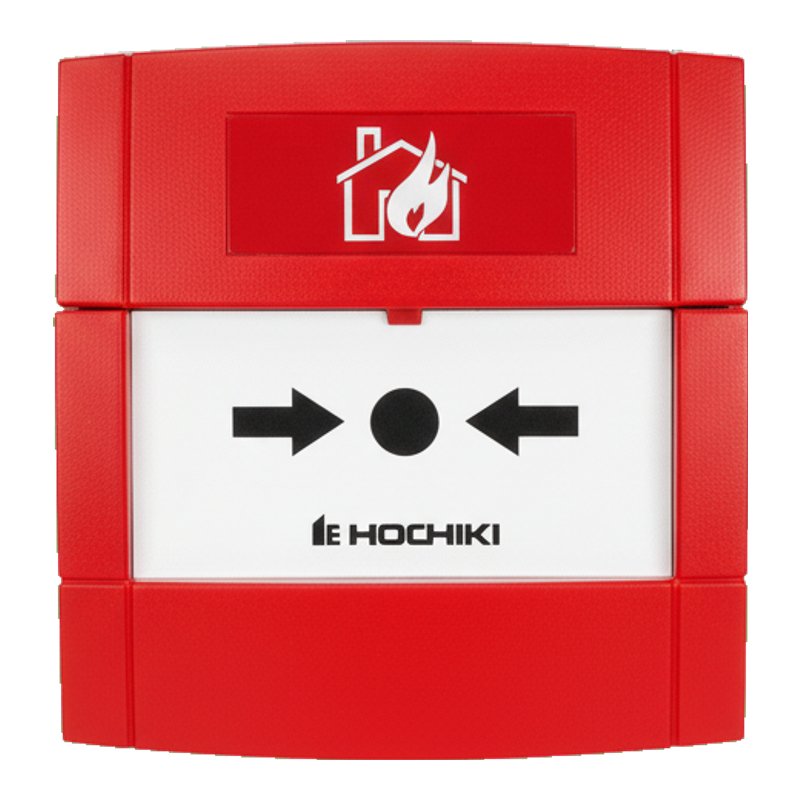

Hochiki CDX Conventional Indoor Manual Call Point
£7.27 (inc VAT: £8.72)
Summary
The Hochiki CCP-E is a conventional manual call point designed for reliable performance in fire detection systems. It features an industry-standard KAC world series housing, making it easy to install with push-fit wiring terminals. The CCP-E supports both ‘Frangible Glass’ and ‘Non Frangible Plastic’ elements, providing flexibility for different installation needs. This call point is approved to EN54-11:2001 standards, ensuring compliance with safety regulations.
Features
- Industry standard KAC world series housing
- Easy to install push-fit wiring terminals
- Supports frangible glass or non-frangible plastic elements
- Approved by LPCB for red variant
Specifications
- Ordering Codes :
- CCP-E : Red
- CCP-EB : Blue
- CCP-EO : Orange
- CCP-EY : Yellow
- Nominal Operating Resistance : 470 Ω
- Maximum Contact Resistance (R) : 200 Ω
- IP Rating : IP24
- Operating / Storage Temperature Range : -10 °C to +55 °C
- Maximum Humidity : 95% RH – non-condensing (at 40°C)
- Colour / Case Material : Red, Blue, Orange or Yellow / ABS
- Weight (g) / Diameter (mm) / Height (mm) : 110 / W 89 x H 93 x D 27.5 (Flush mount), 161 / W 89 x H 93 x D 59.5 (Flush mount)
Downloads
- Datasheet (Adobe PDF)
