Hochiki ESP Addressable Blue Manual Call Point with SCI
£27.28 (inc VAT: £32.74)
Summary

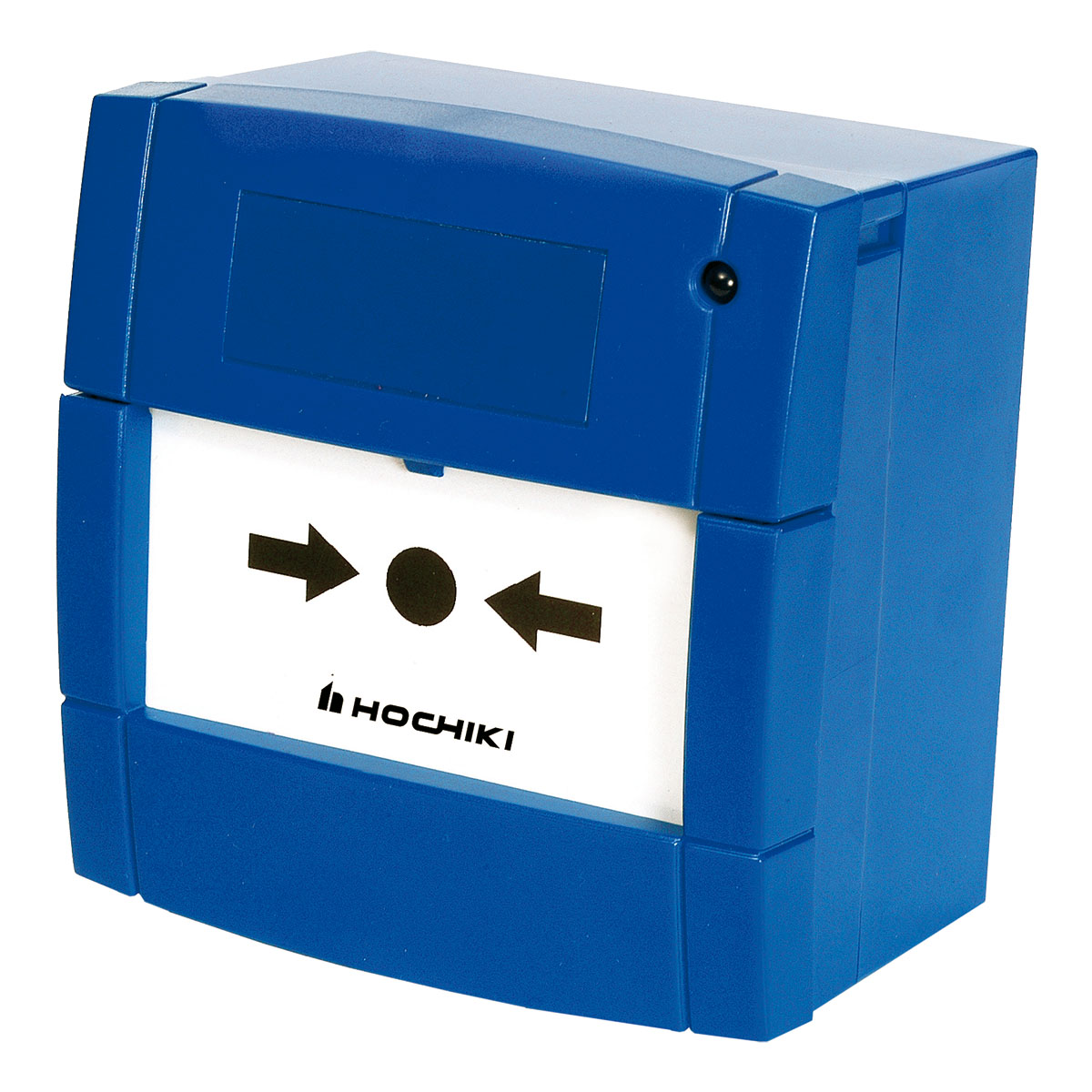

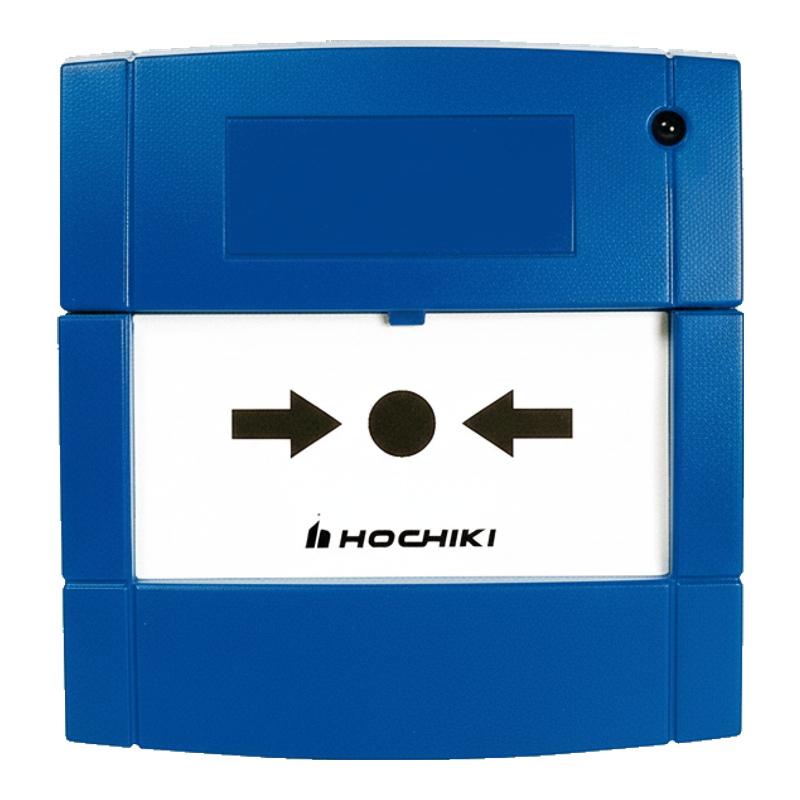

The Hochiki HCP-E(BLU)-SCI is a blue advanced analogue manual call point equipped with an integral short-circuit isolator, designed for seamless integration with Hochiki’s ESP analogue addressable protocol. This device features a bi-coloured LED for clear status indication and is engineered for fast response in emergency situations. The HCP-E(BLU)-SCI is suitable for both surface and flush mounting, with an optional glass element available for enhanced functionality. It is LPCB approved to EN54-11 standards and offers reliable performance with a built-in test function to ensure device integrity at all times.
Features
- Non-frangible element fitted as standard (conforms to EN54)
- Addressed with TCH-B200 hand held programmer
- Surface or flush mounting (requires SR mounting box for surface mounting)
- LPCB approved to EN54-11
- SIL Level 2 approved and ‘SMOKE VENT’ label printed variant available
Specifications
- Ordering Codes : HCP-E(BLU)-SCI
- Backbox Ordering Code : SR MOUNTING BOX (required for surface fixing)
- Ingress Protection Rating : IP24
- Colour / Case Material : Blue / Modified Polyphenylene Oxide
- Operating Voltage : 17-41VDC
- Low Power Mode : 180 µA (max), 100 µA (typ)
- Quiescent Current : 350 µA (max), 250 µA (typ)
- Alarm Current : 10.0 mA (max), 5 mA (typ)
- Resistance In Positive : 100 mΩ when closed (max), 100 kΩ when open (min)
- Short Circuit Threshold (typ.) : 430 Ω
- Transmission Method : Digital Communication Using ESP
- Operating Temperature Range : -10°C to +50°C
- Storage Temperature Range : -30°C to +70°C
- Max Humidity : 95%RH Non-condensing (at 40°C)
- Weight (g) / Dimensions (mm) : 110 / W 89 x H 93 x D 27.5 (With Surface Mount Back Box 161 / W 89 x H 93 x D 59.5)
