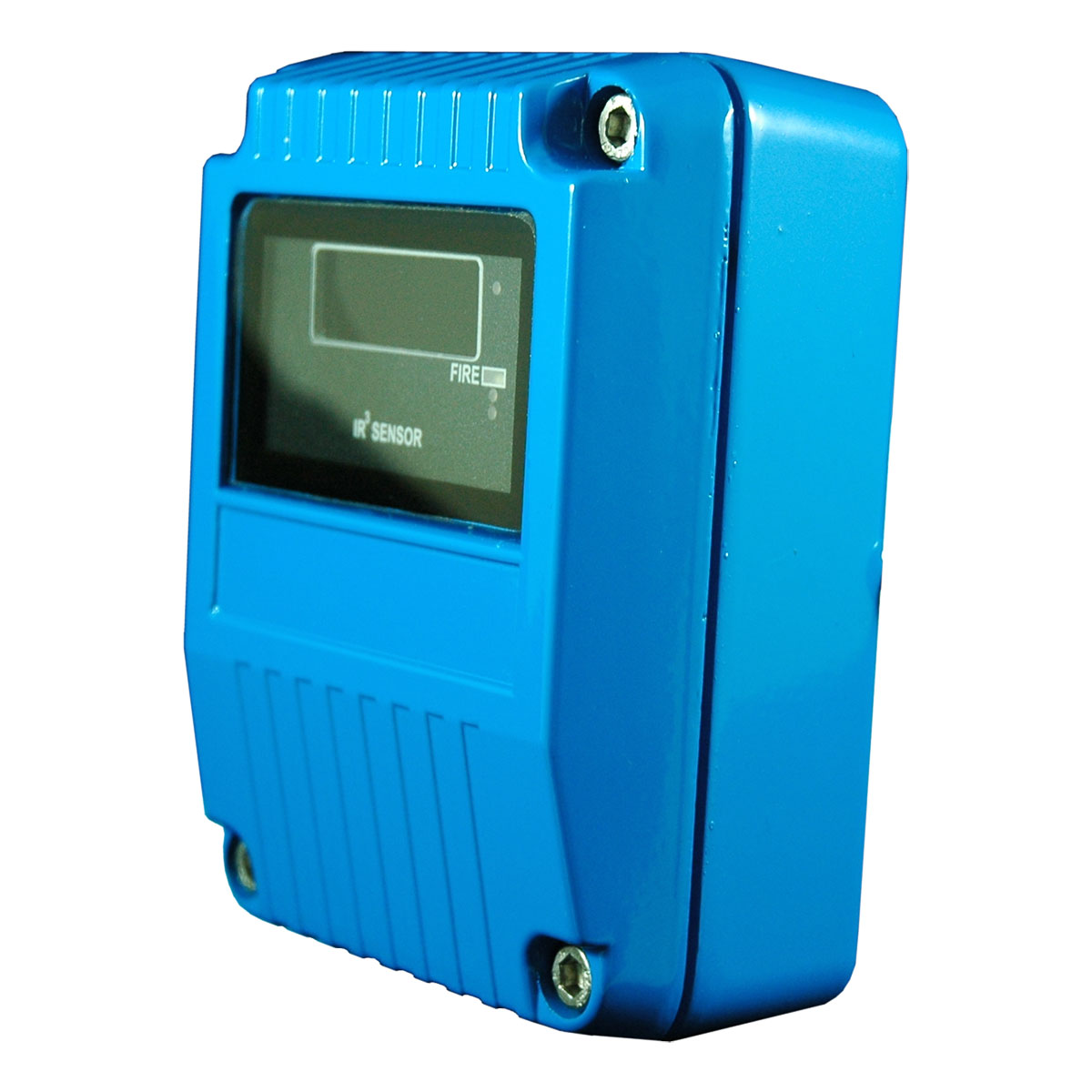

Hochiki Industrial IR3 Infra-Red Flame Detector
£2,229.33 (inc VAT: £2,675.20)
Summary
The Hochiki IFD-E is an advanced Industrial IR3 Infra-Red Flame Detector designed to detect open flaming fires by responding to the light emitted from flames during combustion. It is ideal for environments where flames from burning substances such as aviation fuels, butane, grain, hydrogen, paper, natural gas, and petrol may be expected. This detector is engineered to be unaffected by environmental factors such as convection currents, draughts, or wind, and is tolerant of fumes, vapours, dust, and mist, ensuring reliable performance in challenging conditions.
Features
- Selectable response speed
- Class 1 performance as defined in BS EN54-10:2002 (on the high sensitivity setting)
- Optical self-test
- FM, CPR, LPCB, VdS, and SIL 2 Approved
Specifications
- Operating Voltage : 14 – 30 VDC
- Alarm Current : 9 ~ 28 mA (selected via by DIL switches)
- Test Signal Voltage : 14 to 30 VDC
- Relay Contact Ratings : Current 1.0 A (max), Voltage 50 VDC (max), Power 30 W (max) (resistive loads only)
- Power Up Time : 2 seconds (max)
- Field Of View : 90° minimum Cone
- Range – Class 1 : 0.1 m2 n-heptane at 25m
- Range – Class 3 : 0.1 m2 n-heptane at 12m
- Operating Wavelength Band : IR (0.75 ~ 2.7 µm)
- Operating Temperature Range : -10 °C to +55 °C
- Storage Temperature Range : -20 °C to +65 °C
- Maximum Humidity : 95% RH – Non-condensing (at 40°C)
- Ingress Protection Rating : IP66
- Colour / Case Material : Blue / Die-cast Zinc alloy (ZA12)
- Weight (kg) / Dimensions (mm) : 2 / H 142 x W 108 x D 82
- Note : This product is not suitable for use in Intrinsically Safe areas. See model IFD-E(IS)
