Identi-Cryer Lockdown Call Point
£16.21 (inc VAT: £19.45)
Summary

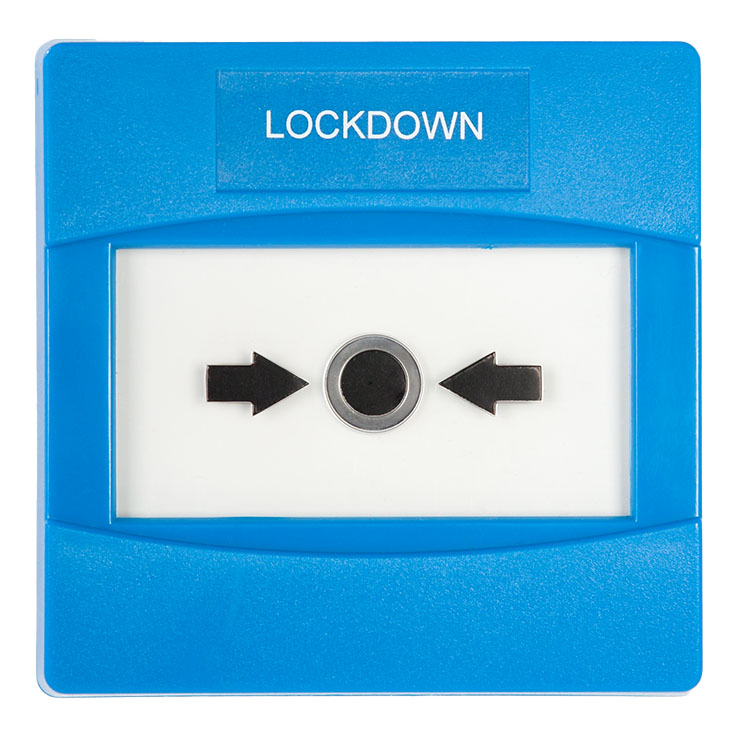

The Vimpex Sycall Reset-Glow SY-BD02 is a dual-mounting resettable manual call point in blue that replicates the tactile response of breaking glass whilst offering the economic and environmental advantages of a resettable operating element. Designed for professional fire alarm installations, this call point requires no disassembly for routine testing or resetting, significantly reducing maintenance time and costs throughout its operational lifetime.
Upon activation, a highly visible alarm flag rises into the viewing window to provide clear confirmation of operation, ensuring every test delivers genuine verification of functionality. The luminescent operating element remains visible for up to eight minutes following activation, aiding emergency response in low-light conditions. The unit features independent double pole changeover contacts supporting up to 3A at 250V AC, providing reliable signalling for conventional fire alarm systems.
The dual-mounting design accommodates both flush and surface installation requirements without requiring different models, streamlining stock management and installation planning. Simple key-operated resetting restores the call point to operational status immediately after testing or false alarms, eliminating the consumable costs and environmental impact associated with traditional break-glass elements whilst maintaining the familiar tactile operation that building occupants expect from fire alarm call points.
Features
- Resettable operating element mimics break-glass feel without replacement costs
- Visible alarm flag indicator rises upon activation for clear confirmation
- Luminescent element visible for up to 8 minutes after activation
- Dual mounting capability for flush or surface installation
- Independent double pole changeover contacts for flexible wiring configurations
- Key-operated reset for immediate reuse after activation
- No moving parts accessible to users ensuring reliable operation
- IP42 rated enclosure protects against dust and moisture
- Wide operating temperature range from -30°C to +70°C
- High insulation resistance exceeding 100 Mohms at 500V DC
- Compatible with Smart+Guard protective covers with optional sounders
- Accepts cable terminations from 0.5mm² to 2.5mm²
- Manufactured from durable ABS, polycarbonate and PA6 glass fibre materials
- Blue colour suitable for emergency evacuation alert or disabled refuge systems
FAQs
What is the difference between the SY-BD02 and break-glass call points?
The SY-BD02 features a resettable plastic element that mimics the tactile feel of breaking glass but eliminates ongoing replacement costs. After activation, simply use the reset key to restore the call point to operational status immediately, removing the need to stock and replace glass elements whilst maintaining the familiar tactile response that building occupants expect from fire alarm call points.
Can the SY-BD02 be installed flush or surface mounted?
Yes, the dual-mounting design accommodates both installation methods using the same call point. For flush mounting, the unit measures 88mm x 87mm x 25mm, whilst surface mounting extends to 88mm x 87mm x 30mm. This flexibility reduces stock requirements as you don’t need separate models for different mounting applications.
What does the luminescent element feature do?
The luminescent operating element remains visible for up to eight minutes following activation, providing extended visual confirmation in low-light conditions or during power failures. This aids emergency response personnel in quickly identifying which call point was activated, particularly valuable in large buildings or complex layouts where multiple call points are installed.
How do the independent double pole contacts work?
The SY-BD02 features two completely independent changeover contacts, each rated for 3A at 250V AC or 5A at 125V AC. This configuration allows flexible wiring arrangements for conventional fire alarm systems, enabling separate alarm and fault monitoring circuits or integration with building management systems requiring isolated contact inputs.
What protective covers are compatible with this call point?
The SY-BD02 is compatible with the full range of Smart+Guard protective covers, available in flush or surface mounting configurations with or without integral sounders. These robust covers deter false alarms caused by accidental activation whilst maintaining emergency access, and can be specified in colours matching your call point for visual consistency.
What is the operating temperature range for the SY-BD02?
The call point operates reliably across a temperature range of -30°C to +70°C, making it suitable for both internal environments and covered external applications such as car parks, loading bays, or covered walkways where temperature extremes may occur. The robust ABS, polycarbonate and PA6 glass fibre construction maintains performance across this wide range.
Specifications
- Product Code: SY-BD02
- Colour: Blue
- Mounting Type: Dual (Flush or Surface)
- Contact Configuration: Double Pole Changeover
- Number Of Independent Poles: 2
- Maximum Current: 3A @ 250V AC, 5A @ 125V AC
- Insulation Resistance: >100 Mohms @ 500V DC
- Cable Termination: 0.5 – 2.5mm²
- Operating Temperature: -30°C to +70°C
- Humidity Range: 0-95%
- IP Rating: IP42
- Material: ABS/Polycarbonate/PA6+Glass Fibre
- Luminescent Duration: Up to 8 minutes
- Dimensions Flush Mount: 88mm x 87mm x 25mm (W x H x D)
- Dimensions Surface Mount: 88mm x 87mm x 30mm (W x H x D)
- Reset Method: Key-operated
- Visual Indicator: Rising alarm flag
- Compatible Accessories: SY-PC01 Hinged Cover, SY-FMP01 Flush Plate, Smart+Guard Covers
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| Device Type |
