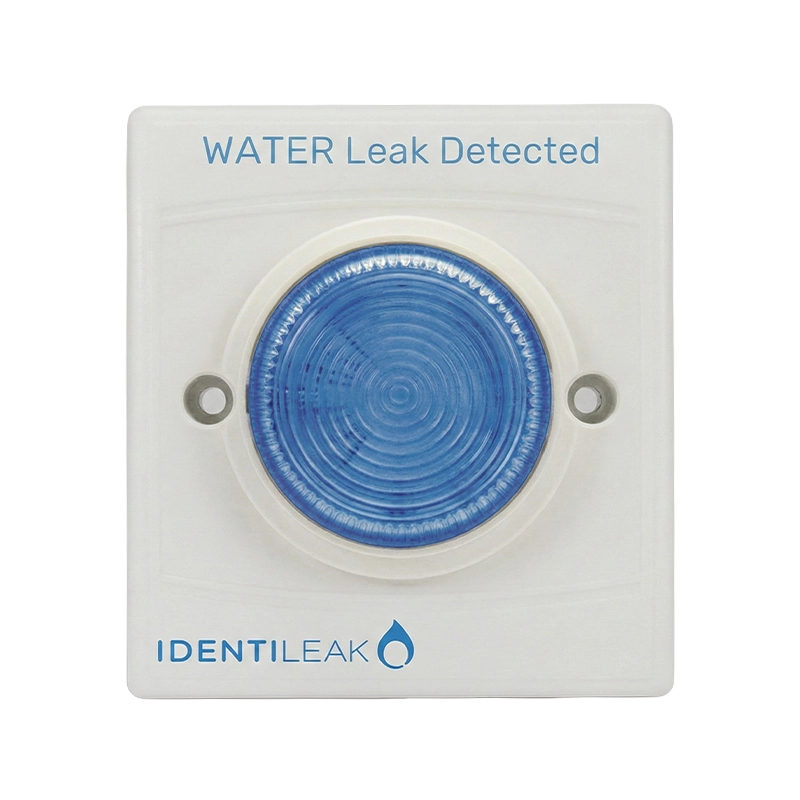

Identi-Leak IL-SB | Water Leak Sounder Beacon | Blue Visual Indicator, Low Profile

FAQs

What are the advantages of the combined sounder/beacon over sounder-only?

The IL-SB sounder/beacon provides both audible and visual alarm notification, significantly improving alarm awareness in challenging environments. The dual-mode approach ensures alarms are noticed in noisy plant rooms where audible alarms may be difficult to hear, and in areas where personnel may not have direct line of sight to visual indicators. The combination maximizes response effectiveness by providing redundant alarm indication through multiple sensory channels.

Why is the beacon blue instead of red or amber?

The blue beacon colour is specifically chosen to differentiate water leak alarms from other building systems. Red beacons typically indicate fire alarms requiring building evacuation, while amber often signals caution or non-critical warnings. Blue creates clear visual distinction for water leak events, ensuring personnel immediately recognize the alarm type and take appropriate action such as water isolation or leak investigation rather than building evacuation, reducing confusion during emergency response.

Can I use the sounder/beacon in very noisy environments?

Yes, the IL-SB is specifically designed for effectiveness in noisy environments such as plant rooms and mechanical spaces. The integrated blue beacon ensures alarms are noticed even when audible signals are difficult to hear over ambient noise from pumps, air handling equipment or other machinery. The combination of audible and visual indication provides alarm redundancy, ensuring water escape events are detected regardless of environmental noise levels.

Is the beacon visible in normal lighting conditions?

Yes, the blue beacon is designed to provide high-visibility indication in normal ambient lighting conditions typically found in commercial and industrial environments. The distinctive blue colour and beacon intensity ensure clear visibility in plant rooms, equipment areas, corridors and other locations where the sounder/beacon is typically installed. The beacon enhances rather than replaces audible indication, providing comprehensive dual-mode alarm signalling.

How does the sounder/beacon differentiate water leak alarms from fire alarms?

The IL-SB uses multiple differentiation methods: the distinctive blue beacon colour contrasts with red fire alarm beacons, the clear “Water Leak” text branding on the device face provides immediate visual identification, and the sounder can be programmed with different tones from fire alarm sounders. This multi-layered approach ensures personnel immediately recognize water leak alarms as distinct from fire evacuation signals, enabling appropriate response without building evacuation confusion.

Can I connect multiple sounder/beacons to one panel?

Yes, multiple IL-SB sounder/beacon units can be connected to the Identileak panel’s sounder circuits, provided the total current draw does not exceed the circuit’s maximum rating. Identileak Mini panels provide 1 sounder circuit rated at 300 mA maximum, while conventional panels provide 2 sounder circuits each rated at 500 mA maximum (1A combined). Multiple units wired in parallel provide comprehensive alarm coverage across large facilities or multiple protection zones.

Does the beacon flash or remain steady during alarm?

Specific beacon operation details (flashing vs steady) are not provided in standard documentation, but water leak alarm beacons typically employ flashing operation to maximize visual attention and differentiate from steady status indicators. The flashing pattern enhances visibility and ensures the alarm condition is immediately noticed, even in peripheral vision. Consult with Vimpex technical support for detailed beacon operation specifications if required for specific installation requirements.

What mounting options are available for the sounder/beacon?

While the brochure indicates the sounder/beacon has a low-profile design suitable for unobtrusive installation, specific mounting options (flush vs surface) are not explicitly detailed for the IL-SB. Contact Vimpex directly or refer to detailed installation documentation to confirm available mounting configurations for your specific installation requirements. The compact design ensures flexible placement in critical areas regardless of mounting method.

Is the sounder/beacon suitable for outdoor installation?

The Identileak sounder/beacon is designed for indoor installation as part of the Identileak system which has an IP30 rating. While the unit can indicate the status of water detection systems protecting outdoor areas, the sounder/beacon itself should be mounted indoors in protected locations. For outdoor alarm indication requirements, the unit would need to be installed inside a suitable weatherproof enclosure with appropriate IP rating for the environmental conditions.

How do I choose between sounder-only (IL-SS) and sounder/beacon (IL-SB)?

Choose the IL-SS sounder-only for quieter environments where audible alarms are sufficient and cost is a consideration. Select the IL-SB sounder/beacon for noisy environments, areas requiring maximum alarm visibility, locations where personnel wear hearing protection, or installations requiring visual differentiation from other building alarms. The sounder/beacon provides enhanced alarm awareness and faster response times in challenging environments where comprehensive notification is critical for minimizing water damage.
