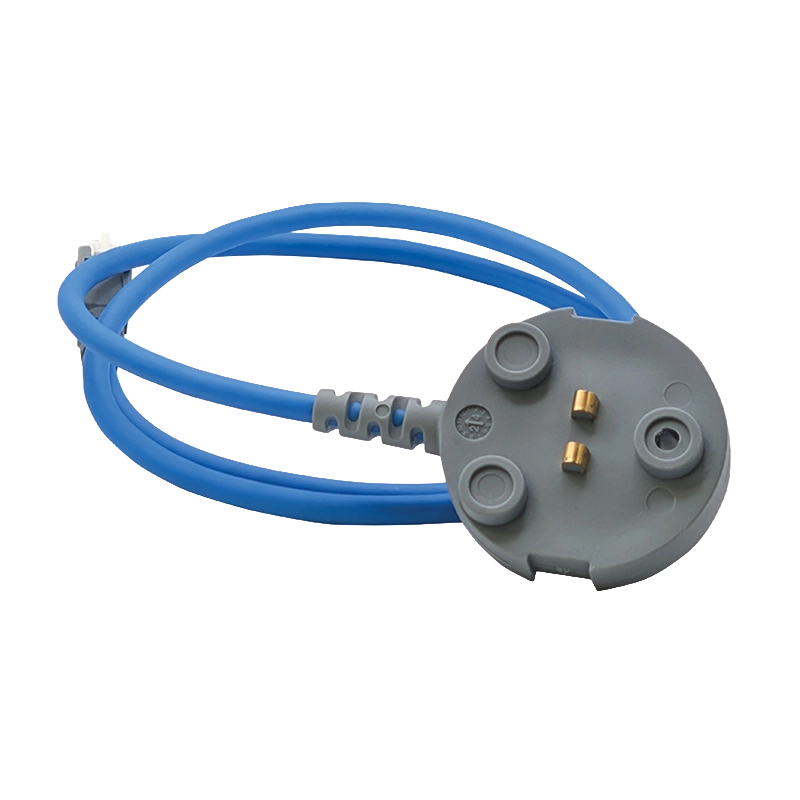

Identi-Leak IL-WDP | Water Leak Detection Probe | Point Sensor, 1m/3m
Summary
The Identi-Leak Probe provides effective point detection on solid floors, plant and pump rooms, and air conditioning drip trays. Available in 1 m and 3 m cable lengths, these probes deliver pinpoint accuracy for targeted leak monitoring in areas where precise detection is essential.
With the capability to install up to 20 probes on a single zone, the system offers flexible configuration for comprehensive coverage across multiple detection points. The probes can be combined with detection cables on the same zone using the Identi-Leak Water Leak Interface, providing versatile installation options for different site requirements.
To enhance durability and prevent damage in demanding environments, protective cages are available as optional accessories. Made in the UK and compatible with both Identi-Leak Mini and larger panel systems, these probes deliver reliable water leak detection with battery backup operation for continuous 24-hour protection, even during power outages.
Features
- Effective point detection on solid floors, plant rooms, pump rooms and air conditioning drip trays
- Available in 1 m (IL-WDP-01) and 3 m (IL-WDP-03) cable lengths
- Up to 20 probes can be installed on a single zone
- Pinpoint detection for precise leak location identification
- Protective cages available to prevent damage in demanding environments
- Can be combined with detection cable on the same zone via Water Leak Interface
- Compatible with Identi-Leak Mini Panel and larger 2, 4 and 8 zone panels
- Works with battery backup for 24-hour protection during power outages
- Made in the UK
- Suitable for data centres, IT suites, hospitals, libraries, underground networks and historical buildings
FAQs
How many Identi-Leak probes can be installed on one zone?
Up to 20 probes can be installed on a single zone, providing comprehensive point detection coverage across multiple locations.
What cable lengths are available for the Identi-Leak Probe?
The Identi-Leak Probe is available in two cable lengths: 1 m (IL-WDP-01) and 3 m (IL-WDP-03), allowing flexible installation depending on your specific site requirements.
Can I use both probes and detection cable on the same zone?
Yes, the Identi-Leak system allows you to combine both probes and detection cable on the same zone using the Water Leak Interface, providing versatile detection options for different areas.
Where are Identi-Leak probes most commonly installed?
Identi-Leak probes are ideal for point detection on solid floors, plant and pump rooms, air conditioning drip trays, and any location requiring precise leak monitoring at specific points rather than across large areas.
Are protective cages available for the probes?
Yes, protective cages are available as optional accessories to prevent damage to the probes in demanding environments or high-traffic areas.
Will the Identi-Leak Probe work during a power outage?
Yes, when connected to an Identi-Leak panel with battery backup, the probes will continue to provide 24-hour water leak detection protection even during power outages.
Specifications
- Product Code IL-WDP-01: 1 m cable length
- Product Code IL-WDP-03: 3 m cable length
- Maximum Probes Per Zone: 20
- Detection Type: Point detection
- Suitable Applications: Solid floors, plant rooms, pump rooms, air conditioning drip trays
- Mounting Options: Height adjusters available for uneven surfaces
- Optional Accessories: Protective cages, drip tray mounting kit
- Compatibility: Identi-Leak Mini Panel, 2/4/8 zone panels, Water Leak Interface
- Country Of Manufacture: United Kingdom
Downloads
- Product Brochure (Adobe PDF)
Additional information
| Length | 1m, 3m |
|---|---|
| Device Type |
