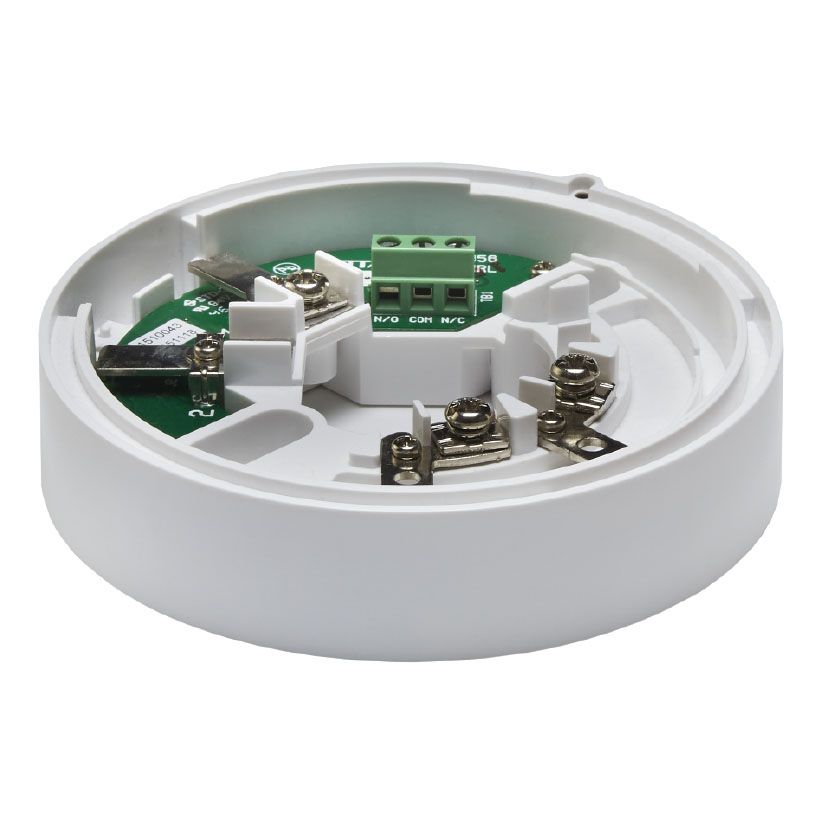

Nittan Evolution Detector Base with Output Relay
£24.71 (inc VAT: £29.65)
Summary
The Nittan EV-24VRL is a detector base equipped with an integral latching relay output, designed for compatibility with Evolution analogue addressable system devices. This device simplifies installation by eliminating the need for address setting, as it receives commands directly from the detector. It is engineered to meet rigorous standards, ensuring reliable performance in various environments.
With approvals from EN54-18: 2005 / AC: 2007, and certifications such as CPR Certificate 0905-CPR-00641 and UKCA Certificate 0359-UKCA-CPR-00010, the EV-24VRL stands as a robust choice for fire detection systems. Its design and functionality are tailored to meet the demands of modern safety requirements.
Features
- Compatible with Evolution analogue addressable system devices
- Integral latching relay output
- No need for address setting
- Tested to EN54-18: 2005 / AC: 2007 standards
- Certified with CPR and UKCA certificates
Specifications
- Operating Voltage : 20 Vdc to 38 Vdc
- Quiescent Current : 25 µA
- Alarm Current : 110 µA
- Relay Output Rating : 1 Amp (Max) @ 30 Vdc
- Ingress Protection : IP20
- Operating Temperature : -10°C to +55°C
- Storage Temperature : -25°C to +70°C
- Relative Humidity : RH 95%
- Cable Terminals : Max 2.5 mm²
- Material : PC/ABS
- Dimensions : Ø105mm x H22.5mm
- Weight : 85 g
Downloads
- Datasheet (Adobe PDF)
