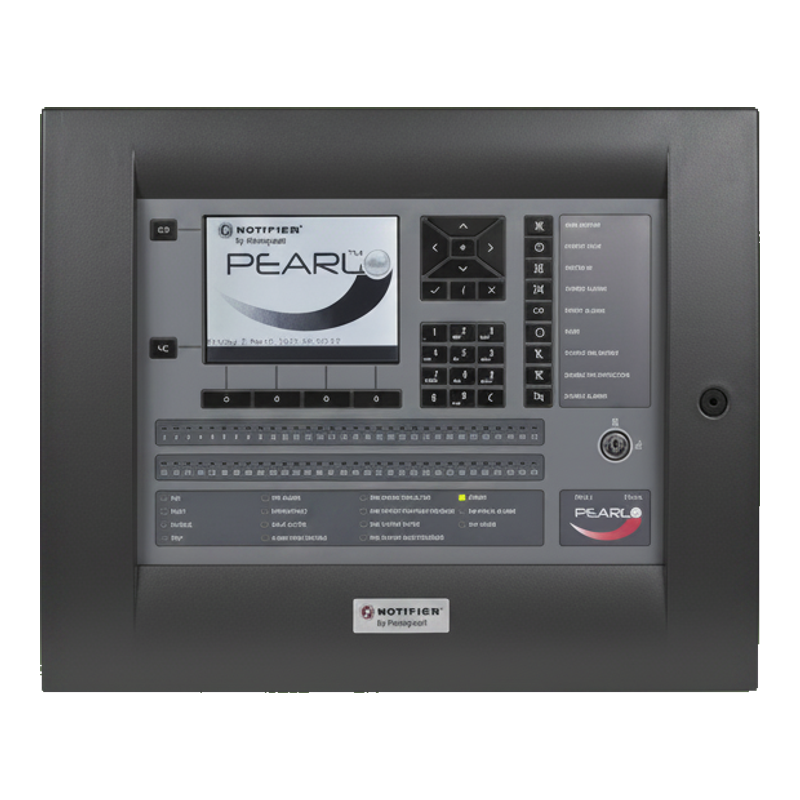

Notifier PRL-LED-EN | 2-Loop Intelligent Addressable Fire Alarm Control Panel | 64 Zone, Opal Protocol, Networkable
£1,669.76 (inc VAT: £2,003.71)
Summary
The Notifier Pearl PRL-LED-EN is a robust and intelligent 2-loop addressable fire alarm control panel that combines advanced fire detection capabilities with user-friendly operation. Utilizing Notifier’s class-leading Opal digital protocol, this networkable panel maximizes the speed and efficiency of fire detection and alarm systems while maintaining exceptional reliability.
Designed for professional fire safety installations, the Pearl features an intuitive interface with a large backlit display, 64 zone fire LEDs, and menu-driven operation for quick and easy system management. The panel’s extended capacity supports up to 636 loop devices across two loops, offering longer cable runs with fewer loops to reduce installation time and costs.
With advanced networking capabilities using ID²net technology, up to 16 Pearl panels can be networked together to control over 10,000 devices, with fire signals communicated across the network in under three seconds. The system includes comprehensive programming tools, automatic loop learning, and flexible mounting options to suit various installation requirements.
Features
- 2-loop intelligent addressable fire alarm control panel with 64 zone LED indicators
- Supports up to 159 detectors and 159 modules per loop (636 total devices)
- Opal digital protocol for fast and efficient fire detection
- Large backlit display with intuitive menu-driven interface
- Advanced ID²net networking capability – up to 16 panels networked
- Fire signal communication across network in under 3 seconds
- Loop auto-learn function for simplified commissioning
- Text programming via MS Excel spreadsheet
- Individual password-based user permissions
- Comprehensive Cause & Effect programming capability
- Panel control of detector LEDs for status confirmation
- Type B Dependency programming support
- 4 programmable soft keys and 2 programmable outputs
- Custom logo display with Day/Night mode configuration
- Multiple mounting options including 19-inch rack and flush mounting
- Extension boxes available for batteries up to 38Ah
- Class change facilities and system extensions without re-cabling
- CPD approved by LPCB (BRE) to EN54-2 for 512 fire devices
FAQ
How many devices can the Pearl control?
The Pearl 2-loop panel can control up to 636 loop devices – 159 detectors plus 159 modules per loop. When networked, up to 16 Pearl panels can control over 10,000 devices total.
What is the maximum loop length?
The maximum loop length is 3,500 meters using screened cable, though usable length may be less depending on loop loading and device requirements.
Can multiple Pearl panels be networked together?
Yes, up to 16 Pearl panels can be networked using Notifier’s ID²net technology. Fire signals are prioritized to communicate across the network in under three seconds.
What programming options are available?
The Pearl offers text programming via MS Excel spreadsheet, comprehensive Cause & Effect programming, loop auto-learn function, and individual password-based user permissions for different access levels.
What mounting options are available?
The Pearl includes a unique first-fix bracket with adaptations for 19-inch rack or flush mounting. Extension boxes are available in various configurations to accommodate batteries up to 38Ah capacity.
Is the panel approved for commercial use?
Yes, the Pearl is CPD approved by LPCB (BRE) and certified for control of 512 fire devices to EN54-2 standard, making it suitable for professional fire safety installations.
Specifications
- System Type: 2-loop intelligent addressable fire alarm control panel
- Maximum Detectors: 159 per loop (318 total)
- Maximum Modules: 159 per loop (318 total)
- Total Loop Devices: 636 maximum
- Fire Zones: 64 with LED indication
- Protocol: Opal digital protocol
- Network Capability: Up to 16 panels via ID²net
- Loop Current: 750mA maximum per loop
- Loop Length: 3,500m maximum (screened cable)
- Operating Voltage: 230VAC 50Hz
- Voltage Tolerance: +10%, -15%
- Power Supply Output: 3A continuous
- Aux DC Output: 27.5V ± 0.5V, 500mA max
- Battery Capacity: 12Ah minimum, 38Ah maximum (with extension box)
- Programmable Outputs: 2 (monitored for open/short circuits)
- Programmable Inputs: 2
- Soft Keys: 4 programmable
- Operating Temperature: 0°C to +40°C
- Relative Humidity: 5% to 95% non-condensing
- Panel Sealing: IP30 (EN60529)
- Dimensions: 435mm W x 355mm H x 145mm D
- Weight: 6kg without batteries, 12kg with 12Ah batteries
- Construction: ABS UL94-HB40 plastic
- Cable Entry: 20 holes (20mm) top, 2 holes bottom
- Certifications: EN54-2, CPD approved by LPCB (BRE)
- EMC Compliance: EN61000-6-3 (Emissions), EN50130-4 (Immunity)
- Safety Standard: EN60950
