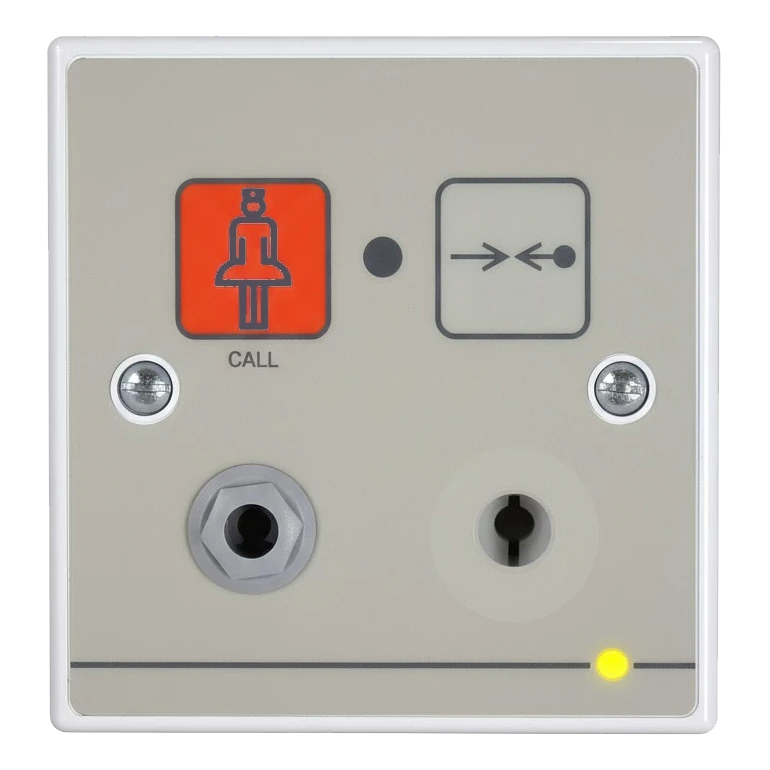

Quantec Addressable Infrared Call Point, Button Reset with Iconised Label, Sounder & Remote Socket
£48.65 (inc VAT: £58.38)
Summary
The Quantec QT602ERS is a programmable addressable call point designed for nurse call and care home applications. This feature-rich unit combines an iconised call button interface with integrated infrared technology, call follower sounder and remote connectivity options to provide comprehensive call management in healthcare environments.
Featuring both Call and Reset buttons with red/green confidence lighting, the unit accepts calls from compatible Quantec infrared transmitters through its onboard receiver. The device can be configured to generate up to seven different call levels – Standard, Ensuite, Help Required, Emergency, Attack, Presence and Attendance – allowing care facilities to prioritise and respond to different types of calls appropriately.
The QT602ERS includes a 6.35mm remote jack socket enabling connection of optional accessories such as tail call leads, pressure mats and movement detectors. Its call follower sounder feature can be utilised in Night mode to alert staff when multiple calls are waiting, whilst the comprehensive expansion connections support ancillary devices including ceiling pulls, overdoor lights and additional infrared receivers.
Features
- Programmable addressable call point with iconised label and button interface
- Integrated infrared receiver accepts calls from compatible Quantec transmitters
- Seven configurable call levels for different care priorities
- Call and Reset buttons with red/green confidence LED indicator
- 6.35mm remote jack socket for tail call leads, pressure mats and movement detectors
- Onboard call follower sounder for Night mode operation
- Programmable via QT423 configurator for flexible operation modes
- Expansion connections for ceiling pulls, overdoor lights and infrared receivers
- Compatible with standard UK 25mm single gang flush or surface back boxes
- Low power consumption with less than 3mA quiescent current
- Compact design measuring 87mm x 87mm x 33mm
- IP20 rated plastic construction
FAQ
What call levels can the QT602ERS generate?
The unit can make up to seven levels of call: Standard, Ensuite, Help Required, Emergency, Attack, Presence and Attendance. The actual call levels available depend on the configuration and ancillary devices used with the system.
Can I connect additional devices to this call point?
Yes, the QT602ERS features a 6.35mm remote jack socket that allows connection of optional tail call leads, pear pushes, pressure mats and movement detectors. Additionally, expansion connections are provided for dummy/extender overdoor lights, call points, ceiling pulls and infrared receivers.
How is the call point programmed?
The QT602ERS is programmed using a QT423 configurator, which allows the unit to be set up to operate in a multitude of different ways to suit your specific care environment requirements.
What is the call follower sounder feature?
The call follower sounder can be optionally enabled to alert staff when the Quantec system is in Night mode. If the call point is in Presence mode, it will emit a soft tone to inform staff that other calls are waiting elsewhere in the system.
What power supply does the unit require?
The QT602ERS operates from the Quantec Controller/Network at a nominal 24V DC supply. It has low power consumption with less than 3mA quiescent current and 14mA alarm current.
Can the unit accept calls from infrared transmitters?
Yes, the QT602ERS has an onboard infrared receiver that will accept calls from compatible Quantec infrared transmitters, providing wireless call capability in addition to the manual call button.
What are the installation requirements?
The unit can be mounted on a standard UK 25mm single gang flush or surface back box. It measures 87mm wide x 87mm high x 33mm deep and weighs just 74g. The unit is suitable for indoor use with an IP20 rating and operates in temperatures from -5°C to +40°C.
Specifications
- Part Number: QT602ERS
- Power Requirements: Nominal 24V DC (from Quantec Controller/Network)
- Quiescent Current: Less than 3mA
- Alarm Current: 14mA
- Indicators: Red/green confidence LED
- Controls: Iconised Call button, Iconised Reset button
- Connections: Net +; Net -; R; G; L+; SW; IR; SLV
- Expansion Connections: R; G; L+; SW; IR & SLV terminals for optional dummy/extender devices
- Remote Jack Socket: 6.35mm for tail call leads, pressure mats and movement detectors
- Onboard Sounder: Yes – Call Follower Sounder feature (Night mode)
- Onboard Infrared Receiver: Yes – accepts calls from compatible Quantec infrared transmitters
- Product Dimensions: 87mm W x 87mm H x 33mm D
- Mounting: Standard UK 25mm single gang flush or surface back box
- Construction & Finish: Plastic
- IP Rating: IP20
- Weight: 74g
- Operating Temperature: -5°C to +40°C
- Maximum Relative Humidity: 95%
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| Device Type | |
| System Type |
