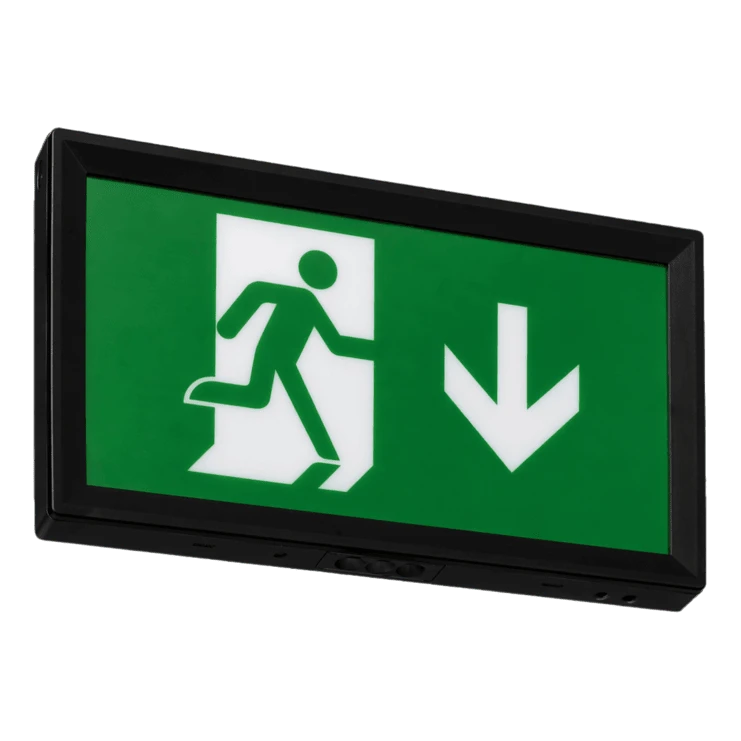

Red Arrow ART/30/ST/V2/B | Artemis Emergency Exit Box | 30m Viewing, LiFePO4 Battery, Selectable Test
£23.71 (inc VAT: £28.45)
Summary
The Red Arrow Artemis Emergency Exit Sign delivers exceptional performance with its 30-metre viewing distance, making it the ideal wall-mounting solution for commercial applications. Featuring advanced LiFePO4 battery technology and an innovative adjustable lighting source, this sleek exit sign effectively illuminates critical exit points and door openings.
Engineered for versatility, the Artemis operates in both maintained and non-maintained modes, with selectable self-test or manual test functionality for simplified maintenance. The unit comes standard with an up arrow legend, with additional legends available separately to meet specific application requirements.
Features
- 30-metre viewing distance for enhanced visibility
- LiFePO4 battery technology for superior performance and longevity
- Selectable self test or manual test functionality
- Maintained and non-maintained operation modes
- Innovative adjustable lighting source
- Sleek polycarbonate housing with black RAL 9005 finish
- Class II electrical classification for enhanced safety
- 3-hour emergency operation duration
- 96 lumens output with 30 lm/W efficacy
- Wide operating temperature range (0°C to 45°C)
- IP20 rating for indoor commercial use
- 5-year warranty for peace of mind
FAQ
What is the viewing distance of the Artemis exit sign?
The Artemis exit sign provides a 30-metre viewing distance, making it suitable for large commercial spaces and ensuring clear visibility from significant distances.
What type of battery does the Artemis use?
The Artemis features advanced LiFePO4 (Lithium Iron Phosphate) battery technology, which offers superior performance, longer lifespan, and more reliable operation compared to traditional battery types.
Can the Artemis operate in both maintained and non-maintained modes?
Yes, the Artemis is designed to operate in both maintained (continuously lit) and non-maintained (emergency only) modes, providing flexibility for different installation requirements.
What testing options are available?
The Artemis offers selectable self-test or manual test functionality, allowing you to choose the most convenient testing method for your maintenance schedule and compliance requirements.
How long does the emergency operation last?
The Artemis provides 3 hours of emergency operation, meeting standard emergency lighting duration requirements for safe evacuation.
What legends are available for the exit sign?
The Artemis comes standard with an up arrow legend. Additional legends are available separately to meet specific directional and application requirements.
Specifications
- Model Code: ART/30/ST/V2/B
- Viewing Distance: 30m
- Lumen Output: 96lm
- Emergency Lumen Output: 96lm
- Wattage: 3.5W
- Efficacy: 30 lm/W
- Voltage: 220-240V
- Frequency: 50/60Hz
- Battery Type: LiFePO4
- Emergency Duration: 3 hours
- Colour Temperature: 6500K
- Colour Rendition: Ra >80
- Power Factor: >0.3
- IP Rating: IP20
- Electrical Class: Class II
- Material Body Housing: Polycarbonate
- Material Diffuser Cover: Polycarbonate
- Colour Finish: Black RAL 9005
- Working Temperature: 0°C to 45°C
- Emergency Working Temperature: 0°C to 45°C
- LED Life Expectancy: L70B50 36,000 Hours
- Driver Type: Fixed Output
- Approval: UKCA CE
- Dimensions: L: 330 x W: 186 x D: 30 mm
- Net Weight: 0.64 kg
- Warranty: 5 years
