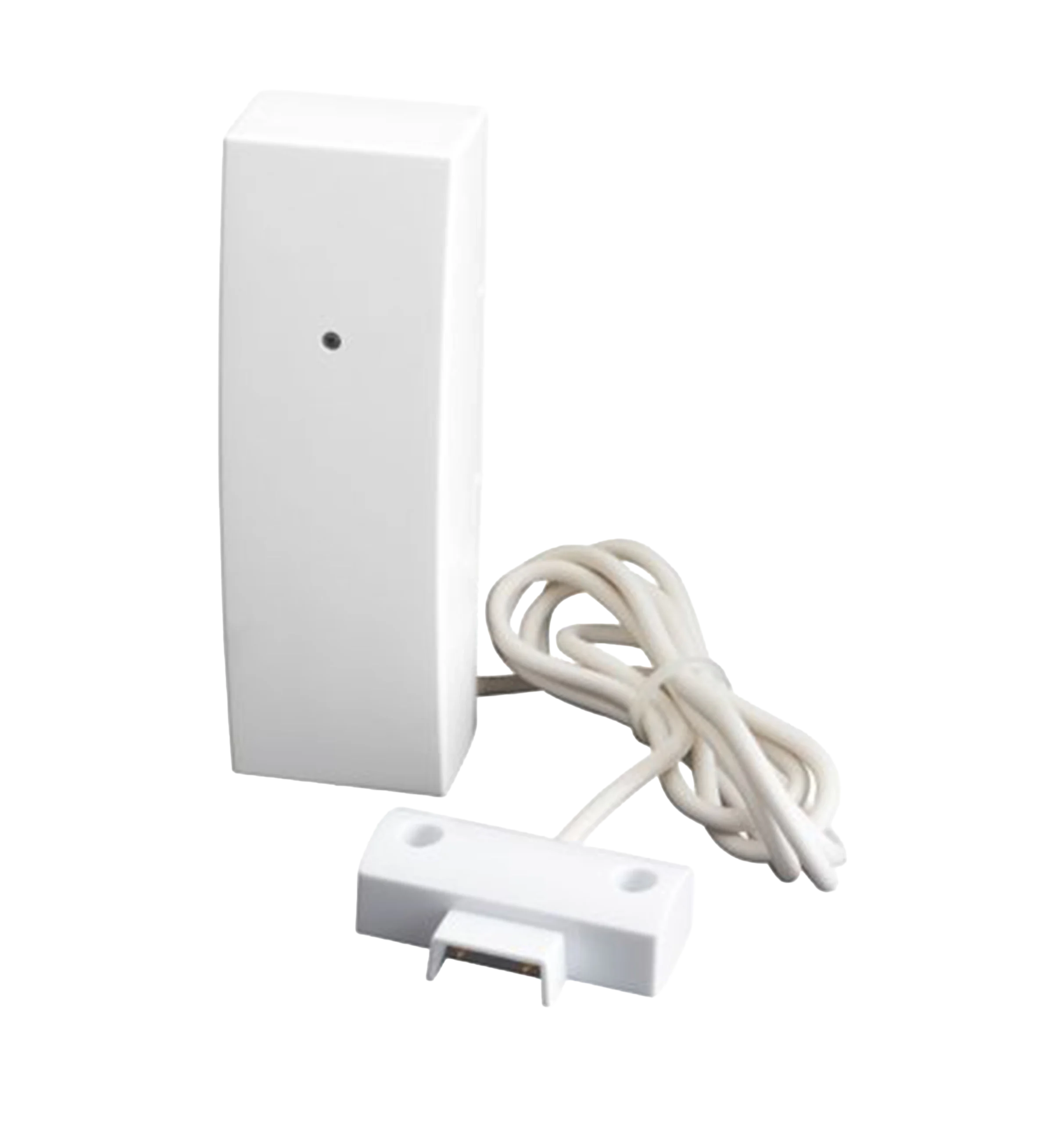

Scantronic DET-2R-IO | Wireless Water Detector & I/O Module | Grade 2, Universal Transmitter

FAQs

What are the three operating modes of the DET-2R-IO?

The DET-2R-IO operates in three distinct modes to provide flexible functionality. Universal Wired Input mode allows any wired device to be connected to the DET-2R-IO so it can communicate back to the control panel via radio, effectively converting wired sensors into wireless devices. Wired Output mode provides simple control of external wired systems, such as configuring a light to turn on or off whenever the alarm system is set or unset. Water Detector mode automatically notifies the control panel when moisture levels change, providing early flood detection capability. Users can select the appropriate mode during installation and configuration based on their specific monitoring or control requirements.

How does the water detection function work?

When configured in water detection mode, the DET-2R-IO uses its external moisture sensor (connected via the 1-meter cable) to monitor for the presence of liquid at the chosen location. When the sensor detects water, it immediately sends a wireless alert to the Scantronic control panel via encrypted Scantronic Secure Radio. The device can be programmed to trigger an alert either when water is detected or when conditions become dry, accommodating different monitoring scenarios. This flexibility allows the DET-2R-IO to monitor various situations including leak detection, sump pump operation verification, water tank levels, or detecting flooding in vulnerable areas like basements or utility rooms adjacent to washing machines and water heaters.

What is the wireless range and how reliable is the communication?

The DET-2R-IO communicates with Scantronic control panels using encrypted, bidirectional Scantronic Secure Radio (SSR) technology over distances up to 700 meters in free space. The bidirectional communication means the device both transmits to and receives confirmations from the control panel, ensuring reliable delivery of critical alerts. SSR technology accelerates response times compared to simplex wireless devices and includes encryption to prevent interception or spoofing. The device operates on 868-868.5MHz frequency in SSR mode or 868.6625MHz in Legacy mode for compatibility with older Scantronic systems. In real-world installations, actual range depends on building construction, wall materials, and sources of radio interference, but the bidirectional protocol ensures communication reliability is continuously verified.

How long does the battery last and what type is required?

The DET-2R-IO is powered by a single 3V CR2 lithium battery and typically operates for up to 2 years before battery replacement is required. The extended battery life is achieved through efficient Scantronic Secure Radio protocols and low quiescent current consumption of just 30μA. Actual battery life depends on several factors including frequency of zone activations (in input mode), output switching frequency (in output mode), frequency of water detection alerts (in detector mode), wireless signal strength, and ambient temperature. The control panel should provide low battery warnings when replacement is needed, giving advance notice before battery depletion.

Can the DET-2R-IO be used in damp environments like basements?

Yes, the DET-2R-IO is specifically designed for use in environments where water detection is needed, including damp locations such as basements, utility rooms, and areas adjacent to washing machines or water heaters. The device is rated for Environmental Class 2 and can operate in humidity levels up to 95% non-condensing. The operating temperature range of -10°C to 55°C accommodates most indoor environments including unheated basements. However, while the device tolerates high humidity, the transmitter unit itself should not be submerged in water or exposed to direct water spray. Only the external moisture sensor (connected via cable) should be positioned where water contact is expected, while the main transmitter unit should be mounted in a protected location nearby.

Is the DET-2R-IO suitable for professional security installations?

Yes, the DET-2R-IO is certified to Grade 2 security standards, making it suitable for professional security installations in residential and commercial properties. Grade 2 certification indicates the device meets requirements for low to medium risk applications according to European security standards. The device features encrypted communication to prevent interception and includes tamper protection to detect unauthorized removal or interference. The DET-2R-IO is compliant with the EU Radio Equipment Directive (RED) and operates on licensed frequency bands. Its multi-functional capability allows security professionals to efficiently expand system capabilities with a single device rather than multiple specialized units, reducing equipment costs and simplifying installation while maintaining professional-grade performance and reliability.

Can the wired output control other devices besides lights?

Yes, the DET-2R-IO’s wired output can control various external devices beyond lighting applications. The output is an open collector transistor rated for 15Vdc and 50mA maximum current, which can be used to trigger relays, interface with building automation systems, control low-voltage indicators, or activate other compatible electrical devices. Common applications include activating external notification devices when the system is armed, controlling door locks, triggering camera recording, or interfacing with third-party automation equipment. The output can be programmed to activate based on system arming status, zone status, or other control panel events, providing flexible integration possibilities. However, the 50mA current limitation means high-power devices require an intermediate relay or control module to avoid damaging the DET-2R-IO’s output circuitry.
