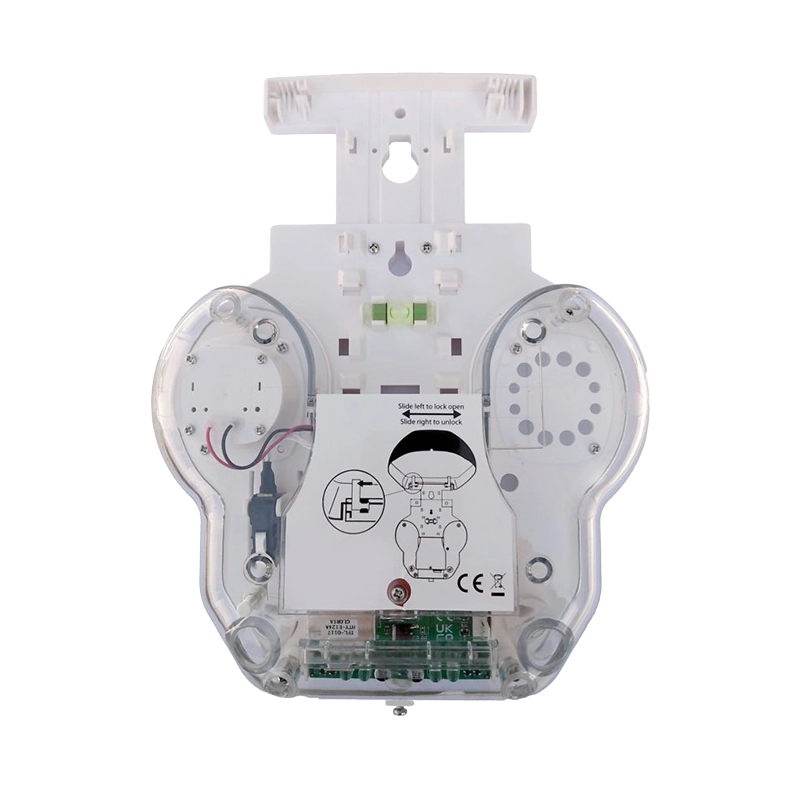

Scantronic SDR-W-EXT-NC-PLUS | Wired External Sounder with Backlight Backplate | Grade 3, No Cover

FAQs

What does EN50131 Grade 3 compliance mean for this siren?

EN50131 Grade 3 compliance indicates the SDR-W-EXT-NC-PLUS meets European standards for security systems protecting against attackers with knowledge of alarm systems and access to specialist tools and equipment. Grade 3 is appropriate for medium to high-risk commercial properties, valuable residential installations, and premises requiring insurance-approved security systems. The self-certification ensures the siren’s construction, tamper protection, and operational characteristics meet professional security standards required by insurers and regulatory bodies.

What is Environmental Class IV and why is it important?

Environmental Class IV represents the highest environmental rating under EN50131, indicating the device can operate reliably in harsh outdoor conditions including extreme temperatures, high humidity, exposure to environmental contaminants, and challenging weather. This rating is essential for external sirens exposed to UK climate conditions including rain, frost, direct sunlight, and temperature fluctuations. Class IV ensures the siren maintains performance integrity throughout its operational life without degradation from environmental exposure, critical for installations where failure could compromise security.

How do I configure the cut-off period?

The SDR-W-EXT-NC-PLUS offers three configurable cut-off periods: 5 seconds for brief alert signals, 3 minutes for moderate duration alarms, or 15 minutes (default setting) for maximum deterrent effect. Configuration is typically performed during installation through internal settings or control panel programming, depending on system integration requirements. The choice of cut-off period should balance effective alarm signaling against local noise regulations, site-specific requirements, and neighbor considerations. Many installers select 15-minute default for unoccupied properties but shorter durations for residential areas with noise restrictions.

What is the low-volume mode used for?

Low-volume mode reduces the siren output during testing, commissioning, and routine maintenance activities, enabling verification of functionality without generating full 105dB output that would alarm neighbors or violate noise regulations. This feature is invaluable during installation, system walk tests, and periodic maintenance checks where confirming siren operation is necessary but full-volume activation would be inappropriate. Engineers can test connections, timing, and operation whilst minimizing disruption to surrounding properties.

How long does the backup battery last?

The replaceable SDR-W-BAT2 backup battery provides typical 60-year life under normal operating conditions where the siren remains on standby with occasional test activations. This exceptional lifespan assumes the device receives continuous 12VDC supply and the battery is only used during mains power failures or alarm activations. Actual battery life varies based on activation frequency, duration of mains failures, and environmental conditions. The long battery life reduces maintenance requirements and ensures reliable backup capability throughout the siren’s operational lifespan.

Can the siren produce different tones?

Yes, the multi-tone capability enables different audio signatures for various alarm conditions. Many control panels can configure external sirens to produce distinct tones for different event types such as intruder alarm, fire alarm, panic alarm, or technical faults. This differentiation helps occupants, security personnel, or emergency responders identify the nature of the alarm from the audible signal, enabling appropriate response. The specific tones and their assignment depend on control panel capabilities and programming during installation.

What maintenance does the SDR-W-EXT-NC-PLUS require?

Regular maintenance includes periodic visual inspection for physical damage, water ingress, or tampering, testing activation through low-volume mode during routine service visits, verifying battery voltage and condition, and cleaning the lens and housing to maintain appearance and weather resistance. Most professional installations schedule annual maintenance visits where engineers test all system components including external sounders. The robust Environmental Class IV construction and long battery life minimize maintenance requirements compared to lower-grade devices.

Is this siren suitable for coastal or industrial environments?

The Environmental Class IV rating makes the SDR-W-EXT-NC-PLUS suitable for challenging environments including coastal locations with salt spray exposure and industrial areas with atmospheric contaminants. The ABS and polycarbonate construction provides chemical resistance and impact strength, whilst the sealed design prevents moisture ingress that could cause corrosion or electrical failure. However, in extreme marine or industrial environments, additional protection such as conformal coating or sheltered mounting may extend operational life. Regular inspection ensures environmental exposure hasn’t compromised housing integrity or weathersealing.
