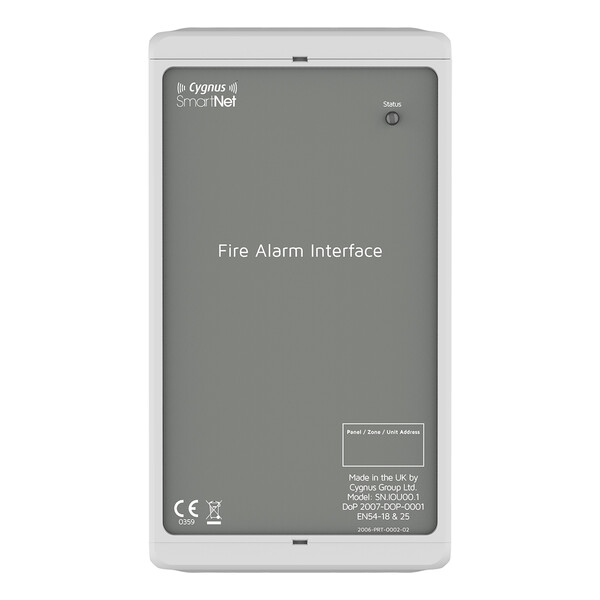

SmartNet-100 Dual Input Output Unit
Summary
The Cygnus SmartNet-100 S1.IOU00.1 is a wireless fire alarm interface unit designed to integrate with Cygnus devices and other fire systems, sensors, and detectors. This unit is part of the Cygnus SmartNet wireless fire detection and alarm system, which includes a range of battery-powered, wireless fire detection and alarm products suitable for permanent installations, commercial premises, and HMOs. The interface unit features two configurable inputs and two outputs, providing flexible connectivity options for various fire safety applications. It is designed to be EN 54 compliant and offers easy configuration via the CygnusConfig application.
Features
- Two digital inputs
- Two digital outputs
- Tamper switch on lid
- Cable glands with IP65 or IP33C minimum rating
- Four 20mm or 16mm compression cable glands
- Easy configuration via CygnusConfig application
- Compatible with other Cygnus SmartNet devices
- Sensitive radio with up to 750m range
- 868MHz radio (915MHz also available)
- 3+ year battery life
- Certified by Intertek
Specifications
- Dimensions (Mm) : 230h x 125w x 61d
- Weight : 780g
- Operating Temperature : -25°C to +70°C
- Storage Temperature : -25°C to +70°C
- IP Rating : IP65 and IP33C, Type B (Outdoor)
- Relative Humidity : >95% @ 25°C to 55°C
- Operating Voltage Range : 2.5 to 3.8V (from lithium batteries)
- Main Battery : 3x ER26500 Li-SOCl₂ (lithium thionyl chloride)
- Backup Battery : 1x CR123 (must be fitted)
- Battery Voltages : ER26500 = 3.6V nom. CR123 = 3.0V nom.
- Power Consumption : 3mW
- Battery Life : Min 3 years (normal operation)
- Radio Operating Frequency : 865 to 868 MHz
- Radio Category : Category 1
- Channels : 10 (with channel hopping algorithm)
- Bandwidth : 250kHz
- Channel Spacing : 300kHz
- Transmit Power : 10mW (maximum)
- Duty Cycle : <0.1%
- Protocol : Cygnus mesh protocol
- Encryption : TDES (64-bit payload, 192-bit encryption key)
- Self-forming : Cygnus self-forming algorithm
- Self-healing : Cygnus self-healing algorithm
- Compliance : ETSI EN 300 220-1 V3.1.1 (2017-02), ETSI EN 301 489-1 V2.2.2 (2019-09), ETSI EN 301 489-3 V2.1.1 (2019-03), EN61000-6-3:2007 +A1:2011, EN50130-4:2011 +A1:2014, EN61000-3-2:2014, EN61000-3-3:2013, EN 54-18:2005, EN 54-25:2008
