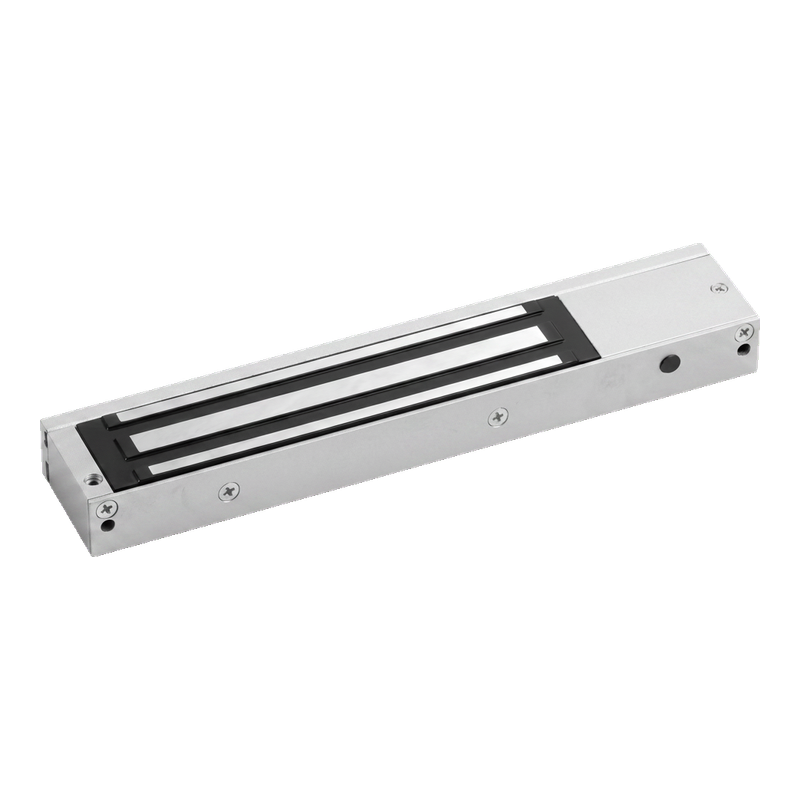

STP STP-EM02 | Slim Monitored Magnetic Lock | 300kg Holding Force, 12/24VDC Selectable
£24.91 (inc VAT: £29.89)
Summary
The STP-EM02 Slim Monitored Magnetic Lock delivers reliable access control with a 300kg holding force, making it ideal for indoor applications where security is paramount. This compact electromagnetic lock features dual voltage operation (12V/24VDC selectable) and comprehensive monitoring capabilities with LED status indicators and relay contacts for integration with access control systems.
Built with a slim profile design, this surface-mounted maglock includes all necessary components including top-plate, armature-plate and fixings. The silver anodised aluminium finish provides durability while the fail-safe operation ensures security is maintained during power outages. Advanced protection features including MOV spike protection and anti-residual magnetism make this an ideal choice for professional access control installations.
Features
- MOV provides spike and surge protection
- Fail-safe operation (power to lock)
- Anti-residual magnetism protection
- Top-plate, armature-plate and fixings included
- Slim design for compact installations
- Dual voltage 12Vdc or 24Vdc (selectable)
- Surface mount installation
- Silver anodised aluminium finish
- Lock monitoring with LED indicators
- Red/Green LED status indicator
- Relay contacts COM/NO/NC for signalling
FAQ
What is the holding force of this magnetic lock?
The STP-EM02 provides up to 300kg (661lb) of holding force, making it suitable for most standard door applications where high security is required.
Can I use this lock with both 12V and 24V power supplies?
Yes, this magnetic lock features selectable dual voltage operation. It can operate on either 12VDC (500mA current draw) or 24VDC (250mA current draw) depending on your system requirements.
What does the lock monitoring feature provide?
The monitoring system includes Red/Green LED indicators showing lock status and relay contacts (COM/NO/NC rated at 1A@24VDC) for integration with access control panels and alarm systems.
Is this lock suitable for outdoor use?
This magnetic lock is designed for indoor applications with an operating temperature range of -10°C to +55°C and humidity tolerance of 0-95% non-condensating.
What is fail-safe operation?
Fail-safe operation means the lock requires power to remain locked. In the event of power failure, the lock will automatically unlock, allowing safe egress – this is essential for fire safety compliance.
What protection features are included?
The lock includes MOV (Metal Oxide Varistor) for spike and surge protection, plus anti-residual magnetism protection to ensure clean lock/unlock operation without magnetic remnants.
Specifications
- Holding Force: up to 300kg (661lb)
- Voltage: 12/24VDC (selectable)
- Current Draw: 500mA @ 12VDC / 250mA @ 24VDC
- Voltage Tolerance: +/- 15%
- Operating Temperature: -10°C to +55°C
- Humidity: 0-95% non-condensating
- Weight: 2kg approx.
- LED Indicator: Red/Green
- Relay Contacts: COM/NO/NC (1A@24VDC)
- Finish: Silver anodised aluminium
- Mounting: Surface mount
- Dimensions: 250mm x 48mm x 26mm
- Armature Plate Size: 185mm x 38mm x 12mm
Downloads
- Datasheet (Adobe PDF)
