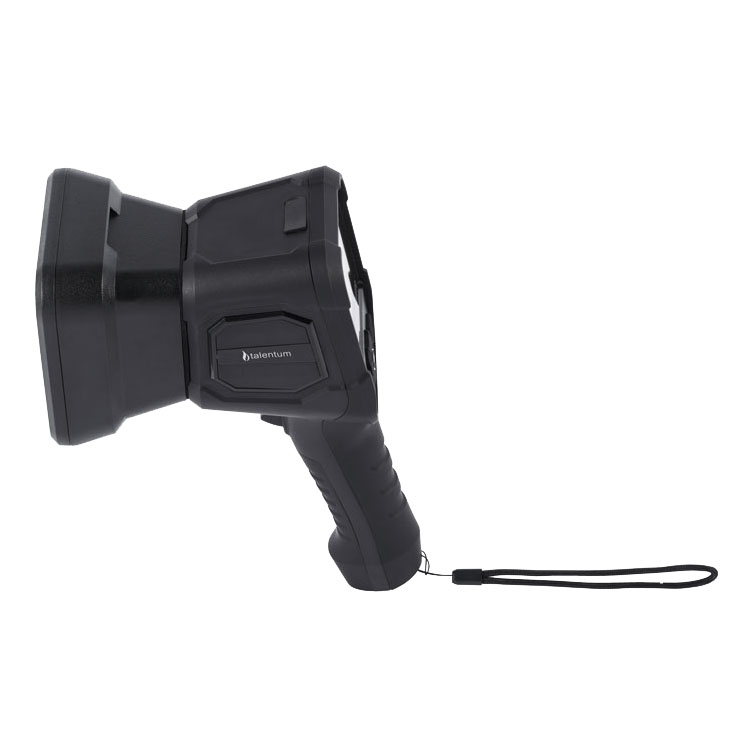

Talentum Flame Detector Test Torch
Summary
The Talentum Test Torch 1800-101, complete with the optional Calibration Kit 1800-106, is a sophisticated test and calibration unit designed for use with the entire range of Talentum Flame Detectors. This device allows users to select the type of Flame Detector to be tested through an intuitive menu, and then perform the test from a distance of up to 6 metres, often enabling ground-level testing. The Test Torch simulates the flame’s characteristic spectrum using a combination of UV and IR bulbs. Additionally, it offers recalibration capabilities for Talentum Flame Detectors when used with the Calibration Kit. The integral battery of the Test Torch is rechargeable via USB, making it convenient for field use.
Features
- Compatible with Talentum UV, UV/IR, UV/IR2, IR3 detectors
- Recalibration capability with optional kit
- Integral lithium-ion rechargeable battery
- USB type C charging and data port
- IP54 ingress protection rating
- Operates in temperatures from -10°C to +55°C
Specifications
- Suitability : Talentum UV, UV/IR, UV/IR2, IR3
- Range : 1-6 m (max)
- Test Time : Up to 40 tests each of 30 seconds
- Service Interval : 2000 tests, or 2 years
- Batteries : Lithium Ion rechargeable
- Battery Charging Time : 3 hours (fast), 8 hours (norm)
- Charging And Data Port : USB type C
- Weight : 0.85 kg (1¾ lb); 1.28 kg (2¾ lb) with calibration kit
- Dimensions : 112(w) x 245(h) x 197(d) mm (4½”(w) x 9¾”(h) x 7¾”(d))
- Ingress Protection Rating : IP54
- Operating Temperature : -10°C to +55°C (+14°F to +131°F)
- Storage Temperature : -20°C to +65°C (-4°F to +145°F)
- Field Calibration Record Capacity : 1024 calibrations
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| Device Type | |
| Calibration Kit | No, Yes |
