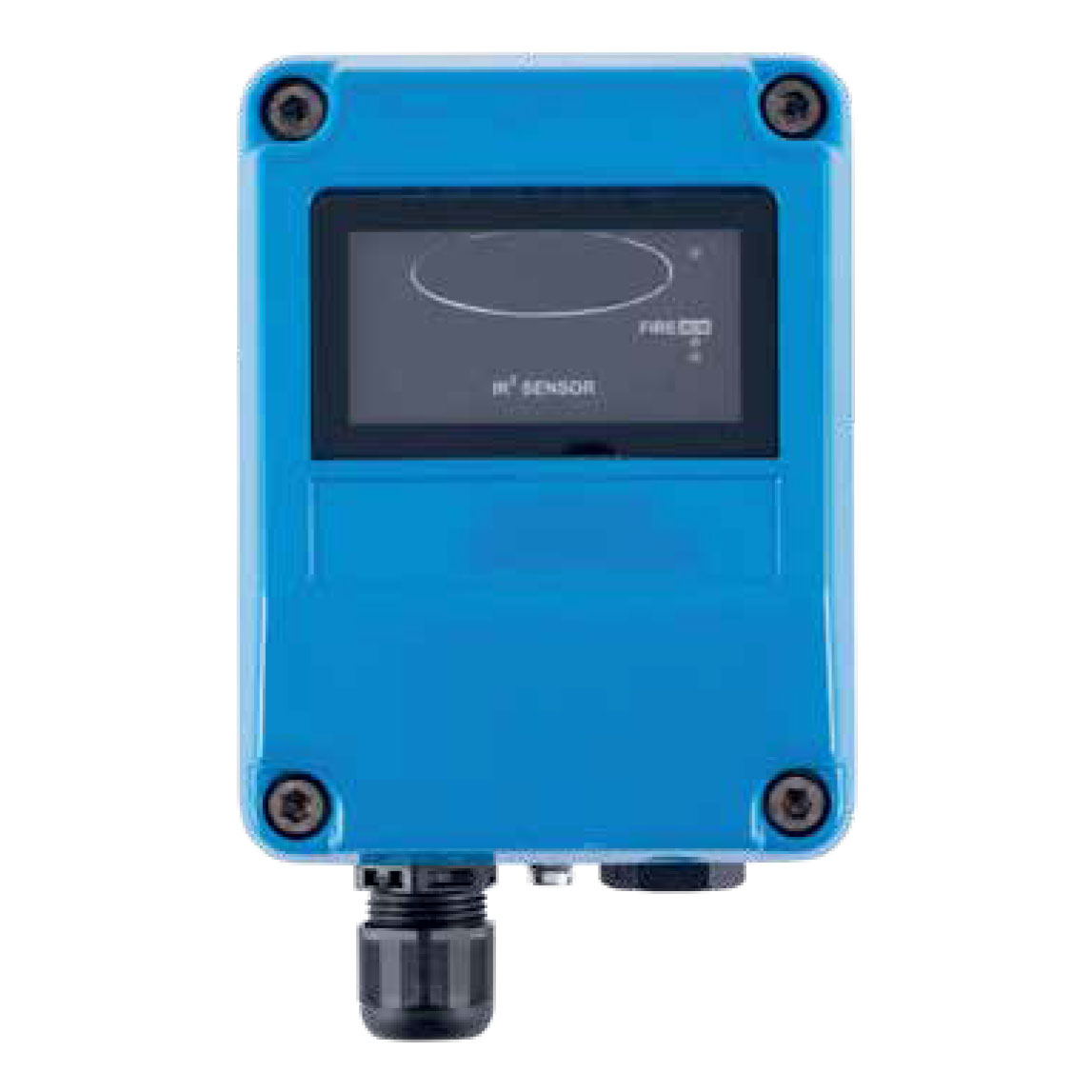

Talentum Intrinsically Safe (IS) IR2 Flame Detector
£1,525.00 (inc VAT: £1,830.00)
Summary
The Talentum Intrinsically Safe (IS) IR² Flame Detector is engineered to protect areas where open fires may be expected, detecting almost all flames, including hydrocarbon fires with 4.3 μm emissions and invisible fires such as hydrogen. This detector is sensitive to flickering, low-frequency infra-red radiation emitted by flames during combustion, even if the lens is contaminated by oil, dust, water, vapour, or ice.
Featuring two IR sensors, the IR² Flame Detector responds to different IR wavelengths to distinguish between actual flames and spurious sources of radiation. It uses a combination of filters and signal processing techniques to prevent false alarms from flickering sunlight. The detector offers selectable output options of relay contacts, ensuring adaptability and reliability in various hazardous environments.
Features
- High immunity to false sources
- Tolerant of fumes, vapours, dust, and mist
- Suitable for use in Zone 0, 1, or 2
- Suitable for indoor areas
- Unaffected by convection currents, draughts, or wind
- Proven response to multiple fuel types
- Multi-spectrum detection
- Selectable output options
- Selectable response speed
- Selectable sensitivity levels
- Built-in auto and manual test
- Low current consumption
- Fast response to fire
Specifications
- Housing Material : Die Cast Zinc Alloy (ZA12)
- Housing Colour : Blue
- Dimensions : 142(H) x 108(W) x 82(D) mm
- Weight : 2 kg
- Cable Gland Entries : 2 x 20 mm
- Wiring : 1.0 to 4.0 mm²
- Supply Voltage : 14 to 30 Vdc
- Quiescent Current : 8 mA, RL2 energised; 4 mA, current loop, RL2 off; 3 mA, RL2 off
- Alarm Current : 28 mA, RL1 & RL2 energised; 20 mA, current loop, RL1 & 2 off; 9 mA, RL1 energised
- Power Up Time : 2 seconds max.
- Test Signal Voltage : 14 to 30 Vdc
- Relay Outputs : Programmable – Ratings: Current 1.0 A Max., Voltage 50 Vdc Max., Power 30 W Max. (Resistive Loads Only)
- Operating Temperature : -10°C to +55°C
- Storage Temperature : -20°C to +65°C
- Relative Humidity : 95% Non-condensing
- IP Rating : IP65
- Range : Class 1 – 0.1 m² n-heptane at 25 m; Class 3 – 0.1 m² n-heptane at 12 m
- Field of View : 90° min. Cone
- Operating Wavelength Band : IR 0.75 to 2.7 µm
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| Wavelength | IR2 |
| System Type | |
| Hazardous Applications |
