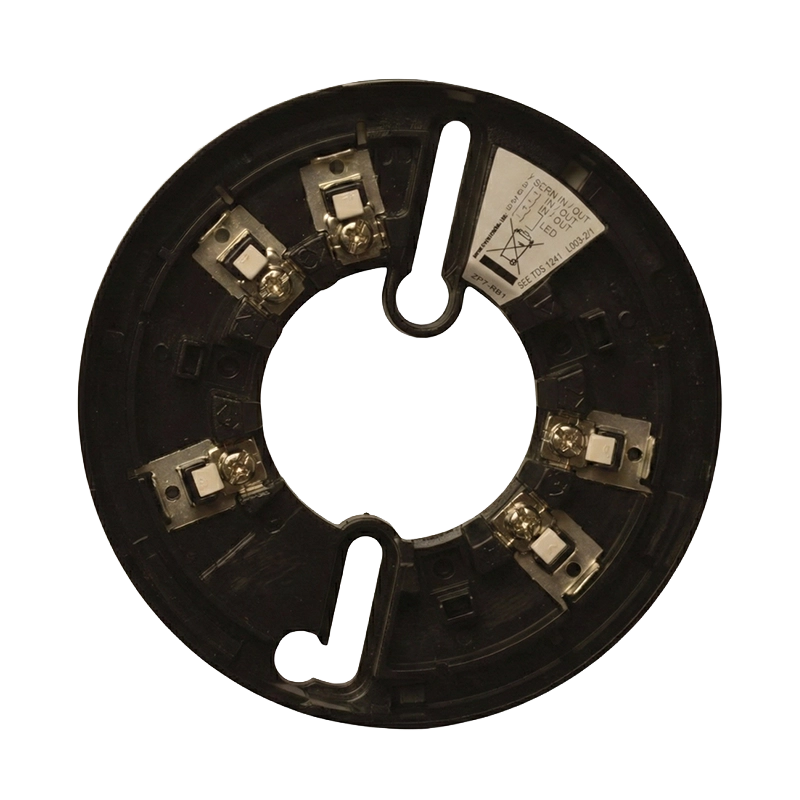

Ziton 84301/BLK | ZP7-SB1 Surface Detector Base | Black, Locking Option

FAQs

Which detectors are compatible with the 84301/BLK black base?

The 84301/BLK black surface mounting base is compatible with all Ziton ZP700 and ZX800 series addressable detectors. This includes optical smoke detectors, heat detectors, multi-sensor detectors, and other variants in the ZP7 and ZX8 ranges. The black finish of this base matches black detector heads, providing a cohesive aesthetic appearance. For polar white detectors, the equivalent ZP7-SB1-P polar white base is available. The twist-and-lock mechanism is standardized across the range, ensuring any compatible detector can be quickly installed or removed from the base without tools.

How does the twist-and-lock mechanism work?

The twist-and-lock mechanism provides quick and tool-free detector installation and removal. The detector head simply aligns with the base and is pushed up, then twisted clockwise to lock into place – this action engages internal locking tabs that secure the detector mechanically while making the electrical connections through spring contacts. To remove the detector for cleaning or servicing, simply twist counter-clockwise and pull down. The loop wiring remains connected to the base terminals throughout this process, eliminating the need to disconnect and reconnect cables. This significantly reduces maintenance time and ensures proper electrical connections are maintained.

What is the automatic locking feature and how does it work?

The automatic locking feature prevents unauthorized removal of detectors from their bases, useful in public areas or locations where tampering is a concern. All Ziton detector mouldings include a small breakout tab – when this tab is left intact, the detector can be removed using the normal twist-and-unlock action. However, once the breakout tab is removed (typically during system commissioning), the detector can only be released using a special removal tool supplied by Ziton. This simple security measure is easily implemented on-site and provides a deterrent against unauthorized detector removal or theft without affecting normal maintenance by trained personnel with the proper tool.

What are the fixing centre options for mounting the base?

The ZP7-SB1 black base is designed with versatile mounting slots that accommodate screw fixing centres between 50mm and 90mm. This range allows the base to be mounted directly to ceiling structures using appropriate fixings for the substrate (plasterboard, concrete, wood), to standard electrical auxiliary wiring plates, or to conduit boxes with various knockout configurations. The adjustable fixing centres provide flexibility for different installation scenarios and ensure the base can be securely mounted to existing infrastructure. Always ensure fixings are appropriate for the ceiling construction and load-bearing capacity.

Can I connect a remote LED indicator to this base?

Yes, the 84301/BLK base includes dedicated terminals for connecting a remote LED indicator. Two terminals are provided specifically for this purpose: Remote LED +ve and Remote LED -ve. A remote LED allows the detector’s alarm status to be visible from locations where the detector itself may not be easily visible, such as in corridors outside rooms, at security desks, or in maintenance areas. The remote LED typically mirrors the detector’s status indication, illuminating when the detector enters alarm condition. Consult the Ziton wiring diagrams for proper remote LED connection details and compatible indicator specifications.

What is the purpose of the cable screen terminal?

The cable screen continuity terminal enables proper termination of the cable shield (screening) in screened twisted pair loop wiring. In addressable fire alarm systems, screened cable is often used to provide electromagnetic compatibility (EMC) and reduce susceptibility to electrical interference. The screen should be terminated at regular intervals throughout the loop to maintain its effectiveness – the dedicated screen terminal on the base provides a convenient connection point for this purpose. Proper screen termination helps ensure reliable communication on the addressable loop and compliance with EMC requirements, particularly important in electrically noisy environments.

How do the address label spaces work?

Both the detector and the base feature matching spaces for address labels, typically small adhesive labels showing the device’s loop address number. This dual-labeling system serves multiple purposes: it enables detectors to be easily identified when viewed from floor level (important for maintenance and fault-finding), ensures detectors are replaced in their correct locations after removal for cleaning, and provides a quick visual reference during commissioning and system testing. The labels are particularly valuable in large installations where dozens or hundreds of detectors are installed – without proper labeling, identifying and locating specific devices would be time-consuming and error-prone.

What is the difference between the black 84301/BLK and polar white ZP7-SB1-P bases?

The primary difference between the black 84301/BLK and polar white ZP7-SB1-P bases is the finish color – they are functionally identical in terms of electrical connections, mounting options, and detector compatibility. The black base (RAL 9005) is designed to match black detector heads for aesthetic coordination, while the polar white base matches white detector heads. The choice between black and white is typically driven by ceiling color and desired visual impact – black detectors tend to be less visually prominent on dark ceilings or in modern industrial aesthetics, while white detectors blend better with standard white suspended ceilings common in offices and commercial buildings.
