Ziton ZP3 8 Way Relay Card
£267.24 (inc VAT: £320.69)
Summary

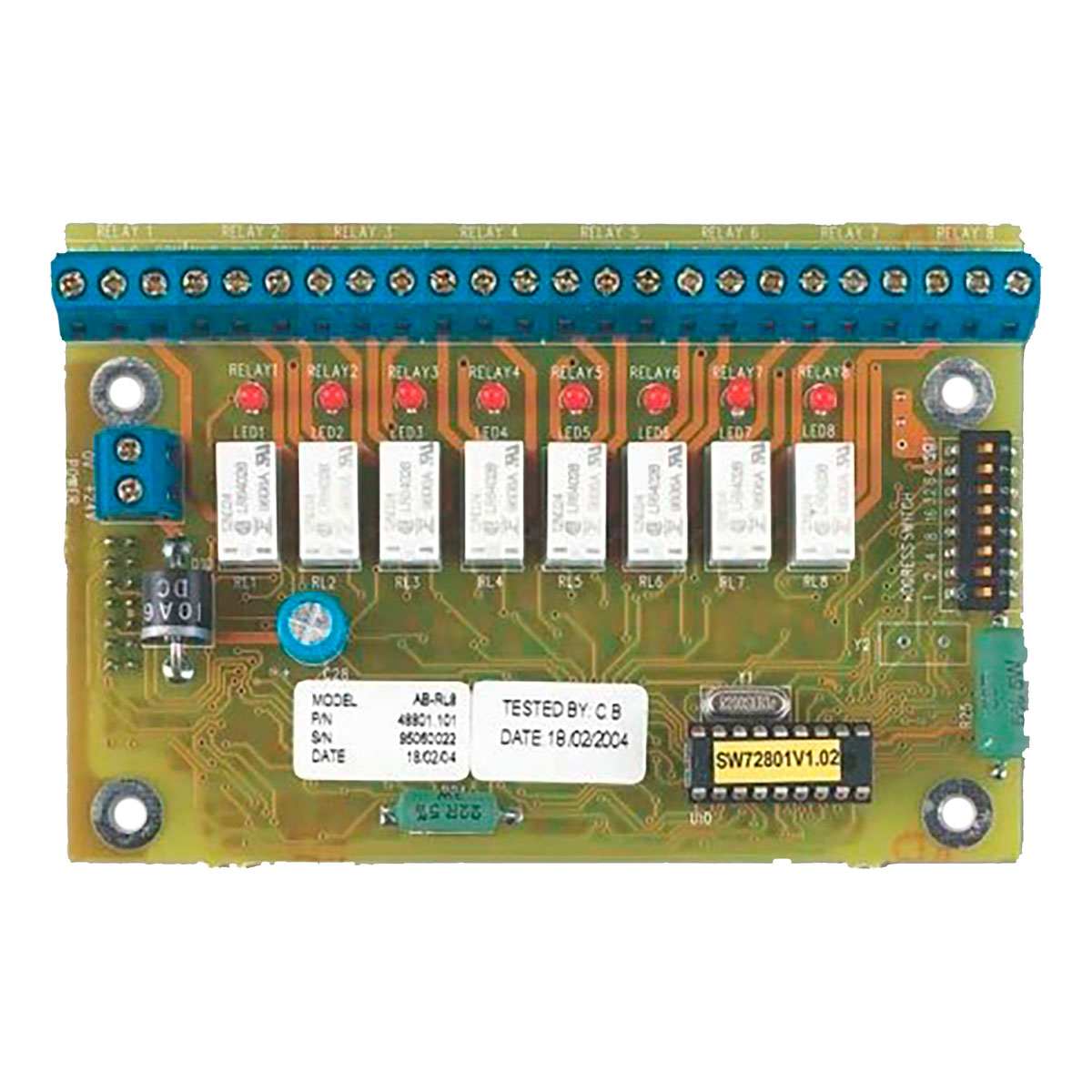

The ZP3AB-RL8 is a relay board designed to extend the ZP3 panel’s standard range of input/output facilities. It offers eight programmable relay outputs and is part of a series of auxiliary boards that can be mounted inside the ZP3 panel enclosure using a ZP3-AC1 auxiliary chassis. Up to three boards can be fitted into a ZP3 panel, allowing for a maximum of 72 outputs within the enclosure. Additional boards can be added in a remote control cabinet, enabling the operation of up to 896 outputs, with 768 being programmable.
Features
- Individual LED indication for each relay output
- Cost-effective addition to any ZP3 control panel
- Easy installation within the panel or in a remote cabinet
- Relay contacts are volt free, single pole, change over
Specifications
General
- Status Indication : Relay contacts operated 1 LED red, per contact indication (on PCB)
- Compatibility : ZP3 control panels
Electrical
- Power Supply Type : 24 VDC
- Operating Voltage : 24 VDC +/-10%
- Current Consumption : Standby 31 mA, all relays latched 130 mA
Output
- Output Type and Rating : 2 A at 30 VDC or 30 VAC, 1 volt free change over
- Programmable : 8 Relay circuits (per board)
Physical
- Physical Dimensions : 120 x 80 mm (W x H)
- Net Weight : 97 g
- Mounting Type : PCB mount
Environmental
- Operating Temperature : -10 to +60°C
- Relative Humidity : 10 to 90% noncondensing
Regulatory
- Compliancy : CE, EEC89/336
Accessories
- ZP3AB-AC1 : Auxiliary chassis – accommodates up to 3 auxiliary boards. 1 chassis per ZP3 panel enclosure
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| Protocol | |
| System Type | |
| Device Type |
