Ziton ZP3 Network Card
£213.79 (inc VAT: £256.55)
Summary

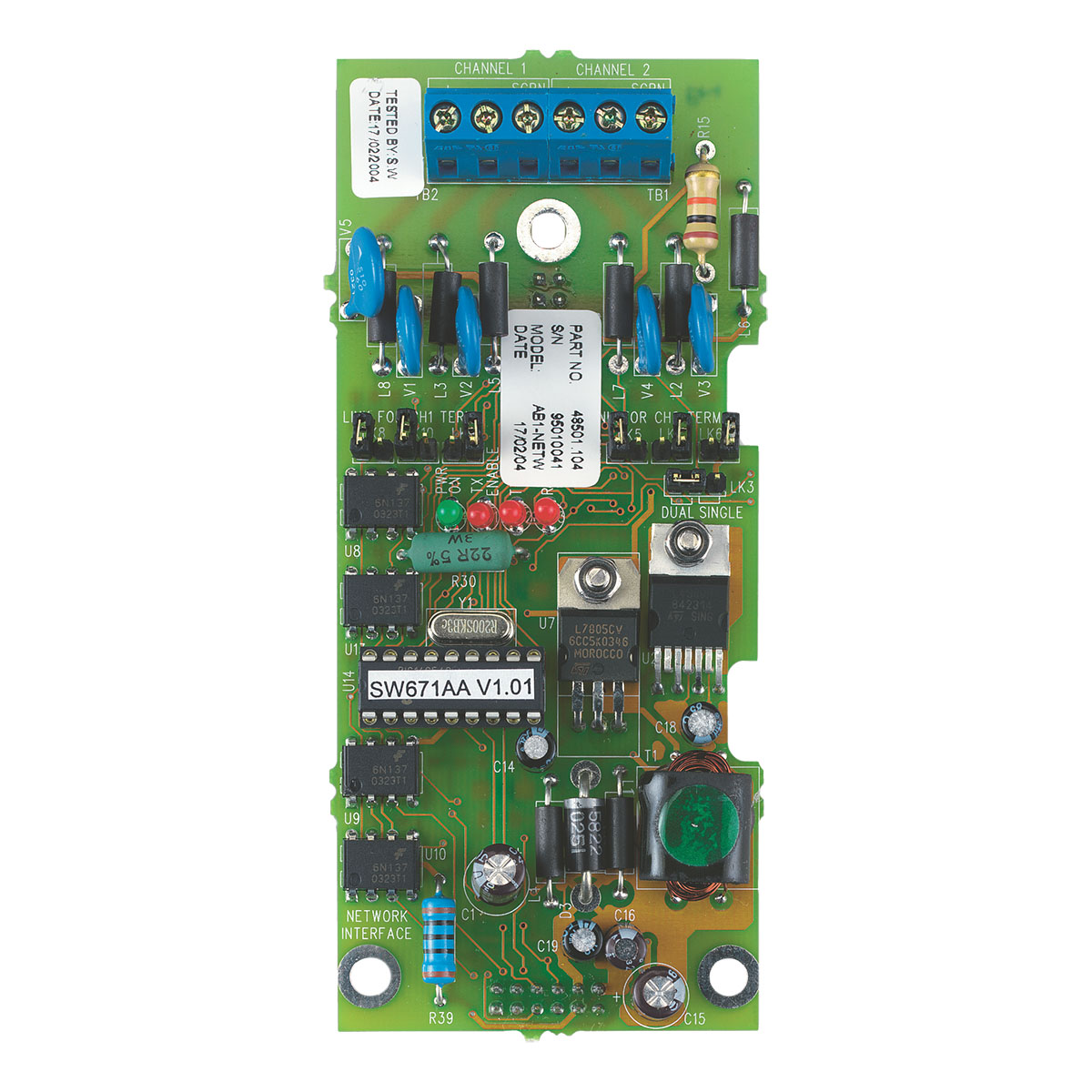

The ZP3AB-NET1 is a network interface designed to enable ZP3 control panels to connect and form networks. This interface card attaches directly to the ZP3 main control board within the panel enclosure, allowing up to 64 standalone control panels to link and integrate over 32,000 system devices. Networks can be configured as peer-to-peer systems, where each panel controls its own devices and displays its own system information, or as hierarchical networks with master panels displaying complete system status.
Features
- Simple connection for ZP3 networks
- Housed inside the main panel enclosure
- Supports flexible system configuration with daisy-chained or spurred wiring
- Cost-effective addition to any ZP3 control panel
Specifications
General
- Status Indication : Green LED – power on, Red LED (x3) – transmission
- Compatibility : ZP3 control panels
- Communication Ports : RS485
Electrical
- Current Consumption : 70 mA (total effective load from 24 V supply)
Physical
- Physical Dimensions : 120 x 55 mm (H x W)
- Net Weight : 62 g
- Mounting Type : PCB mount
Environmental
- Operating Temperature : -10 to +60ºC
- Relative Humidity : 10 to 90% noncondensing
Regulatory
- Compliancy : CE, EEC89/336
Mounting
- Mounting : Plug and socket-fixes to allotted space on panel main control board
Baud Rates
- Baud Rates : 57600, 38000, 33600, 28800, 19200, 14400, 9600, 4800, 2400, 1200, 600, 300
Wiring
- Wiring : Two cores twisted screened pair – 0.5mm² minimum
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| Protocol | |
| System Type | |
| Device Type |
