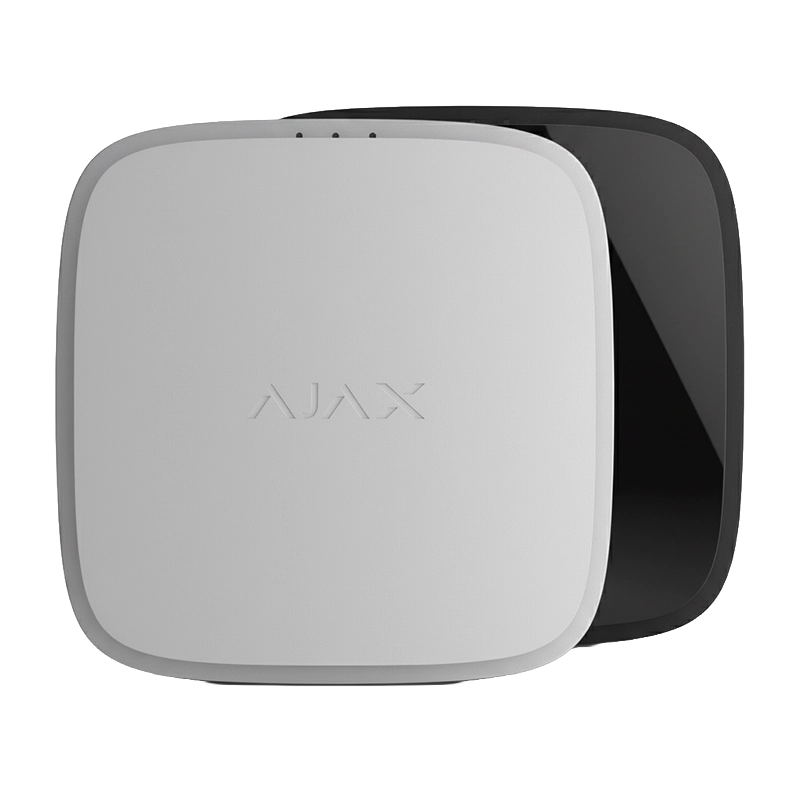

Ajax EN54 FireProtect (Heat) Jeweller
Summary
The Ajax EN54 FireProtect Heat Jeweller detector delivers professional wireless heat detection technology designed for environments where smoke detectors may not be suitable. This wireless addressable point heat detector combines certified reliability with advanced thermistor technology to provide accurate detection of flaming fires and rapid temperature rise conditions.
Featuring dual thermistor sensors and multiple detection modes including A1, A1R, A1S, B, BR, BS, C, CR, CS, and fixed temperature options, the detector can be precisely configured through the Ajax app to match specific environmental requirements. The sophisticated heat detection system responds rapidly to dangerous temperature conditions whilst minimising false alarms in challenging environments such as kitchens, garages, or dusty industrial areas.
With up to 5 years of battery life, wireless communication range up to 1,700m, and seamless integration with Ajax PRO Desktop, the EN54 FireProtect Heat Jeweller detector ensures long-term reliability and simplified maintenance for professional fire safety installations requiring heat-based detection.
Features
- Dual thermistor heat sensing technology
- Multiple heat detection modes (A1, A1R, A1S, B, BR, BS, C, CR, CS, Fixed temperature)
- App-selectable detection modes for precise configuration
- Accurate detection of flaming fires and rapid temperature rise
- Suitable for challenging environments where smoke detection is unsuitable
- Wireless communication range up to 1,700m in open space
- Up to 5 years operation on pre-installed batteries
- Tool-free battery replacement without enclosure disassembly
- SmartBracket mounting panel for easy installation
- 90-degree device rotation for optimal placement
- QR code configuration – no tools or programming required
- Ajax app configuration and testing
- Low battery notifications in Ajax apps
- Alarm transmission within 3 seconds
- Smart radio technology with automatic power adjustment
- Optional device locking on SmartBracket
- IP21C protection class
- Operating temperature range -10°C to +50°C
- Operating humidity up to 80%
FAQs
What types of fires does the heat detector respond to?
The EN54 FireProtect Heat Jeweller detector is specifically designed for detecting flaming fires and rapid temperature rise conditions using dual thermistor technology, making it ideal for environments where smoke detectors may cause false alarms.
What heat detection modes are available?
The detector offers multiple configurable heat detection modes including A1, A1R, A1S, B, BR, BS, C, CR, CS, and fixed temperature modes. These can be selected and configured through the Ajax app to match specific environmental and safety requirements.
Where should heat detectors be installed instead of smoke detectors?
Heat detectors are ideal for kitchens, garages, boiler rooms, dusty industrial environments, or any location where smoke, steam, or airborne particles might cause false alarms with traditional smoke detection systems.
How quickly does the detector respond to temperature changes?
The detector responds rapidly to dangerous temperature conditions and transmits alarms to the CIE within 3 seconds of detection, ensuring quick fire safety response.
What certifications does the heat detector have?
The detector is certified to EN54-5 and EN54-25 standards and complies with Directive 2014/53/EU (RED), ensuring it meets European fire safety regulations for commercial heat detection installations.
Can the detection sensitivity be adjusted?
Yes, the various heat detection modes (A1, A1R, A1S, B, BR, BS, C, CR, CS, and fixed temperature) allow for different sensitivity levels and response characteristics to be selected based on the specific application requirements.
Specifications
- Detection Type: Heat detection
- Sensor Technology: 2 × thermistor
- Heat Detection Modes: A1, A1R, A1S, B, BR, BS, C, CR, CS, Fixed temperature
- Detection Capability: Flaming fires and rapid temperature rise
- Mode Selection: Configurable via Ajax app
- Communication Technology: Jeweller wireless protocol
- Communication Range: Up to 1,700m (open space)
- Frequency Bands: 866.0-866.5 MHz, 868.7-869.2 MHz, 905.0-926.5 MHz, 915.85-926.5 MHz, 921.0-922.0 MHz
- Maximum Radiated Power: Up to 20 mW
- Power Supply: 2 × CR123A batteries (pre-installed)
- Battery Life: Up to 5 years
- Weight: 294.5g
- Dimensions: 124 × 124 × 54.2 mm
- Operating Temperature: -10°C to +50°C
- Operating Humidity: Up to 80%
- Protection Class: IP21C
- Flammability Rating: UL 94 V-0
- Alarm Transmission: Within 3 seconds
- Compliance Standards: EN54-5, EN54-25, Directive 2014/53/EU (RED)
- Mounting: SmartBracket mounting panel
- Device Rotation: Up to 90 degrees
- Colour: Black, White
