Ajax EN54 FireProtect (Sounder) Jeweller
Summary
The Ajax EN54 FireProtect (Sounder) Jeweller is a wireless addressable fire alarm sounder designed to deliver powerful audible fire alarm alerts in full compliance with EN54 standards. This dedicated audio notification device provides instant audible alerts with 100dB sound output, ensuring effective occupant notification during fire emergencies across commercial and municipal installations.
Engineered for installation efficiency, the fire alarm sounder features built-in wireless communicators and can be mounted in minutes without enclosure disassembly using the SmartBracket mounting system. The device supports both wall and ceiling mounting options, providing flexibility for various building layouts and acoustic requirements.
With 32 selectable tones available, the sounder offers versatility to suit different building requirements and compliance needs. Setup, configuration, and testing are handled through intuitive Ajax apps, with real-time device monitoring and early low-battery notifications. The device offers exceptional autonomy with up to 5 years of battery life on pre-installed batteries, combined with tool-free battery replacement capabilities that maintain system integrity during maintenance procedures.
Features
- Wireless addressable fire alarm sounder with powerful audio notification
- EN54-3, EN54-23, and EN54-25 standards compliance
- 100dB sound output with audible indication at 1m distance
- 32 selectable sound tones for diverse application requirements

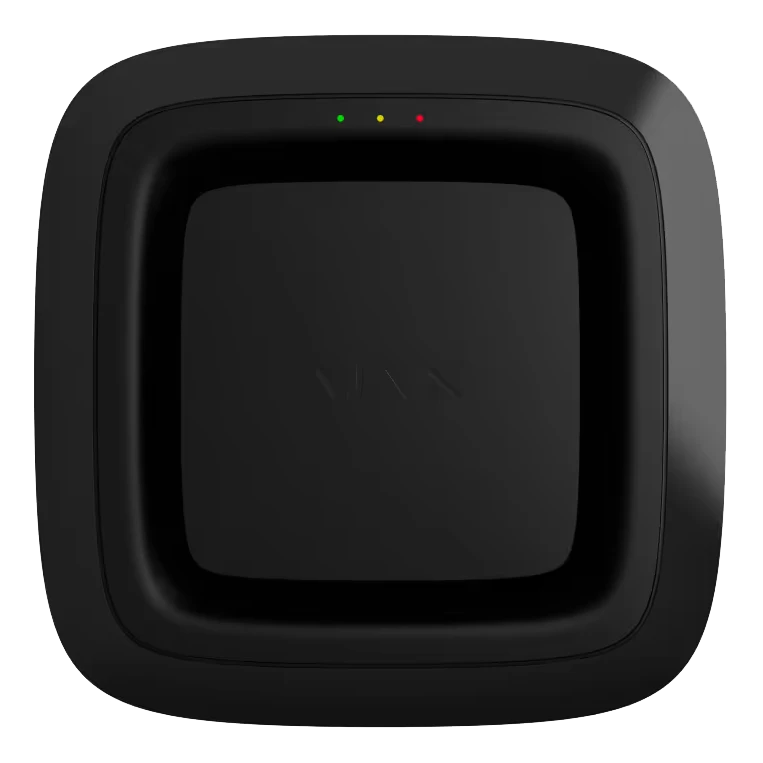

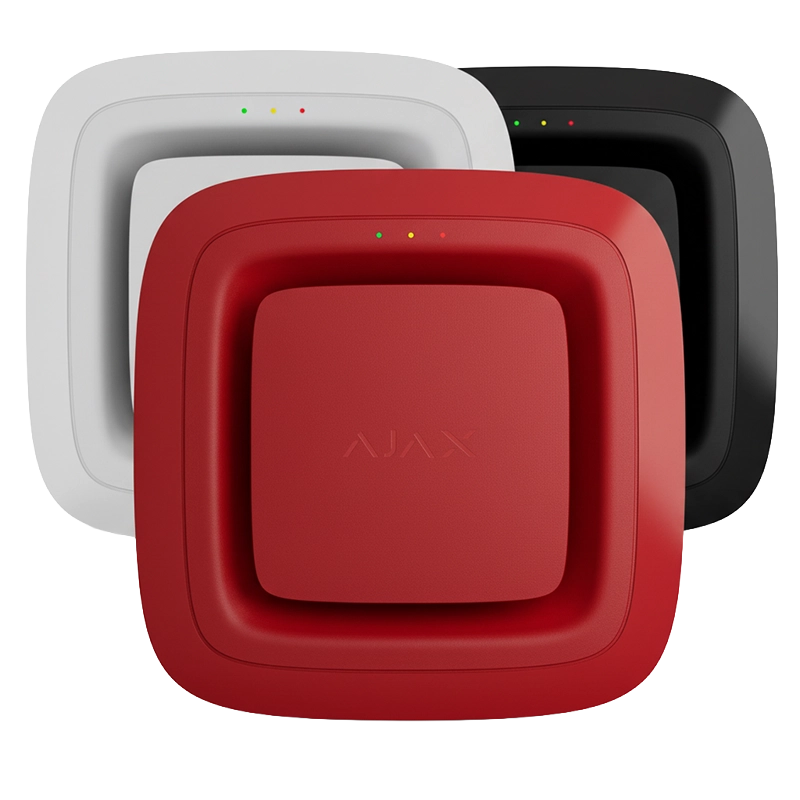

- Available in white, black, and red colour options
- SmartBracket mounting panel for easy installation without disassembly
- Supports both wall and ceiling mounting configurations
- Up to 90° device rotation on mounting panel for optimal positioning
- Built-in radio communication via Jeweller protocol
- Wireless communication range up to 1,700m with CIE in open space
- Compatible with range extenders for extended coverage
- Device activation within 3 seconds after alarm trigger
- Smart radio technology with automatic power adjustment and connection loss detection
- Alarm synchronisation across all connected devices with VADs
- Up to 5 years battery life on pre-installed 4 × CR123A batteries
- Tool-free battery replacement without device enclosure disassembly
- Early low-battery notifications via Ajax apps
- QR code scanning for quick device addition to CIE
- Configuration and testing through Ajax mobile applications
- Real-time device monitoring and status updates
- Optional lock on SmartBracket to prevent device removal
- IP54 protection class for reliable operation
- Operating temperature range from -10°C to +50°C
- Operating humidity tolerance up to 80%
FAQs
What sound output level does the fire alarm sounder provide?
The EN54 FireProtect (Sounder) Jeweller delivers 100dB sound output at 1m distance, ensuring effective audible notification in fire emergency situations whilst maintaining EN54 compliance.
How many different alarm tones are available?
The sounder offers 32 selectable tones, providing flexibility to meet different building requirements, user preferences, and regulatory compliance needs.
How long do the batteries last in the sounder?
The fire alarm sounder offers up to 5 years of battery life using pre-installed 4 × CR123A batteries, with early low-battery notifications provided through Ajax apps.
Can I replace the batteries without removing the device?
Yes, the device features tool-free battery replacement without requiring disassembly of the device enclosure, ensuring continuous fire protection during maintenance procedures.
What mounting options are available for the sounder?
The device supports both wall and ceiling mounting using the SmartBracket mounting panel, with up to 90° device rotation capability for optimal acoustic positioning.
How quickly does the sounder activate during a fire alarm?
The device activates within 3 seconds after receiving an alarm signal, providing rapid audible notification to ensure swift occupant response in emergency situations.
What wireless range can I expect from the sounder?
The device offers wireless communication range up to 1,700m with the CIE in open space, with options to extend coverage using range extenders sold separately.
Is the sounder suitable for harsh environments?
The sounder has IP54 protection class and operates in temperatures from -10°C to +50°C with up to 80% humidity, making it suitable for various indoor and some protected outdoor environments.
Specifications
- Device Type: Wireless addressable fire alarm sounder
- Standards Compliance: EN54-3, EN54-23, EN54-25, Directive 2014/53/EU (RED)
- Sound Output: 100dB at 1m distance
- Sound Patterns: 32 selectable tones
- Alarm Synchronisation: Across all connected devices with VADs connected to same CIE
- Communication Technology: Jeweller wireless protocol
- Frequency Bands: 866.0-866.5 MHz, 868.0-868.6 MHz, 868.7-869.2 MHz, 905.0-926.5 MHz, 915.85-926.5 MHz, 921.0-922.0 MHz
- Maximum Effective Radiated Power: Up to 20 mW
- Communication Range: Up to 1,700m in open space
- Device Activation Time: Within 3 seconds after alarm
- Power Supply: 4 × CR123A batteries (pre-installed)
- Battery Life: Up to 5 years
- Mounting Options: Wall and ceiling mount with SmartBracket
- Device Rotation: Up to 90° on SmartBracket mounting panel
- Colour Options: White, black, red
- Dimensions: 145 × 145 × 51mm
- Weight: 509g for EN54 FireProtect (Sounder) Jeweller
- Protection Class: IP54
- Operating Temperature Range: -10°C to +50°C
- Operating Humidity: Up to 80%
- Installation: Tool-free with QR code device addition
- Battery Replacement: Tool-free without enclosure disassembly
