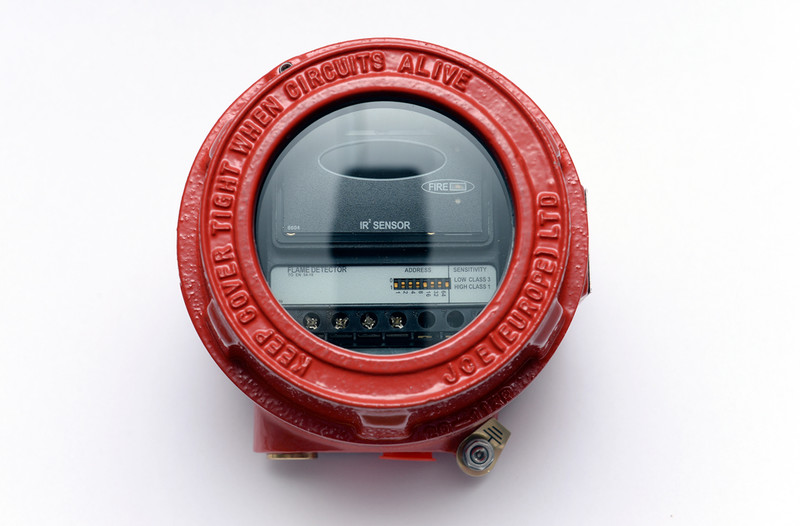

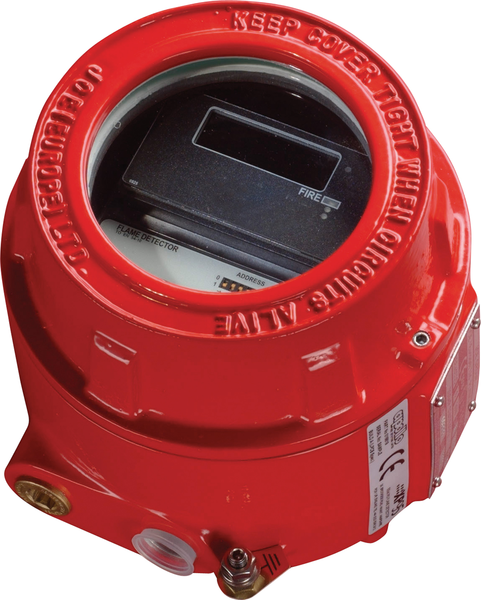

Apollo Flameproof Intelligent IR2 Flame Detector
£1,410.50 (inc VAT: £1,692.60)
Summary
The Intelligent Flameproof IR2 Flame Detector is specifically designed for hazardous environments in indoor applications. It features two sensors that respond to different infrared wavelengths, allowing it to effectively discriminate between actual flames and spurious sources of radiation. This detector is BASEEFA approved and complies with the ATEX Directive 2014/34/EU, making it suitable for use in potentially explosive atmospheres.
Features
- Class 1 sensitivity to EN54-10 detects 0.12m² fire at 25 m
- Highest optical interference immunity
- Detects through films of oil, dust, water, and ice
- Responds to flickering flames, including those invisible to the naked eye
- Remote optical self-test function
- 90º field of view
- Up to 40 m coverage
Specifications
- Supply Voltage: 17 – 28 V dc
- Digital Communication: XP95 and Discovery compatible
- Quiescent Current: 2.2 mA
- Maximum Power-Up Time: 2 seconds
- Remote LED Current: Limited to 2 mA
- Range Of View: 0.1 m² n-heptane at 25 m, 0.2 m² n-heptane at 35 m, 0.4 m² n-heptane at 45 m
- Field Of View: 90º cone
- Spectral Response: 1.0 to 2.7 μm
- Sensitivity (EN 54-10): High – Class 1, Low – Class 3
- Operating Temperature: -10ºC to +55ºC
- Storage Temperature: -20ºC to +65ºC
- Humidity: 0% to 95% RH (no condensing or icing)
- IP Rating: IP66
- Use: Indoor use only
- Standards And Approvals: EN 54-10, LPCB, CCS, IECEx, and BASEEFA
- BASEEFA Certificate No.: 08ATEX0270
- Dimensions: 150 mm diameter x 137 mm deep
- Weight: 2.5 kg
- Materials: Copper-free aluminium alloy LM25
- Housing Colour: Red
- Cable Gland Entries: 3 x 20 mm
Downloads
- Datasheet (Adobe PDF)
- Datasheet – Hazardous Area Devices (Adobe PDF)
Additional information
| Weight | 2.5 kg |
|---|---|
| System Type | |
| Device Type | |
| Detection Type | |
| Wavelength | IR2 |
| Hazardous Applications |
