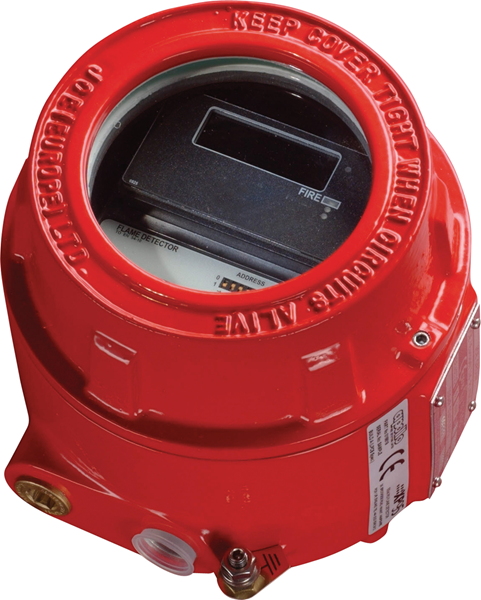

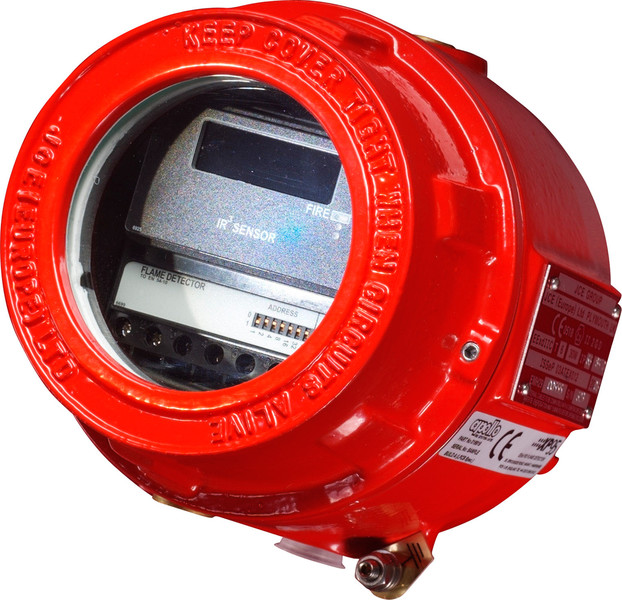

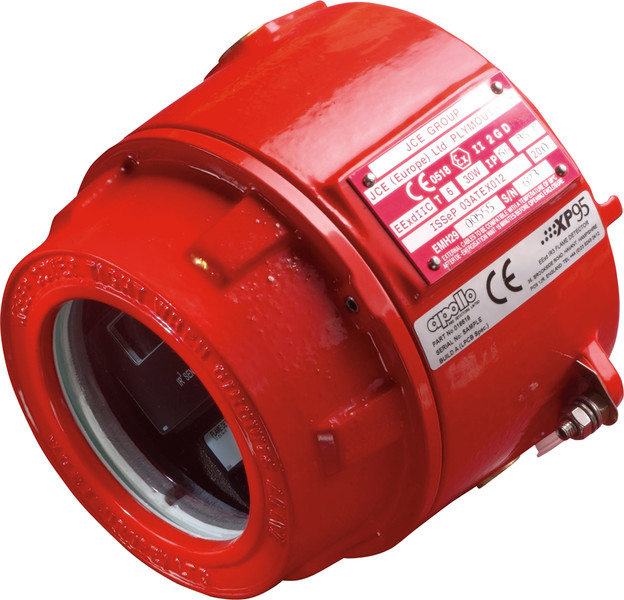

Apollo Intelligent Flameproof IR3 Flame Detector
£2,567.35 (inc VAT: £3,080.82)
Summary
The Apollo 55000-021 Intelligent (Exd) Flameproof IR3 Flame Detector is engineered for hazardous environments, offering reliable flame detection for both indoor and outdoor applications. This advanced detector is sensitive to low-frequency, flickering infra-red radiation emitted by flames, ensuring prompt and accurate detection. It is certified to meet stringent safety standards, including ATEX and CENELEC/IEC, making it suitable for use in potentially explosive atmospheres.
Features
- Responds to flickering flames, including those invisible to the naked eye
- Detects through films of oil, dust, water and ice
- Class 1 sensitivity to EN54-10 detects 0.12m² fire at 25 m
- Digital communication compatible with XP95 and Discovery
- Designed for use in hazardous environments
- Indoor and outdoor use
Specifications
- Supply Voltage : 17 – 28 V dc
- Quiescent Current : 2.2 mA
- Maximum Power-Up Time : 2 seconds
- Remote LED Current : Limited to 2 mA
- Range Of View : 0.1 m² n-heptane at 25 m, 0.2 m² n-heptane at 35 m, 0.4 m² n-heptane at 45 m
- Field Of View : 90º cone
- Spectral Response : 0.75 to 2.7 μm
- Sensitivity (EN 54-10) : High – Class 1, Low – Class 3
- Operating Temperature : -10°C to +55°C
- Storage Temperature : -20°C to +65°C
- Humidity : 0% to 95% RH (no condensing or icing)
- IP Rating : IP66
- Standards And Approvals : EN 54-10, LPCB, IECEx and BASEEFA
- BASEEFA Certificate No. : Baseefa08ATEX0270
- Dimensions : 150 mm diameter x 137 mm deep
- Weight : 2.5 kg
- Materials : Copper-free aluminium alloy LM25
- Housing Colour : Red
- Cable Gland Entries : 3 x 20 mm
Downloads
- Datasheet (Adobe PDF)
- Installation Guide (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| System Type | |
| Device Type | |
| Detection Type | |
| Hazardous Applications | |
| Wavelength | IR3 |
