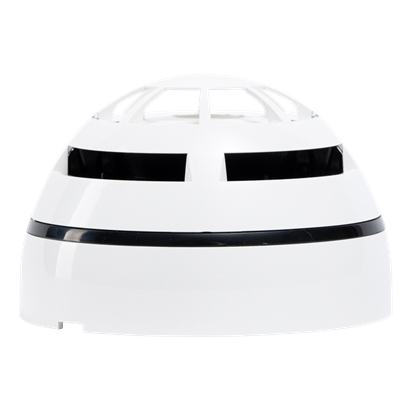

Apollo REACH Heat Detector
Summary
The REACH Wireless Heat Detector is a state-of-the-art device designed for reliable fire detection in various environments. With its advanced features and robust design, it ensures optimal safety and performance. This heat detector can be configured for either rate-of-rise or static temperature detection, making it versatile for different applications. Its wireless communication capabilities enhance installation flexibility, while the long battery life ensures minimal maintenance.
Features
- Single NTC thermistor detection principle
- Programmable for rate-of-rise (A1R) or static temperature (BS)
- Twin alarm with bi-colour LEDs for 360° visibility
- Communication range of 100 m in open space
- 22 pairs of field device radio frequency channels
- Operating temperature range of -10°C to +55°C
- Maximum relative humidity of 95% (non-condensing)
- IP rating of 40 for dust and water resistance
- Dimensions of 110 mm diameter x 70 mm height
- Weight of 190 g including base and batteries
Specifications
- Product Name : REACH Wireless Heat Detector
- Part Number : RW1000-400APO / RW1000-460APO
- Battery Type : 2x VARTA CR123A Lithium 3 V, 1250mAh
- Battery Lifespan : 10 Years
- Operating Temperature : -10°C To +55°C
- Maximum Relative Humidity : 95%
- IP Rating : 40
- Dimensions : 110 Mm Diameter X 70 Mm Height
- Weight : 190 G
- Radiated Power : 14 dBm (25 mW)
Downloads
- Datasheet (Adobe PDF)
