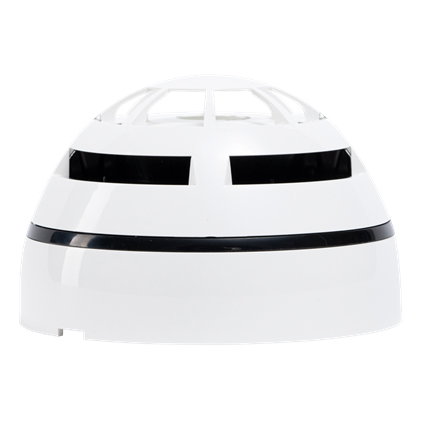

Apollo REACH Optical Smoke Detector
Summary
The REACH Wireless Optical Smoke Detector is an advanced fire detection device designed to provide reliable performance in various environments. Utilizing dual-optical smoke detection technology, it minimizes false alarms while ensuring effective smoke detection. This wireless detector is easy to install and maintain, making it an ideal choice for both residential and commercial applications.
Features
- Photo-electric detection of light scattered by smoke particles
- Twin alarm with bi-colour LEDs for 360° visibility
- Communication range of 100 m in open space
- 22 pairs of field device radio frequency channels
- Operating temperature range of -10°C to +55°C
- Maximum relative humidity of 95% (non-condensing)
- IP rating of 40 for dust and water resistance
- Dimensions of 110 mm diameter x 70 mm height
- Weight of 190 g including base and batteries
- Radiated power of 14 dBm (25 mW)
Specifications
- Product Name : REACH Wireless Optical Smoke Detector
- Part Number : RW1000-600APO / RW1000-660APO
- Battery Type : 2x VARTA CR123A Lithium 3 V, 1250mAh
- Battery Lifespan : 10 Years
- Operating Temperature : -10°C To +55°C
- Maximum Relative Humidity : 95%
- IP Rating : 40
- Dimensions : 110 Mm Diameter X 70 Mm Height
- Weight : 190 G
- Radiated Power : 14 dBm (25 mW)
