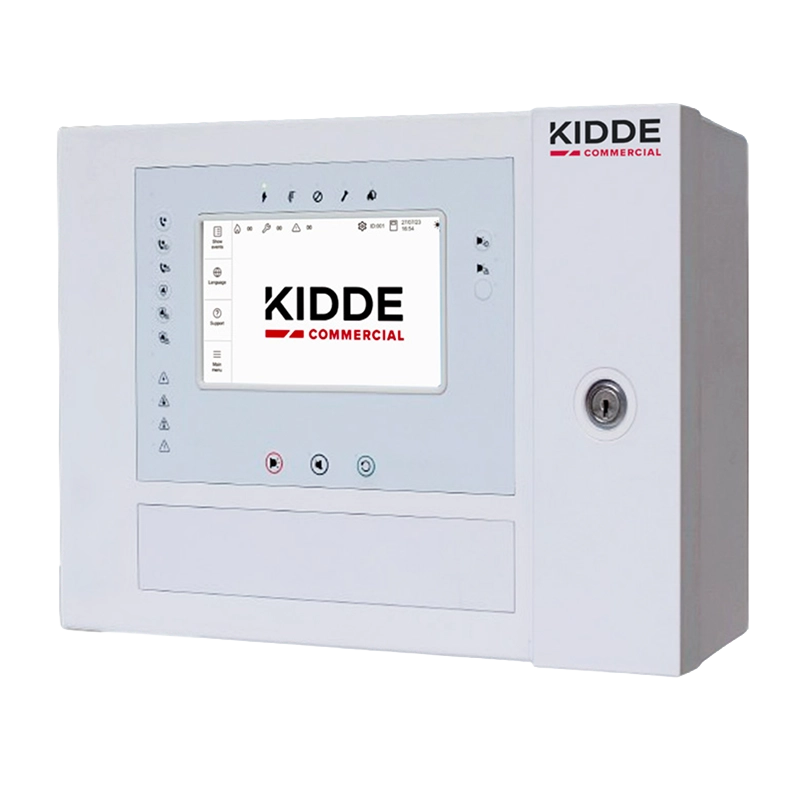

EMS FireCell FC-2X-AT-FR-FB-S-99 | 2X-A Touchscreen Repeater | Network Card Included, Small Cabinet

FAQs

What are the advantages of the touchscreen interface?

The 7″ touchscreen provides a significantly more intuitive user experience compared to traditional button and jog dial interfaces. Touch-based navigation allows faster access to system information, simplified alarm acknowledgment, and easier navigation through menus and system status screens. The graphical interface can display more information simultaneously, including visual representations of alarm locations, system status summaries, and interactive zone maps. This makes the touchscreen repeater particularly valuable in high-traffic locations where multiple personnel may need to interact with the fire system, or where quick comprehension of system status is critical during emergency situations.

Is the touchscreen model compatible with existing 2X-A networks?

Yes, the touchscreen repeater panel is fully compatible with existing 2X-A networks and uses the same FC-2010-2-NB network board as standard repeater panels. It integrates seamlessly with other 2X-A control panels, standard repeater panels, and conventional panels on the same network. The touchscreen interface is purely a local enhancement to user interaction and does not affect network communications or compatibility. This allows system designers to specify touchscreen repeaters for high-visibility locations whilst using standard repeaters elsewhere, maintaining consistent network functionality across the entire installation.

Can the touchscreen be customised for specific installations?

The touchscreen interface is supplied in local language and follows standard FireCell user interface conventions for fire brigade controls and fire protection functions. Whilst the core interface follows EN54 certification requirements and cannot be fundamentally altered, the system can display customised zone names and descriptions configured through the Configuration Utility software. The optional 24 zone LED indicator board provides additional customisation through physical text labels, complementing the touchscreen’s digital display with permanent visual zone identification.

What is the difference between this model and FC-2X-AFR-FB-S-99?

The FC-2X-AT-FR-FB-S-99 (touchscreen model) differs from FC-2X-AFR-FB-S-99 (standard model) solely in the user interface. The touchscreen version features a 7″ touch display providing intuitive graphical navigation, whilst the standard version uses traditional buttons and a robust jog dial for control. All other specifications are identical: both models include the same power supply, network board, input/output configuration, battery capacity, physical dimensions, and EN certifications. The choice depends on whether the enhanced user experience and modern interface of the touchscreen justify the additional cost for the specific installation location.

Does the touchscreen require special maintenance?

The 7″ touchscreen is designed for reliable long-term operation in life safety applications and requires minimal maintenance beyond periodic cleaning with appropriate screen cleaning solutions. The screen should be cleaned gently with non-abrasive cloths to maintain clarity and touch sensitivity. Unlike traditional button interfaces that can wear or become stuck over time, touchscreen interfaces have no moving parts in the display area, potentially offering improved long-term reliability. The panel maintains the same easy electronics removal feature as other 2X-A models, facilitating any required servicing or component replacement.

Can the panel function if the touchscreen fails?

Whilst the touchscreen is the primary user interface, the panel maintains core fire safety monitoring and alarm functionality independent of the display. In the unlikely event of touchscreen failure, the panel continues to monitor network status, activate fire and fault outputs according to programmed cause and effect logic, and maintain battery backup operations. However, local user interaction and control functions would be compromised until the touchscreen is serviced. For critical locations requiring guaranteed local control capability, specifying redundant repeater panels or combining touchscreen models with standard repeaters at different locations provides operational resilience.

Where is the touchscreen repeater panel most commonly specified?

Touchscreen repeater panels are typically specified for high-visibility, frequently accessed locations where modern aesthetics and ease of use are priorities. Common applications include main building reception areas, security control rooms, facility management offices, and main fire brigade entry points. The intuitive interface particularly benefits locations with multiple operators, shift-based staffing, or where personnel may be unfamiliar with traditional fire panel controls. In contrast, standard repeater panels with jog dial controls often prove more suitable for back-of-house locations, secondary monitoring points, or environments where robustness and simplicity outweigh interface sophistication.
