Hochiki ESP Addressable Weatherproof Heat Detector
£54.61 (inc VAT: £65.53)
Summary

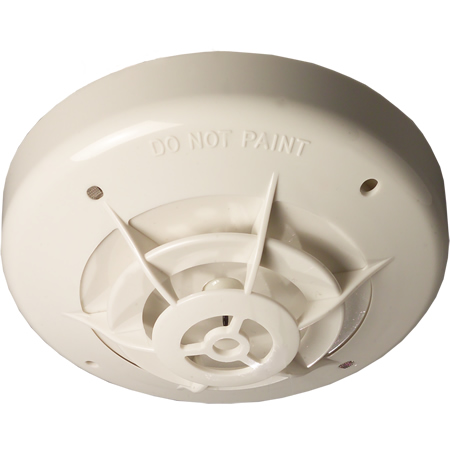

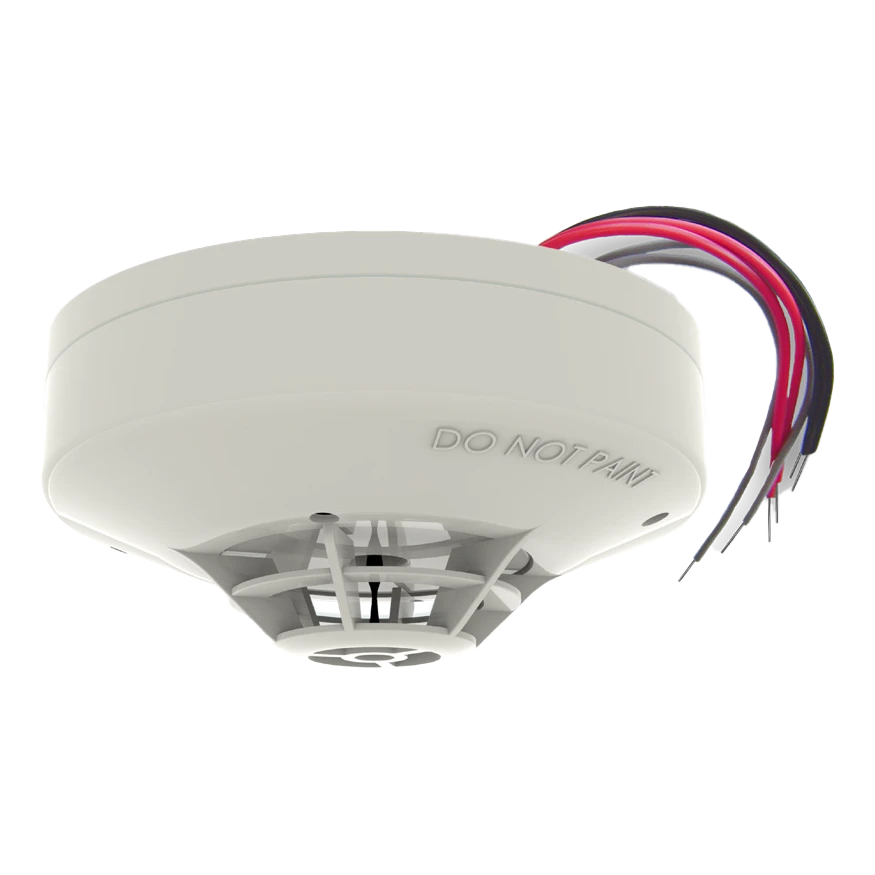

The Hochiki ACB-EW is a robust, waterproof multi-heat sensor designed for challenging environments. Fully compatible with Hochiki’s ESP Analogue Addressable Protocol, this sensor features both fixed temperature and rate of rise heat elements, providing flexible and reliable fire detection. Rated to IP67, the ACB-EW is ideal for external use, ensuring durability and performance in harsh conditions. It comes with a dedicated fixing base and offers user-selectable modes, making it a versatile choice for various safety applications.
Key Features
- User selectable modes
- Incorporates fixed temperature and rate of rise heat elements
- Twin fire LEDs allow 360° viewing
- Pulsing/non-pulsing controlled from panel
- Electronically addressed
- IP67 rated
- Supplied with fixing base
- LPCB & VdS approved to Classes A, B & C
Specifications
- Ordering Code : ACB-EW
- Operating Voltage : 17-41 VDC
- Low Power Mode : 110 μA (typ.)
- Quiescent Current : 350 μA (typ.)
- Alarm Current (Controlled by CIE) : 9.1mA (excluding remote indicator)
- Transmission Method : Digital Communications Using ESP
- Operating Temperature Range : -10 °C to +50 °C
- Storage Temperature Range : -30 °C to +70 °C
- Maximum Humidity : 95% RH – Non Condensing (at 40 °C)
- Ingress Protection Rating : IP67
- Colour / Case Material : Ivory/ Polycarbonate
- Weight : 100 g
- Diameter / Height : 100 mm / 46 mm
- Compatible Bases : Supplied base only
- Base Fixing Centres : 48 – 74 mm
Downloads
- Datasheet (Adobe PDF)
