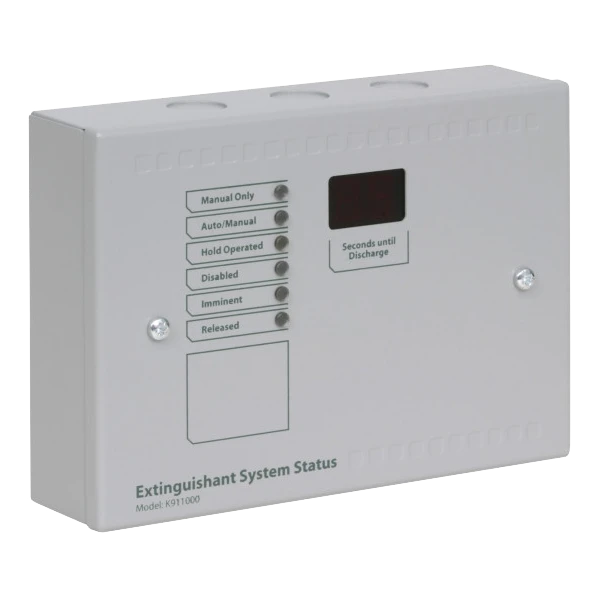

Kentec Sigma SI Extinguishant Status Indicator
Summary
The Kentec Sigma Si Extinguishant Status Indicators provide comprehensive remote monitoring and control capabilities for the industry-leading Sigma XT extinguishing systems. These sophisticated status units deliver detailed indication of control panel status through high brightness LEDs, ensuring operators can monitor critical fire suppression system conditions from strategic locations throughout protected facilities.
Certified compliant with BS EN12094-1 when used with Sigma XT control equipment, the Sigma Si range offers outstanding reliability and performance for small to medium fixed firefighting installations. The units feature monitored data connections, countdown timers showing time remaining until extinguishant release, and comprehensive status indication covering fire zones, faults, system modes, and release conditions.
Available in multiple configurations ranging from basic 6-lamp status units to advanced 10-lamp units with integrated manual release and mode select capabilities, the Sigma Si range accommodates diverse installation requirements. With both standard IP30 and weatherproof IP65 versions available, these robust units provide flexible deployment options whilst maintaining the high build quality and ease of installation that characterises the entire Sigma XT system family.
Features
- BS EN12094-1 certified compliance when used with Sigma XT control equipment
- High brightness LED indicators for excellent visibility in all lighting conditions
- Detailed indication of control panel status across multiple system parameters
- Monitored four-wire data connection (data and power) with RS485 communication
- Real-time countdown timer displaying time remaining until extinguishant release
- Manual only and automatic/manual mode select keyswitch options
- Protected dual action manual release switch capability
- Zonal fire and common fault indication with integrated buzzer
- Remote auto/manual door interlock input (monitored)
- Remote Hold input functionality (monitored)
- Internal fault diagnosis indicators for comprehensive system monitoring
- Internal buzzer for audible alarm indication
- Multiple configuration options from 6-lamp to 10-lamp status units
- Weatherproof IP65 versions available for harsh environment applications
- Up to 7 status units can be connected per system
- Maximum 1200-metre cable run capability for extensive installations
- Robust 1.2mm mild sheet steel construction
- Professional grey finish (BS 00 A 05) matches system aesthetics
- Easy access to terminals for simplified installation and maintenance
- Low power consumption with 21-30V DC operation
FAQ
How many Sigma Si status units can be connected to one control panel?
Up to 7 Sigma Si status units can be connected to a single Sigma XT control panel using the two-wire RS485 data connection, with a maximum total cable length of 1200 metres from the control panel to the last status unit.
What is the difference between the various Sigma Si models?
The range includes 6-lamp and 10-lamp versions. Basic units (K9110000M8) provide status indication only, whilst advanced models add mode select keyswitches (K911100M8), manual release capability (K911010M8), or both functions combined (K911110M8/W911113M8).
Are weatherproof versions available?
Yes, IP65 weatherproof versions are available across the range with model codes beginning with ‘W’. These units feature larger enclosures (256 x 170 x 60mm) and are suitable for harsh environmental conditions whilst maintaining full functionality.
What status information do the units display?
The units display comprehensive system status including fire zone conditions (zones 1-3), fault indications, released status, imminent discharge, disabled conditions, hold activated status, and auto/manual mode indication. 10-lamp units provide additional zonal fire indication.
How does the countdown timer function work?
The integrated countdown timer displays the time remaining until extinguishant release, providing clear visual indication during the pre-discharge warning period. This allows personnel to monitor the countdown and take appropriate evacuation or abort actions if necessary.
Can the manual release function be used independently?
Units equipped with manual release capability (K911010M8, K911110M8, W911113M8) feature protected dual action manual release switches that can initiate extinguishant discharge independently of the main control panel, providing essential backup release capability.
Specifications
- Construction: 1.2mm mild sheet steel
- IP Rating Standard Box: IP30
- IP Rating Waterproof Unit: IP65
- Colour: BS 00 A 05 grey – fine texture
- Weight: 1kg (all units)
- Power Supply: 21 to 30V DC
- Maximum Current Draw: 0.07A
- Quiescent Current: 0.033A
- Maximum Number Of Status Units: 7
- Cable Capacity: 2.5mm² per terminal
- Monitored Inputs End Of Line Resistor: 6K8 0.5W Resistor
- Monitored Inputs Normal Threshold: 8K ohm to 1K ohm
- Monitored Inputs Trigger Threshold: 700 ohms to 100 ohms
- Monitored Inputs Short Circuit: 99 ohms to 0 ohms
- Data Connection: Two wire RS485 connection (max 1200 metres)
- Operating Temperature Range: -15°C to +35°C
- Available Models: K9110000M8 (6 lamp), K911100M8 (6 lamp + mode), K911010M8 (6 lamp + manual), K911110M8 (6 lamp + mode + manual), W911113M8 (10 lamp + mode + manual)
- Weatherproof Models: W911000W8, W911100W8, W911110W8, W911113W8
- Standard Dimensions: 190 x 136 x 50mm
- Weatherproof Dimensions: 256 x 170 x 60mm
- LED Type: High brightness LEDs
- Communication: RS485 monitored data connection
- Certification: BS EN12094-1 certified when used with Sigma XT equipment
- Connection: Four wire connection (data and power)
Downloads
- Datasheet (Adobe PDF)
Additional information
| Weight | 1 kg |
|---|---|
| Enclosure | Indoor, Weatherproof |
| Status LEDs | 6, 10 |
| Manual Release | No, Yes |
| Mode Keyswitch | No, Yes |
