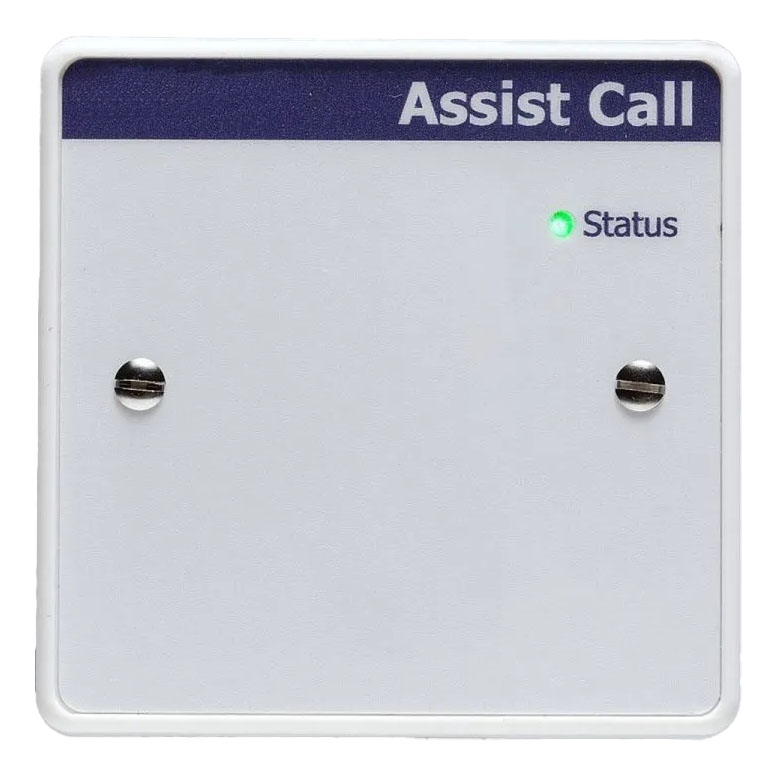

Lexicomm AssistCall Switch Interface Plate in White

FAQ

What types of third-party devices can be connected to the Switch Interface Plate?

The ViAC-SIP-W can connect various third-party contacts including switch strips, micro switches on doors or medical cabinets, panic alarms, staff alarms in health centers or gyms, emergency exit door sensors, and other normally open or normally closed contact devices.

What do the different LED colours indicate on the Switch Interface Plate?

The status LED indicates: Green – SIP is healthy and idle; Blue or Red (configurable) – SIP is activated; Flashing Blue or Red – SIP is activated but pending cancellation; Yellow – Short circuit fault detected; Flashing Yellow – Open circuit fault detected.

What are the four dipswitch settings and what do they control?

The four dipswitch settings control: 1) Momentary/Latching operation mode; 2) Off/Monitored for circuit fault detection; 3) NO (Normally Open)/NC (Normally Closed) contact type; 4) Red/Blue LED colour selection when activated.

Why must the Switch Interface Plate be the last device on the circuit?

The ViAC-SIP-W must be positioned as the last device on the AssistCall circuit for proper operation and to ensure correct system functionality. This is a technical requirement for the device’s integration with the overall AssistCall system.

What is the difference between momentary and latching operation modes?

In momentary mode, the alarm activates when the contact changes state and deactivates when it returns to normal. In latching mode, the alarm remains active until a cancel command is received from a cancel plate or ViAC-ACT, plus the contact must return to its normal state.

Can the Switch Interface Plate detect wiring faults?

Yes, when set to “Monitored” mode via dipswitch 2, the device can detect open circuit and short circuit conditions. Short circuits illuminate the LED yellow, while open circuits cause the LED to flash yellow. Both faults display as open circuit faults on the control module.

What consultation is required before installing Switch Interface Plates?

Installation should be planned in consultation with the Vox Ignis technical department for guidance on integration with other AssistCall components and to ensure proper system configuration for the specific application requirements.
