Lexicomm AssistCall Accessible Bedroom System Kit in White
£206.25 (inc VAT: £247.50)
Summary
The Vox Ignis AssistCall Accessible Bedroom Kit (ViAC-ACB-W) provides the perfect solution for hotels, student accommodation and residential accommodation requiring a fully compliant emergency assistance alarm system. Designed to meet Part M of the Building Regulations, which requires a ratio of 1 wheelchair accessible bedroom per 20 bedrooms, this comprehensive white polycarbonate kit ensures complete compliance with accessibility standards.
The kit includes all components required for a typical accessible bedroom application as recommended within Building Regulations Document M (Access for the Disabled) and BS 8300-2:2018. The system features pull cords and cancel plates strategically positioned by the bed, shower and toilet areas, along with an over-door indicator for corridor visibility. The ViAC-ACB-W is compatible with Lexicomm LX228, Lexicomm Network and AssistCall standalone range of controllers, providing flexible integration options for centralized emergency monitoring.
Features
- Complete boxed solution with all required components
- BS8300 acknowledge feature for reassurance feedback
- Fully compliant to Part M and BS8300-2:2018 standards
- Provides central indication capability
- Flush or surface mounting options
- Braille enhanced cancel button for accessibility
- White polycarbonate finish for clean aesthetic
- Compatible with Lexicomm LX228 and Network systems
- Compatible with AssistCall standalone controllers
- Alternating tone and flashing blue indication when activated
- Double beep confirmation every 15 seconds after acknowledgment
- Simple two-core wiring in any order
- Includes mounting screws and installation materials
- Assist Call fitted sticker and operating instructions included
FAQ
What components are included in the ViAC-ACB-W kit?

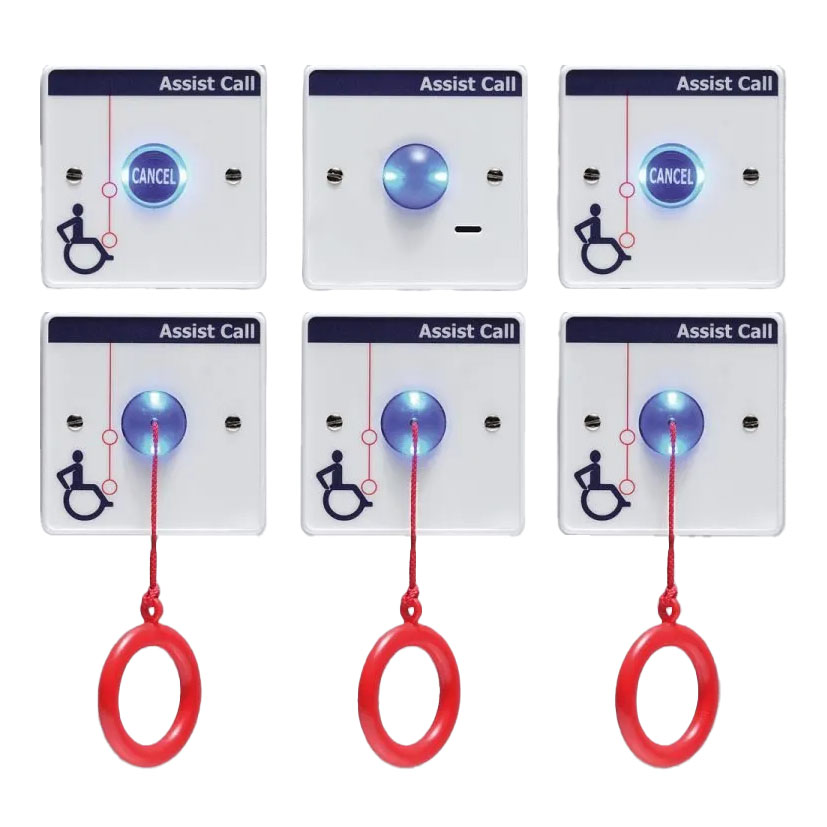

The kit includes 3x pull cords (ViAC-CPP-W), 2x cancel plates (ViAC-CNP-W), 1x over door indicator (ViAC-ODP-W), installation instruction sheets, accessory pack with 12 device mounting screws, 1x “Assist Call fitted” sticker, and 2x “Assist Call Operating Instructions” cards.
How does the system operate when a pull cord is activated?
When a pull cord is activated, the blue indicator illuminates on that pull cord, buzzers sound and both the cancel plates and over-door indicator flash. After system acknowledgment, the indicators change from flashing to steady illumination with a double beep tone every 15 seconds to reassure the occupant that help is on the way.
What are the specific positioning requirements for accessible bedrooms?
For toilet areas: pull cord positioned behind the handrail, level with the front of the toilet, with bottom ring 100mm from floor. Cancel plate placed above handrail at 1000mm height. For bedroom: pull cord positioned to be operated from bed and adjacent floor area. Cancel located for operation from bed or wheelchair area.
What back boxes are required for installation?
The ViAC-ACB-W components mount onto 25mm UK single gang back boxes and are compatible with any “MK” style single back-box over 25mm deep. For cable glands, the back box needs to be 35mm deep, including metal clad surface types and plastic plasterboard dry liner boxes.
Can the system be reset remotely?
No, the system can only be reset by pressing one of the physical cancel buttons located in the room. This ensures proper acknowledgment and verification that assistance has been provided.
What cable types and distances are supported?
The system supports PVC or fire rated 2 core 1mm cable up to 500m distance, or Cat5/6 cable with 1 pair 0.22mm up to 50m distance (2 pairs up to 100m). All wiring should comply with BS 7671 (Wiring Regulations) with ELV wiring segregated from mains wiring.
Is the system compatible with existing Lexicomm systems?
Yes, the ViAC-ACB-W is compatible with Lexicomm LX228, Lexicomm Network range of disabled refuge and fire telephone systems, as well as AssistCall standalone 4 Zone and 1 Zone controllers for centralized emergency assistance monitoring.
Specifications
- Height : 86mm
- Width : 86mm
- Visible Plate Depth : 12mm
- Weight : 360g
- Material : White polycarbonate
- Cable Type PVC : 2 core 1mm
- Cable Distance PVC : 500m
- Cable Type Cat5/6 Single Pair : 1 x pair 0.22mm
- Cable Distance Cat5/6 Single Pair : 50m
- Cable Type Cat5/6 Dual Pair : 2 x pair 0.22mm
- Cable Distance Cat5/6 Dual Pair : 100m
- EMC Compliance : EN 55035:2017+A11:2020, EN 55032:2015+A1:2020
- LVD Compliance : EN IEC62368-1:2020+A11:2020
- Product Family Standards : BS 8300-2:2018, BS 5839-9:2021
- Kit Part Number : ViAC-ACB-W
- Over Door Part Number : ViAC-ODP-W
- Cancel Plate Part Number : ViAC-CNP-W
- Pull Cord Part Number : ViAC-CPP-W
- Call Button Part Number : ViAC-CLP-W
- Call/Cancel Button Part Number : ViAC-CCP-W
- Ancillary Cancel Button Part Number : ViAC-ACP-W
- Switch Interface Plate Part Number : ViAC-SIP-W
- Document Reference : DViACACB0001-02
Additional information
| Weight | 1 kg |
|---|---|
| Device Type | |
| Colour |
